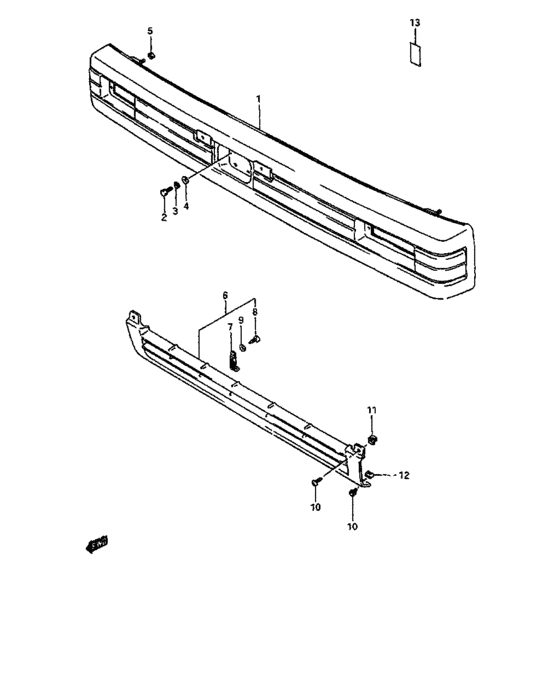

Front bumper (FRONT BUMPER) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71700-85200-000
BAR ASSY,FR BUMPER
|
71700-85200-000 |
— | ||
|
2
|
2
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
2
|
2
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
3
|
3
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
3
|
3
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
3
|
3
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
4
|
4
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
4
|
4
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
4
|
4
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
5
|
5
08316-16086-000
Nut, reverse lever pivot
|
08316-16086-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
6
|
6
72170-85000-281
Grille,fr,under
TYPE 1:TA |
72170-85000-281 |
— | ||
|
6
|
6
72170-85010-21L
グリル,フロント,アンダ(レッド)
TYPE 1:X |
72170-85010-21L |
— | ||
| replacement | |||||
|
6
|
6
72170-85010-000
GRILLE,FR UNDER
TYPE 1:X |
72170-85010-000 |
— | ||
|
6
|
6
72170-85010-21M
Grille, under
TYPE 1:X |
72170-85010-21M |
— | ||
| replacement | |||||
|
6
|
6
72170-85010-000
GRILLE,FR UNDER
TYPE 1:X |
72170-85010-000 |
— | ||
|
6
|
6
72170-85010-17A
グリル,フロント,アンダ(ホワイト)
TYPE 1:X |
72170-85010-17A |
— | ||
| replacement | |||||
|
6
|
6
72170-85010-000
GRILLE,FR UNDER
TYPE 1:X |
72170-85010-000 |
— | ||
|
6
|
6
72170-85010-09H
Grille, under
TYPE 1:X |
72170-85010-09H |
— | ||
| replacement | |||||
|
6
|
6
72170-85010-000
GRILLE,FR UNDER
TYPE 1:X |
72170-85010-000 |
— | ||
|
6
|
6
72170-85010-24U
グリル,フロント,アンダ(ブルーメタ)
TYPE 1:X |
72170-85010-24U |
— | ||
| replacement | |||||
|
6
|
6
72170-85010-000
GRILLE,FR UNDER
TYPE 1:X |
72170-85010-000 |
— | ||
|
6
|
6
72170-85010-18J
グリル,フロント,アンダ(シルバ)
TYPE 1:X |
72170-85010-18J |
— | ||
| replacement | |||||
|
6
|
6
72170-85010-000
GRILLE,FR UNDER
TYPE 1:X |
72170-85010-000 |
— | ||
|
6
|
6
72170-85010-24R
Grille, under
TYPE 1:X |
72170-85010-24R |
— | ||
| replacement | |||||
|
6
|
6
72170-85010-000
GRILLE,FR UNDER
TYPE 1:X |
72170-85010-000 |
— | ||
|
6
|
6
72170-85010-24T
グリル,フロント,アンダ(グリーン)
TYPE 1:X |
72170-85010-24T |
— | ||
| replacement | |||||
|
6
|
6
72170-85010-000
GRILLE,FR UNDER
TYPE 1:X |
72170-85010-000 |
— | ||
|
6
|
6
72170-85010-24N
グリル,フロント,アンダ(ベージュ)
TYPE 1:X |
72170-85010-24N |
— | ||
| replacement | |||||
|
6
|
6
72170-85010-000
GRILLE,FR UNDER
TYPE 1:X |
72170-85010-000 |
— | ||
|
6
|
6
72170-85010-26U
グリル,フロント,アンダ(ホワイト)
TYPE 2:TX |
72170-85010-26U |
— | ||
| replacement | |||||
|
6
|
6
72170-85010-000
GRILLE,FR UNDER
TYPE 2:TX |
72170-85010-000 |
— | ||
|
6
|
6
72170-85010-07T
Grille, under
TYPE 2:TX |
72170-85010-07T |
— | ||
| replacement | |||||
|
6
|
6
72170-85010-000
GRILLE,FR UNDER
TYPE 2:TX |
72170-85010-000 |
— | ||
|
6
|
6
72170-85010-37T
Grille, under
TYPE 2:TX |
72170-85010-37T |
— | ||
| replacement | |||||
|
6
|
6
72170-85010-000
GRILLE,FR UNDER
TYPE 2:TX |
72170-85010-000 |
— | ||
|
6
|
6
72170-85010-38C
グリル,フロント,アンダ(ブルー)
TYPE 2:TX |
72170-85010-38C |
— | ||
| replacement | |||||
|
6
|
6
72170-85010-000
GRILLE,FR UNDER
TYPE 2:TX |
72170-85010-000 |
— | ||
|
6
|
6
72170-85010-2AC
Grille, under
TYPE 2:TX: |
72170-85010-2AC |
— | ||
| replacement | |||||
|
6
|
6
72170-85010-000
GRILLE,FR UNDER
TYPE 2:TX: |
72170-85010-000 |
— | ||
|
6
|
6
72170-85010-2AE
Grille, under
TYPE 2:TX: |
72170-85010-2AE |
— | ||
| replacement | |||||
|
6
|
6
72170-85010-000
GRILLE,FR UNDER
TYPE 2:TX: |
72170-85010-000 |
— | ||
|
6
|
6
72170-85010-2AF
Grille, under
TYPE 2:TX: |
72170-85010-2AF |
— | ||
| replacement | |||||
|
6
|
6
72170-85010-000
GRILLE,FR UNDER
TYPE 2:TX: |
72170-85010-000 |
— | ||
|
6
|
6
72170-85010-2AG
Grille, under
TYPE 2:TX: |
72170-85010-2AG |
— | ||
| replacement | |||||
|
6
|
6
72170-85010-000
GRILLE,FR UNDER
TYPE 2:TX: |
72170-85010-000 |
— | ||
|
6
|
6
72170-85010-2GN
Grille, under
TYPE 2:TX: |
72170-85010-2GN |
— | ||
|
6
|
6
72170-85010-2GP
Grille, under
TYPE 2:TX: |
72170-85010-2GP |
— | ||
|
7
|
7
09404-04402-000
Clamp
|
09404-04402-000 |
— | ||
| replacement | |||||
|
7
|
7
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire |
09404-06429-000 |
from US $1.52 |
||
|
8
|
8
03111-04123-000
Screw
|
03111-04123-000 |
— | ||
| replacement | |||||
|
8
|
8
03111-0412A-000 SCREW |
03111-0412A-000 |
from US $3.04 |
||
|
9
|
9
08322-21043-000
Washer,4.5x10x0.8
|
08322-21043-000 |
— | ||
| replacements | |||||
|
9
|
9
08322-0104B-000 WASHERWasher, headlamp |
08322-0104B-000 |
from US $0.37 |
||
|
9
|
9
08322-0104A-000 WASHERWasher, cam rocker arm |
08322-0104A-000 |
from US $3.03 |
||
|
10
|
10
03142-05165-000
スクリュ
|
03142-05165-000 |
— | ||
| replacement | |||||
|
10
|
10
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
11
|
11
09148-05018-000 NUT |
09148-05018-000 |
US $0.91 |
||
|
12
|
12
09148-05020-000 NUT |
09148-05020-000 |
from US $0.91 |
||
|
13
|
13
72131-85000-000 SEAL,FR DOOR HINGE HOLE |
72131-85000-000 |
US $1.60 |
||
