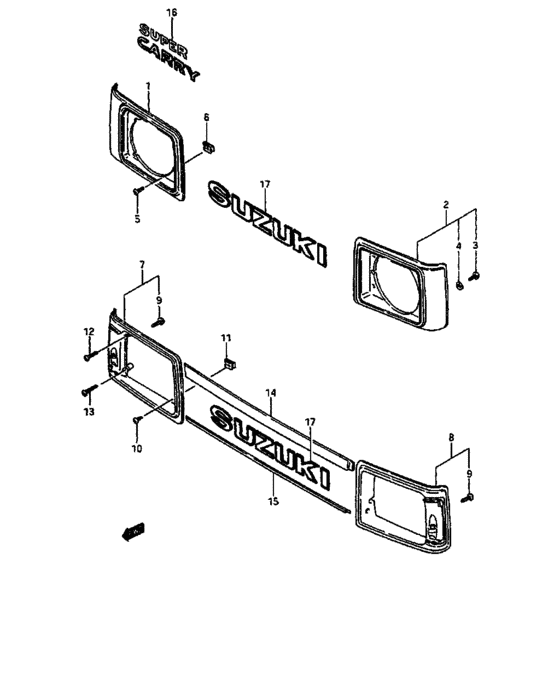

Front grille (TYPE 1) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72110-85000-291
Grille, headlamp rh
|
72110-85000-291 |
— | ||
| replacement | |||||
|
1
|
1
72111-85000-291
GRILLE,HEAD LAMP,R
|
72111-85000-291 |
— | ||
|
1
|
1
72110-85500-291
グリル,ヘッドランプ,ライト
|
72110-85500-291 |
— | ||
| replacement | |||||
|
1
|
1
72111-85500-291
Grille,headlamp,r(black)
|
72111-85500-291 |
— | ||
|
2
|
2
72120-85000-291
Grille, headlamp lh
|
72120-85000-291 |
— | ||
|
2
|
2
72120-85500-291
グリル,ヘッドランプ,レフト
|
72120-85500-291 |
— | ||
| replacement | |||||
|
2
|
2
72121-85500-291
GRILLE,HEAD LAMP,L
|
72121-85500-291 |
— | ||
|
3
|
3
03141-06106-000
Screw 6 x 10
|
03141-06106-000 |
— | ||
| replacement | |||||
|
3
|
3
03141-0610A-000 SCREW |
03141-0610A-000 |
US $0.80 |
||
|
4
|
4
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
4
|
4
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
5
|
5
03232-05125-000
スクリュ
|
03232-05125-000 |
— | ||
| replacement | |||||
|
5
|
5
03222-0512B-000 SCREW |
03222-0512B-000 |
US $0.80 |
||
|
6
|
6
09148-05003-000 NUT |
09148-05003-000 |
US $1.28 |
||
|
7
|
7
72111-85510-291
Grille, headlamp rh
TX |
72111-85510-291 |
— | ||
| replacement | |||||
|
7
|
7
72111-85510-000
Grille,headlamp,r
TX |
72111-85510-000 |
— | ||
|
7
|
7
72111-85530-291
Grille, headlamp rh
TX:, Norway, Switzerland, Belgium, Germany,,Holland, New Zealand, Austria, 8 |
72111-85530-291 |
— | ||
| replacement | |||||
|
7
|
7
72111-85510-000
Grille,headlamp,r
TX:, Norway, Switzerland, Belgium, Germany,,Holland, New Zealand, Austria, 8 |
72111-85510-000 |
— | ||
|
8
|
8
72121-85510-291
Grille, headlamp lh
TX |
72121-85510-291 |
— | ||
|
8
|
8
72121-85530-291
Grille, headlamp lh
TX:, Norway, Switzerland, Belgium, Germany,,Holland, New Zealand, Austria, 8 |
72121-85530-291 |
— | ||
|
9
|
9
03141-06106-000
Screw 6 x 10
|
03141-06106-000 |
— | ||
| replacement | |||||
|
9
|
9
03141-0610A-000 SCREW |
03141-0610A-000 |
US $0.80 |
||
|
10
|
10
03232-05125-000
スクリュ
|
03232-05125-000 |
— | ||
| replacement | |||||
|
10
|
10
03222-0512B-000 SCREW |
03222-0512B-000 |
US $0.80 |
||
|
11
|
11
09148-05003-000 NUT |
09148-05003-000 |
US $1.28 |
||
|
12
|
12
09125-05062-000
SCREW(5X45)
|
09125-05062-000 |
— | ||
|
13
|
13
09125-05063-000
スクリュ
|
09125-05063-000 |
— | ||
|
14
|
14
72151-85001-019
モールディング,フロントパネル,アッパ
TX, <-72151-85000-019 |
72151-85001-019 |
— | ||
|
15
|
15
72161-85501-019 MOLDING,FR PANEL LWRTX, <-72161-85000-019 |
72161-85501-019 |
US $43.20 |
||
|
16
|
16
77741-85200-69L
Emblem, supper carry
RED/BLACK |
77741-85200-69L |
— | ||
| replacement | |||||
|
16
|
16
77741-62C00-69L
EMBLEM,SUPR CARRY
RED/BLACK |
77741-62C00-69L |
— | ||
|
16
|
16
77741-85200-66P
Emblem, supper carry
RED/SILVER |
77741-85200-66P |
— | ||
| replacement | |||||
|
16
|
16
77741-62C00-66P
EMBLEM,SUPER CARRY
RED/SILVER |
77741-62C00-66P |
— | ||
|
17
|
17
77814-85201-000
Emblem, suzuki
|
77814-85201-000 |
— | ||
