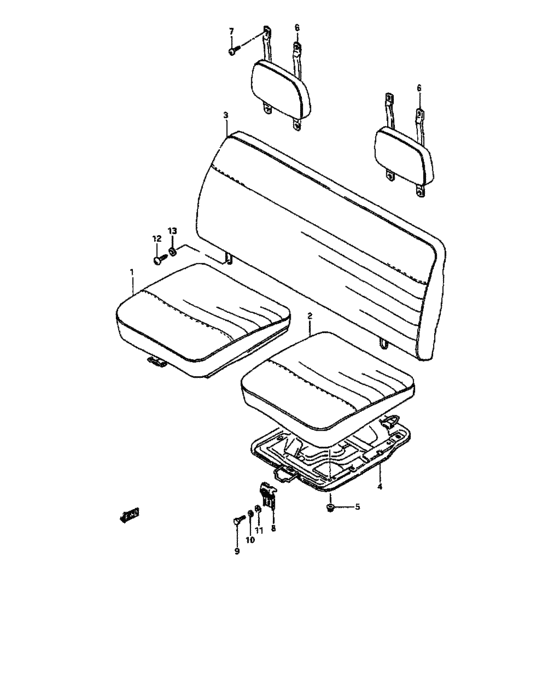

Front seat (K:TA:, Belgium, 5, Italy, Israel) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85101-85230-7WS
Cushion assy, rh
TYPE 1 |
85101-85230-7WS |
— | ||
|
1
|
1
85101-85230-7WV
Cushion assy, rh
TYPE 1 |
85101-85230-7WV |
— | ||
|
1
|
1
85101-85250-8FE
Cushion assy, rh
TYPE 1:Israel |
85101-85250-8FE |
— | ||
|
1
|
1
85101-85250-8FF
Cushion assy, rh
TYPE 1:Israel |
85101-85250-8FF |
— | ||
|
1
|
1
85101-85230-9WR
Cushion assy, rh
TYPE 2:Holland, Italy |
85101-85230-9WR |
— | ||
|
1
|
1
85101-85250-9WT
Cushion assy, rh
TYPE 2:Israel |
85101-85250-9WT |
— | ||
|
2
|
2
85102-85210-7WS
Cushion assy, lh
TYPE 1 |
85102-85210-7WS |
— | ||
|
2
|
2
85102-85210-7WV
Cushion assy, lh
TYPE 1 |
85102-85210-7WV |
— | ||
|
2
|
2
85102-85270-8FE
Cushion assy, lh
TYPE 1:Israel |
85102-85270-8FE |
— | ||
|
2
|
2
85102-85270-8FF
Cushion assy, lh
TYPE 1:Israel |
85102-85270-8FF |
— | ||
|
2
|
2
85102-85210-9WR
Back assy
TYPE 2:Holland, Italy |
85102-85210-9WR |
— | ||
|
2
|
2
85102-85270-9WT
Cushion assy, front seat lh
TYPE 2:Israel |
85102-85270-9WT |
— | ||
|
3
|
3
85301-85041-7WS
Back assy
TYPE 1 |
85301-85041-7WS |
— | ||
| replacement | |||||
|
3
|
3
85380-85042-7WT
Trim,fr seat back,r
TYPE 1 |
85380-85042-7WT |
— | ||
|
3
|
3
85301-85041-7WV
Back assy
TYPE 1 |
85301-85041-7WV |
— | ||
|
3
|
3
85301-85251-8FE
Back assy
TYPE 1:Israel |
85301-85251-8FE |
— | ||
|
3
|
3
85301-85251-8FF
Back assy
TYPE 1:Israel |
85301-85251-8FF |
— | ||
|
3
|
3
85301-85041-9WR
Back assy
TYPE 2:Holland, Italy |
85301-85041-9WR |
— | ||
|
3
|
3
85301-85251-9WT
Back assy, front seat rh
TYPE 2:Israel |
85301-85251-9WT |
— | ||
|
4
|
4
85910-85230-000
Panel, seat riser lh
|
85910-85230-000 |
— | ||
|
5
|
5
08316-26066-000
Nut 6mm
|
08316-26066-000 |
— | ||
| replacements | |||||
|
5
|
5
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
5
|
5
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
6
|
6
86401-85000-4GG
ヘッドレストレイントアッシ
TYPE 1 |
86401-85000-4GG |
— | ||
|
6
|
6
86401-85030-4GG
ヘッドレストレイントアッシ
TYPE 1,DA21T-100984~,JSAEDA21T00100088~ |
86401-85030-4GG |
— | ||
|
6
|
6
86401-85000-4GJ
ヘッドレストレイントアッシ
TYPE 1 |
86401-85000-4GJ |
— | ||
|
6
|
6
86401-85030-4GJ
ヘッドレストレイントアッシ
TYPE 1,DA21T-100984~,JSAEDA21T00100088~ |
86401-85030-4GJ |
— | ||
|
6
|
6
86401-85200-4JR
Headrestraint assy
TYPE 1:Israel |
86401-85200-4JR |
— | ||
|
6
|
6
86401-85200-4JS
Headrestraint assy
TYPE 1:Israel |
86401-85200-4JS |
— | ||
|
6
|
6
86401-85000-5CZ
ヘッドレストレイントアッシ(ブラウン)
TYPE 2 |
86401-85000-5CZ |
— | ||
|
6
|
6
86401-85200-5GR
Headrestraint assy
TYPE 2:Israel |
86401-85200-5GR |
— | ||
|
7
|
7
02142-06105-000
Screw
|
02142-06105-000 |
— | ||
| replacements | |||||
|
7
|
7
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
7
|
7
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
8
|
8
86650-85220-000
Lock, seat cushion
|
86650-85220-000 |
— | ||
|
9
|
9
01107-06165-000
Bolt
|
01107-06165-000 |
— | ||
| replacement | |||||
|
9
|
9
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
10
|
10
08321-21064-000
Lock washer
|
08321-21064-000 |
— | ||
| replacement | |||||
|
10
|
10
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
11
|
11
08322-21064-000
Washer
|
08322-21064-000 |
— | ||
| replacement | |||||
|
11
|
11
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
12
|
12
03211-06128-000
スクリュ
|
03211-06128-000 |
— | ||
| replacement | |||||
|
12
|
12
03211-0612A-000 SCREW |
03211-0612A-000 |
US $7.70 |
||
|
13
|
13
09160-06027-000
Washer (6.5x20x1.2)
|
09160-06027-000 |
— | ||
| replacement | |||||
|
13
|
13
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
