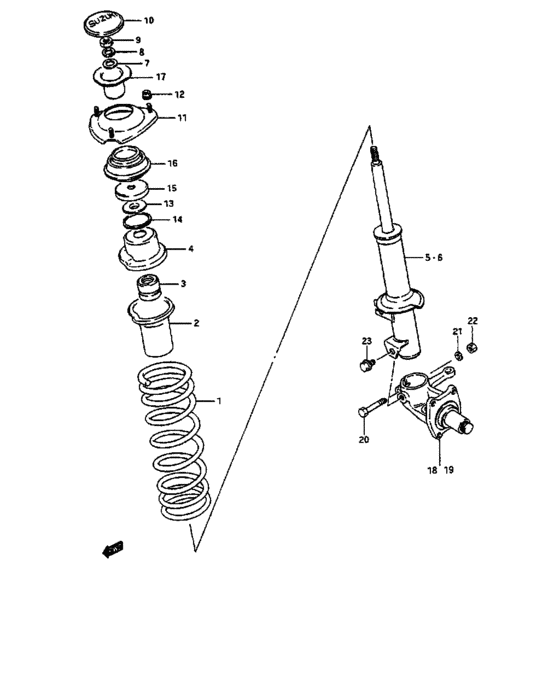

Front suspension (FRONT SUSPENSION) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41111-85200-000 SPRING,FRONT COIL |
41111-85200-000 |
US $83.20 |
||
|
1
|
1
41111-85230-000
Spring, front coil
China |
41111-85230-000 |
— | ||
| replacement | |||||
|
1
|
1
41111-85200-000 SPRING,FRONT COILChina |
41111-85200-000 |
US $83.20 |
||
|
2
|
2
41211-85050-000
Seat, front coil spring
|
41211-85050-000 |
— | ||
| replacement | |||||
|
2
|
2
41211-67050-000 RUBBER SEAT,SPRING |
41211-67050-000 |
US $15.36 |
||
|
2
|
2
41211-85051-000
Seat, front coil spring
DA21T-100355~,DA21V-101073~,JSAEDA21T00100019~,JSAEDA21V00100570~,JSAEDA21V08100092~ |
41211-85051-000 |
— | ||
| replacement | |||||
|
2
|
2
41211-67050-000 RUBBER SEAT,SPRINGDA21T-100355~,DA21V-101073~,JSAEDA21T00100019~,JSAEDA21V00100570~,JSAEDA21V08100092~ |
41211-67050-000 |
US $15.36 |
||
|
3
|
3
42111-85400-000 STOPPER,FR BUMP<-42111-72020 |
42111-85400-000 |
US $14.40 |
||
|
3
|
3
42111-85201-000
Bumper, spring
China, 42111-85200 |
42111-85201-000 |
— | ||
| replacement | |||||
|
3
|
3
42111-85400-000 STOPPER,FR BUMPChina, 42111-85200 |
42111-85400-000 |
US $14.40 |
||
|
4
|
4
41231-78001-000 SEAT,SPRING UPPER |
41231-78001-000 |
US $8.48 |
||
|
5
|
5
41601-85200-000
Strut assy, rh
->41601-85201,USED WITH 41211-85051 |
41601-85200-000 |
— | ||
| replacements | |||||
|
5
|
5
41211-67050-000 RUBBER SEAT,SPRING->41601-85201,USED WITH 41211-85051 |
41211-67050-000 |
US $15.36 |
||
|
5
|
5
41601-62C00-000
STRUT ASSY,FR SUSPENSION,R
->41601-85201,USED WITH 41211-85051 |
41601-62C00-000 |
— | ||
|
5
|
5
41601-85202-000
Strut assy, rh
DA21T-100355~,DA21V-101073~,JSAEDA21T00100019~,JSAEDA21V00100570~,JSAEDA21V08100092~,<-41601-85201 |
41601-85202-000 |
— | ||
| replacement | |||||
|
5
|
5
41601-62C00-000
STRUT ASSY,FR SUSPENSION,R
DA21T-100355~,DA21V-101073~,JSAEDA21T00100019~,JSAEDA21V00100570~,JSAEDA21V08100092~,<-41601-85201 |
41601-62C00-000 |
— | ||
|
6
|
6
41602-85200-000
Strut assy, lh
->41602-85201,USED WITH 41211-85051 |
41602-85200-000 |
— | ||
| replacements | |||||
|
6
|
6
41211-67050-000 RUBBER SEAT,SPRING->41602-85201,USED WITH 41211-85051 |
41211-67050-000 |
US $15.36 |
||
|
6
|
6
41602-62C00-000
STRUT ASSY,FR SUSPENSION,L
->41602-85201,USED WITH 41211-85051 |
41602-62C00-000 |
— | ||
|
6
|
6
41602-85202-000
Strut assy, lh
DA21T-100355~,DA21V-101073~,JSAEDA21T00100019~,JSAEDA21V00100570~,JSAEDA21V08100092~,<-41602-85201 |
41602-85202-000 |
— | ||
| replacement | |||||
|
6
|
6
41602-62C00-000
STRUT ASSY,FR SUSPENSION,L
DA21T-100355~,DA21V-101073~,JSAEDA21T00100019~,JSAEDA21V00100570~,JSAEDA21V08100092~,<-41602-85201 |
41602-62C00-000 |
— | ||
|
7
|
7
08322-11143-000 ワッシャ |
08322-11143-000 |
US $1.07 |
||
| replacement | |||||
|
7
|
7
08322-0114A-000 WASHER |
08322-0114A-000 |
from US $0.80 |
||
|
8
|
8
08321-31143-000
ロックワッシャ
|
08321-31143-000 |
— | ||
| replacement | |||||
|
8
|
8
08321-0114A-000 WASHER,LOCK |
08321-0114A-000 |
from US $0.80 |
||
|
9
|
9
08310-11143-000
ナット
|
08310-11143-000 |
— | ||
| replacement | |||||
|
9
|
9
08310-0014A-000 NUT |
08310-0014A-000 |
from US $0.91 |
||
|
10
|
10
41724-85050-000
Cap, strut support
|
41724-85050-000 |
— | ||
| replacement | |||||
|
10
|
10
41724-85000-000 CAP,STRUT SUPPORT |
41724-85000-000 |
US $1.60 |
||
|
11
|
11
41710-85050-000 SUPPORT,FRONT STRUT |
41710-85050-000 |
US $32 |
||
|
12
|
12
08316-26083-000
Nut
|
08316-26083-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-2008A-000 NUT |
08316-2008A-000 |
from US $0.80 |
||
|
13
|
13
45812-79000-000 THRUST WASHER,STRUT<-45812-79050 |
45812-79000-000 |
US $11.10 |
||
|
14
|
14
41732-79050-000
Dust seal, strut bearing
|
41732-79050-000 |
— | ||
| replacement | |||||
|
14
|
14
41732-79000-000 DUST SEAL,STRUT BEARING |
41732-79000-000 |
US $1.60 |
||
|
15
|
15
41741-79050-000
Seat, bearing
|
41741-79050-000 |
— | ||
| replacement | |||||
|
15
|
15
41741-79401-000 SEAT,FRONT STRUT BEARING |
41741-79401-000 |
US $6.24 |
||
|
15
|
15
41741-79051-000
Seat, bearing
DA21T-101762~,DA21V-104848~,JSAEDA21T00100111~,JSAEDA21V00107478~ |
41741-79051-000 |
— | ||
| replacement | |||||
|
15
|
15
41741-79401-000 SEAT,FRONT STRUT BEARINGDA21T-101762~,DA21V-104848~,JSAEDA21T00100111~,JSAEDA21V00107478~ |
41741-79401-000 |
US $6.24 |
||
|
16
|
16
41721-85050-000
ラバー,フロントストラットサポート
<-41721-85000 |
41721-85050-000 |
— | ||
| replacement | |||||
|
16
|
16
41721-77500-000 RUBBER,FRONT STRUT SUPPORT<-41721-85000 |
41721-77500-000 |
from US $15.96 |
||
|
17
|
17
41723-85050-000 STOPPER,FRONT STRUT REBOUND |
41723-85050-000 |
US $11.20 |
||
|
18
|
18
45111-85200-000 KNUCKLE,STEERING,R |
45111-85200-000 |
US $154.56 |
||
|
19
|
19
45151-85200-000 KNUCKLE,STEERING,L |
45151-85200-000 |
US $154.56 |
||
|
20
|
20
09100-10236-000 BOLT(10X53) |
09100-10236-000 |
US $2.40 |
||
|
21
|
21
08321-31103-000
ロックワッシャ
|
08321-31103-000 |
— | ||
| replacements | |||||
|
21
|
21
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
21
|
21
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
22
|
22
08310-12103-000 Nut |
08310-12103-000 |
US $0.63 |
||
| replacements | |||||
|
22
|
22
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
22
|
22
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
23
|
23
09103-10130-000 BOLT(10X14) |
09103-10130-000 |
US $1.28 |
||
