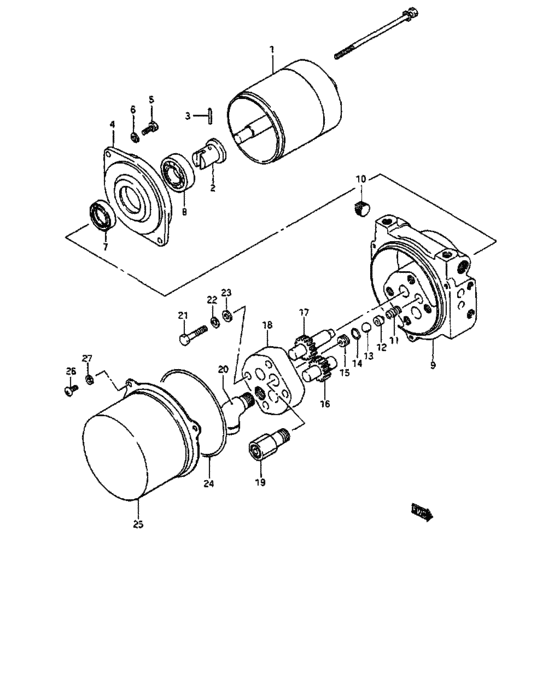

Motor (DUMP TRUCK) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
97330-79340-000
Motor assy
|
97330-79340-000 |
— | ||
|
2
|
2
97385-79340-000
Joint, pump
|
97385-79340-000 |
— | ||
|
3
|
3
97386-79340-000
Pin, spring
|
97386-79340-000 |
— | ||
|
4
|
4
97384-79340-000
Adapter
|
97384-79340-000 |
— | ||
|
5
|
5
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
5
|
5
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
6
|
6
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
6
|
6
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
7
|
7
97364-79340-000
Oil seal
|
97364-79340-000 |
— | ||
|
8
|
8
97365-79340-000
Bearing
|
97365-79340-000 |
— | ||
|
9
|
9
97363-79340-000
Body, pump
|
97363-79340-000 |
— | ||
|
10
|
10
97366-79340-000
Plug
|
97366-79340-000 |
— | ||
|
11
|
11
97362-79340-000
Spring, check valve
|
97362-79340-000 |
— | ||
|
12
|
12
97361-79340-000
Catcher, spring
|
97361-79340-000 |
— | ||
|
13
|
13
06111-10003-000 BALL |
06111-10003-000 |
from US $0.80 |
||
|
14
|
14
97359-79340-000
O ring
|
97359-79340-000 |
— | ||
|
15
|
15
97358-79340-000
Seat, valve
|
97358-79340-000 |
— | ||
|
16
|
16
97357-79340-000
Gear, counter
|
97357-79340-000 |
— | ||
|
17
|
17
97356-79340-000
Gear, main
|
97356-79340-000 |
— | ||
|
18
|
18
97353-79340-000
Cover, pump
|
97353-79340-000 |
— | ||
|
19
|
19
97355-79340-000
Valve assy
|
97355-79340-000 |
— | ||
|
20
|
20
97354-79340-000
Elbow
|
97354-79340-000 |
— | ||
|
21
|
21
01107-08408-000
Bolt
|
01107-08408-000 |
— | ||
| replacement | |||||
|
21
|
21
01500-0840A-000 Bolt |
01500-0840A-000 |
from US $0.96 |
||
|
22
|
22
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
22
|
22
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
23
|
23
08322-21088-000
Washer
|
08322-21088-000 |
— | ||
| replacement | |||||
|
23
|
23
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
24
|
24
97352-79340-000
O ring
|
97352-79340-000 |
— | ||
|
25
|
25
97351-79340-000
Tank, oil
|
97351-79340-000 |
— | ||
|
26
|
26
02112-06128-000
Screw
|
02112-06128-000 |
— | ||
| replacement | |||||
|
26
|
26
02112-06127-000 SCREW |
02112-06127-000 |
from US $0.76 |
||
|
27
|
27
08321-21067-000
Lock washer
|
08321-21067-000 |
— | ||
| replacement | |||||
|
27
|
27
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
