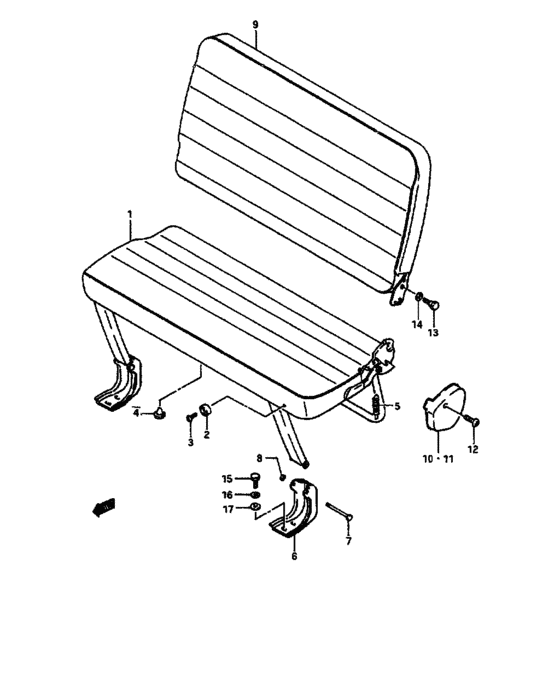

Third seat (FLAT FLOOR) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
88101-85730-7WS
Cushion assy, seat
TYPE 1:TA |
88101-85730-7WS |
— | ||
|
1
|
1
88101-85730-7WV
Cushion assy, seat
TYPE 1:TA |
88101-85730-7WV |
— | ||
|
1
|
1
88101-85720-7WU
Cushion assy, seat
TYPE 1:United Arab Emirates |
88101-85720-7WU |
— | ||
|
1
|
1
88101-85720-7WY
Cushion assy, seat
TYPE 1:United Arab Emirates |
88101-85720-7WY |
— | ||
|
1
|
1
88101-85720-2EG
Cushion assy, seat
TYPE 2:TX |
88101-85720-2EG |
— | ||
|
2
|
2
09320-06006-000 CUSHION |
09320-06006-000 |
from US $1.04 |
||
|
3
|
3
03242-05165-000
Screw
|
03242-05165-000 |
— | ||
| replacement | |||||
|
3
|
3
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
4
|
4
09321-06016-000 CUSHION |
09321-06016-000 |
from US $1.76 |
||
|
5
|
5
09443-14015-000 SPRING |
09443-14015-000 |
from US $4.57 |
||
|
6
|
6
88271-85720-000
MALE,SEAT HNG
|
88271-85720-000 |
— | ||
|
7
|
7
09208-06001-000
ピン
|
09208-06001-000 |
— | ||
| replacements | |||||
|
7
|
7
87259-56B10-000 PIN,REAR SEAT HINGE |
87259-56B10-000 |
US $1.76 |
||
|
7
|
7
09148-06008-000 NUTNut, adjuster knob |
09148-06008-000 |
from US $0.83 |
||
|
7
|
7
87259-83000-000
ピン,リヤシートヒンジ
|
87259-83000-000 |
— | ||
|
7
|
7
09148-06005-000
Nut seat moldin
|
09148-06005-000 |
— | ||
|
8
|
8
08332-11046-000
E ring
|
08332-11046-000 |
— | ||
| replacements | |||||
|
8
|
8
08332-1104B-000 E RING |
08332-1104B-000 |
from US $0.80 |
||
|
8
|
8
08332-1104A-000 E RING |
08332-1104A-000 |
from US $0.76 |
||
|
9
|
9
87301-85740-7WS
Back assy, seat
TYPE 1:TA |
87301-85740-7WS |
— | ||
|
9
|
9
87301-85740-7WV
Back assy, seat
TYPE 1:TA |
87301-85740-7WV |
— | ||
|
9
|
9
87301-85720-7WU
Back assy, rear seat
TYPE 1: |
87301-85720-7WU |
— | ||
|
9
|
9
87301-85720-7WY
Back assy, rear seat
TYPE 1: |
87301-85720-7WY |
— | ||
|
9
|
9
88301-85700-2EG
Back assy, seat
TYPE 2:TX |
88301-85700-2EG |
— | ||
|
10
|
10
87221-85530-281
カバー,リヤシートヒンジ,ライト
|
87221-85530-281 |
— | ||
|
11
|
11
87222-85530-281
カバー,リヤシートヒンジ,レフト
|
87222-85530-281 |
— | ||
| replacement | |||||
|
11
|
11
87222-85530-5PK
COVER,RR SEAT HINGE,L
|
87222-85530-5PK |
— | ||
|
12
|
12
03242-05165-000
Screw
|
03242-05165-000 |
— | ||
| replacement | |||||
|
12
|
12
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
13
|
13
09111-08044-000 BOLT(8X16) |
09111-08044-000 |
US $14.40 |
||
|
14
|
14
08321-21106-000
Lock washer
|
08321-21106-000 |
— | ||
| replacements | |||||
|
14
|
14
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
14
|
14
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
15
|
15
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
15
|
15
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
16
|
16
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
16
|
16
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
17
|
17
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
17
|
17
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
