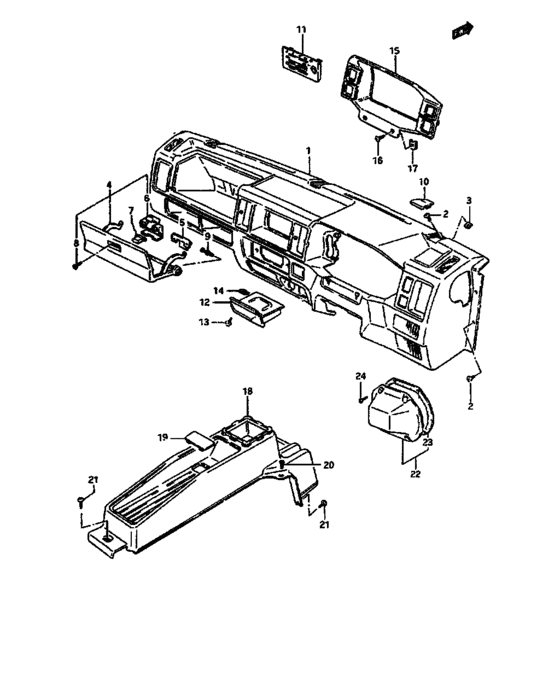

Instrument panel (INSTRUMENT PANEL) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73111-85001-4FU
パネル,インストゥルメント(グレー)
TYPE 1 |
73111-85001-4FU |
— | ||
| replacement | |||||
|
1
|
1
73111-85001-5ES
PANEL,INSTRUMENT
TYPE 1 |
73111-85001-5ES |
— | ||
|
1
|
1
73111-85001-5CW
パネル,インストゥルメント(ブラウン)
TYPE 2 |
73111-85001-5CW |
— | ||
| replacement | |||||
|
1
|
1
73111-85001-5ES
PANEL,INSTRUMENT
TYPE 2 |
73111-85001-5ES |
— | ||
|
2
|
2
02142-06164-000
Screw
|
02142-06164-000 |
— | ||
| replacement | |||||
|
2
|
2
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
3
|
3
62381-79000-000 NUT,INSTRUMENT PANEL SUPPORT |
62381-79000-000 |
US $1.10 |
||
|
4
|
4
73410-85002-4FU
リッド,グローブボックス(グレー)
TYPE 1 |
73410-85002-4FU |
— | ||
| replacement | |||||
|
4
|
4
73410-85002-5ES LID,GLOVE BOXTYPE 1 |
73410-85002-5ES |
US $40 |
||
|
4
|
4
73410-85002-5CW
Lid comp,glove box
TYPE 2 |
73410-85002-5CW |
— | ||
|
5
|
5
73415-85001-281
Lock, glove box lid
|
73415-85001-281 |
— | ||
| replacements | |||||
|
5
|
5
73415-85002-5PK
LOCK,GLOVE BOX LID
|
73415-85002-5PK |
— | ||
|
5
|
5
73416-85000-000 KNOB,GLOVE BOX |
73416-85000-000 |
US $2.98 |
||
|
5
|
5
73415-85002-000 ロック,グローブボックスリッド |
73415-85002-000 |
US $2.72 |
||
|
6
|
6
73415-85002-000 ロック,グローブボックスリッドDA21T-100333~,DA21V-100975~ |
73415-85002-000 |
US $2.72 |
||
|
7
|
7
73416-85000-000 KNOB,GLOVE BOXDA21T-100333~,DA21V-100975~ |
73416-85000-000 |
US $2.98 |
||
|
8
|
8
03231-04125-000
スクリュ
|
03231-04125-000 |
— | ||
| replacement | |||||
|
8
|
8
03221-0412A-000 SCREW |
03221-0412A-000 |
US $10.30 |
||
|
9
|
9
73421-85001-000 PIN,GLOVE BOX LID HINGE |
73421-85001-000 |
US $2.13 |
||
|
10
|
10
73811-85000-4FU
キャップ,インストゥルメントパネル(グレー)
TYPE 1 |
73811-85000-4FU |
— | ||
| replacement | |||||
|
10
|
10
73811-85000-5RT
CAP,INSTPNL
TYPE 1 |
73811-85000-5RT |
— | ||
|
10
|
10
73811-85000-5CW
キャップ,パネル(ブラウン)
TYPE 2 |
73811-85000-5CW |
— | ||
| replacement | |||||
|
10
|
10
73811-85000-5RT
CAP,INSTPNL
TYPE 2 |
73811-85000-5RT |
— | ||
|
11
|
11
74451-85000-000 PANEL,HEATER CONTROL |
74451-85000-000 |
US $11.37 |
||
|
12
|
12
89810-85000-4FU
アッシュトレー,フロント(グレー)
TYPE 1 |
89810-85000-4FU |
— | ||
| replacements | |||||
|
12
|
12
89810-85000-5RT
ASHTRAY,FR
TYPE 1 |
89810-85000-5RT |
— | ||
|
12
|
12
89810-85000-5ES ASHTRAY,FRTYPE 1 |
89810-85000-5ES |
US $47.12 |
||
|
12
|
12
89810-85000-5CW ASHTRAY,FRTYPE 2 |
89810-85000-5CW |
US $32.75 |
||
|
13
|
13
03241-05125-000
Screw
|
03241-05125-000 |
— | ||
| replacement | |||||
|
13
|
13
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
14
|
14
09148-05013-000 NUT |
09148-05013-000 |
from US $0.91 |
||
|
15
|
15
73310-85000-281
Panel, meter cluster
|
73310-85000-281 |
— | ||
| replacement | |||||
|
15
|
15
73310-85000-5PK PANEL,METER CLUSTER |
73310-85000-5PK |
US $48.80 |
||
|
16
|
16
03232-05165-000
Screw 5x16
|
03232-05165-000 |
— | ||
| replacement | |||||
|
16
|
16
03222-0516B-000 Bolt |
03222-0516B-000 |
US $14.40 |
||
|
17
|
17
09148-05013-000 NUT |
09148-05013-000 |
from US $0.91 |
||
|
18
|
18
75811-85000-4FU
ボックス,センタコンソール(グレー)
TYPE 1 |
75811-85000-4FU |
— | ||
| replacement | |||||
|
18
|
18
75811-85000-5RT
BOX,CENTER CONSOLE
TYPE 1 |
75811-85000-5RT |
— | ||
|
18
|
18
75811-85000-5CW
ボックス,センタコンソール(ブラウン)
TYPE 2 |
75811-85000-5CW |
— | ||
| replacement | |||||
|
18
|
18
75811-85000-5RT
BOX,CENTER CONSOLE
TYPE 2 |
75811-85000-5RT |
— | ||
|
19
|
19
75812-85000-4FU
リッド,センタコンソールボックス(グレー)
TYPE 1 |
75812-85000-4FU |
— | ||
| replacement | |||||
|
19
|
19
75812-85000-5RT
LID,CTR CONSOLE BOX
TYPE 1 |
75812-85000-5RT |
— | ||
|
19
|
19
75812-85000-5CW
リッド,センタコンソールボックス(ブラウン)
TYPE 2 |
75812-85000-5CW |
— | ||
| replacement | |||||
|
19
|
19
75812-85000-5RT
LID,CTR CONSOLE BOX
TYPE 2 |
75812-85000-5RT |
— | ||
|
20
|
20
02142-06164-000
Screw
|
02142-06164-000 |
— | ||
| replacement | |||||
|
20
|
20
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
21
|
21
03141-06165-000
スクリュ
|
03141-06165-000 |
— | ||
| replacement | |||||
|
21
|
21
03141-0616A-000 SCREW |
03141-0616A-000 |
from US $0.76 |
||
|
22
|
22
73630-85000-281
Box,headlamp housing
|
73630-85000-281 |
— | ||
|
23
|
23
73632-85000-000
PAD,HEADLAMP HOUSING BOX
|
73632-85000-000 |
— | ||
|
24
|
24
03241-04125-000
Screw
|
03241-04125-000 |
— | ||
| replacement | |||||
|
24
|
24
03242-0412B-000 SCREW |
03242-0412B-000 |
from US $0.80 |
||
