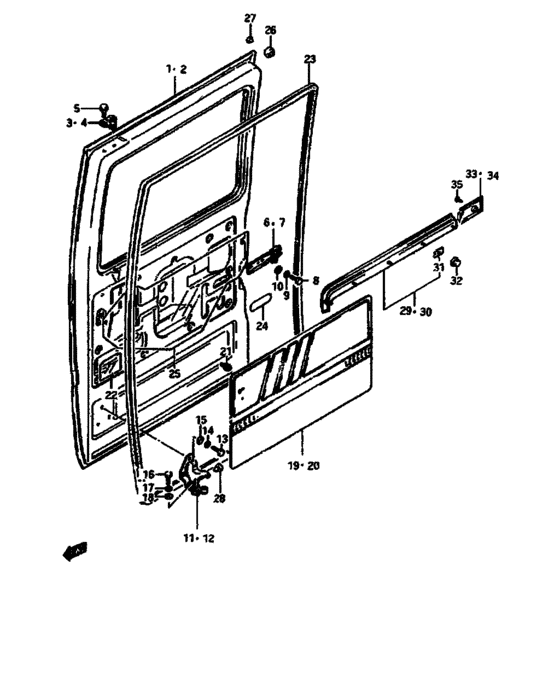

Rear door panel (V) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68500-85500-000
パネルアッシ,リヤドア,ライト
|
68500-85500-000 |
— | ||
| replacement | |||||
|
1
|
1
68500-75D00-000 PANEL ASSY,REAR DOOR,R |
68500-75D00-000 |
US $552.64 |
||
|
2
|
2
68700-85500-000
パネルアッシ,リヤドア,レフト
|
68700-85500-000 |
— | ||
| replacement | |||||
|
2
|
2
68700-75D00-000 PANEL ASSY,REAR DOOR,L |
68700-75D00-000 |
US $552.64 |
||
|
3
|
3
84120-85500-000
アームアッシ,リヤドアアッパ,ライト
|
84120-85500-000 |
— | ||
| replacement | |||||
|
3
|
3
84120-85501-000 ARM ASSY,RR DR UPR,R |
84120-85501-000 |
US $15.84 |
||
|
4
|
4
84220-85300-000
Arm assy, door upper lh
|
84220-85300-000 |
— | ||
|
5
|
5
01517-08166-000
Bolt 8x16
|
01517-08166-000 |
— | ||
| replacement | |||||
|
5
|
5
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
6
|
6
84110-85501-000
Slide hinge assy,r
TYPE 1 |
84110-85501-000 |
— | ||
| replacement | |||||
|
6
|
6
84110-85502-000 SLIDE HINGE ASSY,RTYPE 1 |
84110-85502-000 |
US $41.22 |
||
|
6
|
6
84110-85510-000
Hinge assy,slide
TYPE 2 |
84110-85510-000 |
— | ||
| replacement | |||||
|
6
|
6
84110-85511-000 HINGE ASSY,SLIDETYPE 2 |
84110-85511-000 |
US $45.60 |
||
|
7
|
7
84210-85501-000
Slide hinge assy,l
TYPE 1 |
84210-85501-000 |
— | ||
| replacement | |||||
|
7
|
7
84210-85502-000 SLIDE HINGE ASSY,LTYPE 1 |
84210-85502-000 |
US $40.80 |
||
|
7
|
7
84210-85510-000
Hinge assy,slide
TYPE 2 |
84210-85510-000 |
— | ||
| replacement | |||||
|
7
|
7
84210-85511-000 HINGE ASSY,SLIDETYPE 2 |
84210-85511-000 |
US $50.40 |
||
|
8
|
8
01107-08206-000
Bolt
|
01107-08206-000 |
— | ||
| replacement | |||||
|
8
|
8
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
9
|
9
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
9
|
9
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
10
|
10
08322-21088-000
Washer
|
08322-21088-000 |
— | ||
| replacement | |||||
|
10
|
10
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
11
|
11
84130-85500-000
Arm assy,rear door lower,r
|
84130-85500-000 |
— | ||
| replacement | |||||
|
11
|
11
84130-85510-000 ARM ASSY,RR DR LWR,R |
84130-85510-000 |
US $44.80 |
||
|
12
|
12
84230-85500-000
Arm assy,rear door lower,l
|
84230-85500-000 |
— | ||
| replacement | |||||
|
12
|
12
84230-85510-000 ARM ASSY,RR DR LWR,L |
84230-85510-000 |
US $44.80 |
||
|
13
|
13
01107-08206-000
Bolt
|
01107-08206-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
14
|
14
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
14
|
14
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
14
|
14
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
15
|
15
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
15
|
15
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
15
|
15
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
16
|
16
01107-08206-000
Bolt
|
01107-08206-000 |
— | ||
| replacement | |||||
|
16
|
16
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
17
|
17
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
17
|
17
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
17
|
17
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
18
|
18
08322-21086-000
Washer 8mm
|
08322-21086-000 |
— | ||
| replacements | |||||
|
18
|
18
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
18
|
18
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
19
|
19
76110-85500-4GG
トリム,リヤドア,ライト(ベージュ)
TYPE 1:TA |
76110-85500-4GG |
— | ||
|
19
|
19
76110-85500-4GJ
トリム,リヤドア,ライト(グレー)
TYPE 1:TA |
76110-85500-4GJ |
— | ||
|
19
|
19
76110-85500-5CZ
トリム,リヤドア,ライト(ブラウン)
TYPE 2:TA |
76110-85500-5CZ |
— | ||
|
19
|
19
76110-85510-4GG
トリム,リヤドア,ライト(ベージュ)
TYPE 1:TX |
76110-85510-4GG |
— | ||
|
19
|
19
76110-85510-6GJ
Trim, door rh
TYPE 1:TX |
76110-85510-6GJ |
— | ||
|
19
|
19
76110-85510-5CZ
トリム,リヤドア,ライト(ブラウン)
TYPE 2:TX |
76110-85510-5CZ |
— | ||
|
20
|
20
76160-85500-4GG
トリム,リヤドア,レフト(ベージュ)
TYPE 1:TX |
76160-85500-4GG |
— | ||
|
20
|
20
76160-85500-4GJ
トリム,リヤドア,レフト(グレー)
TYPE 1:TA |
76160-85500-4GJ |
— | ||
|
20
|
20
76160-85500-5CZ
トリム,リヤドア,レフト(ブラウン)
TYPE 2:TA |
76160-85500-5CZ |
— | ||
|
20
|
20
76160-85700-4GG
トリム,リヤドア,レフト(ベージュ)
TYPE 1:TX |
76160-85700-4GG |
— | ||
|
20
|
20
76160-85700-4GJ
トリム,リヤドア,レフト
TYPE 1:TX |
76160-85700-4GJ |
— | ||
|
20
|
20
76160-85700-5CZ
トリム,リヤドア,レフト(ブラウン)
TYPE 2:TX |
76160-85700-5CZ |
— | ||
|
21
|
21
09409-08309-000
CLIP
|
09409-08309-000 |
— | ||
| replacement | |||||
|
21
|
21
09409-08320-000 CLIP |
09409-08320-000 |
from US $1.15 |
||
|
22
|
22
76182-85710-000
フィルム,リヤドアウォータプルーフ
|
76182-85710-000 |
— | ||
| replacement | |||||
|
22
|
22
83911-60X52-000 COVER,DR SEALING |
83911-60X52-000 |
US $6.06 |
||
|
23
|
23
84661-85500-000
ウェザストリップ,リヤドアオープニング
|
84661-85500-000 |
— | ||
| replacement | |||||
|
23
|
23
84661-85510-000 WEATHERSTRIP,RR DR OPNG |
84661-85510-000 |
US $90.40 |
||
|
24
|
24
76185-85500-000
プルーフ,リヤドアセンタヒンジウォータ
|
76185-85500-000 |
— | ||
| replacement | |||||
|
24
|
24
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole |
84761-50X50-000 |
US $6.72 |
||
|
25
|
25
76181-85710-000
フィルム,リヤドアダストシール
|
76181-85710-000 |
— | ||
| replacement | |||||
|
25
|
25
83911-60X52-000 COVER,DR SEALING |
83911-60X52-000 |
US $6.06 |
||
|
26
|
26
09321-05021-000 CUSHION |
09321-05021-000 |
US $1.60 |
||
|
27
|
27
09321-06016-000 CUSHION |
09321-06016-000 |
from US $1.76 |
||
|
28
|
28
84139-85500-000 CUSHION,LOWER ARM STOP |
84139-85500-000 |
US $1.60 |
||
|
29
|
29
84150-85502-000 RAIL,RR DOOR CTR GUIDE,R<-84150-85501 |
84150-85502-000 |
US $89.60 |
||
|
30
|
30
84250-85502-000 RAIL,RR DOOR CTR GUIDE,L<-84250-85501 |
84250-85502-000 |
US $89.60 |
||
|
31
|
31
84156-85500-000 PACKING,CTR RAIL |
84156-85500-000 |
US $2.08 |
||
|
32
|
32
08316-26066-000
Nut 6mm
|
08316-26066-000 |
— | ||
| replacements | |||||
|
32
|
32
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
32
|
32
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
33
|
33
77311-85500-291
Garnish, quarter outer rh
|
77311-85500-291 |
— | ||
| replacement | |||||
|
33
|
33
77311-85500-5PK GARNISH,OTR,R |
77311-85500-5PK |
US $6.72 |
||
|
34
|
34
77361-85500-291
Garnish, quarter outer lh
|
77361-85500-291 |
— | ||
| replacement | |||||
|
34
|
34
77361-85500-5PK GARNISH,OTR,L |
77361-85500-5PK |
US $6.72 |
||
|
35
|
35
03141-04165-000
Vis
|
03141-04165-000 |
— | ||
| replacement | |||||
|
35
|
35
03141-0416A-000 SCREW |
03141-0416A-000 |
from US $0.80 |
||
