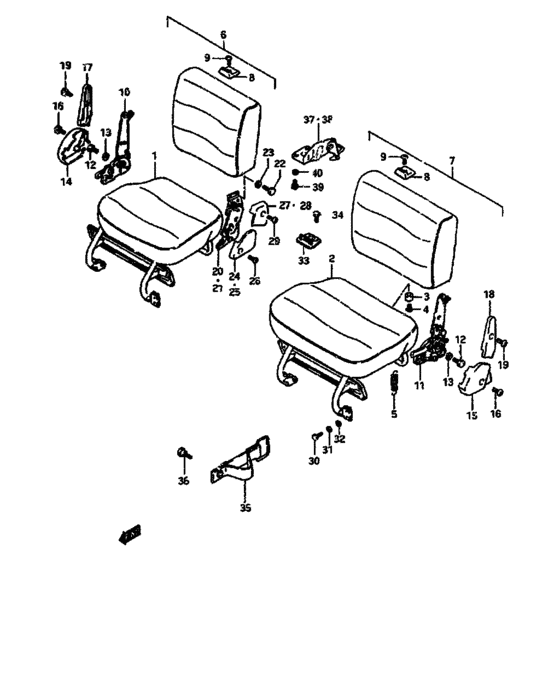

Rear seat (HIGH ROOF:SEPARATE TYPE) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87101-85700-7WU
Cushion assy, rh
TYPE 1 |
87101-85700-7WU |
— | ||
|
1
|
1
87101-85700-7WY
Cushion assy, rh
TYPE 1 |
87101-85700-7WY |
— | ||
|
1
|
1
87101-85700-2EG
Cushion assy, rh
TYPE 2 |
87101-85700-2EG |
— | ||
|
2
|
2
87102-85700-7WU
Cushion assy, lh
TYPE 1 |
87102-85700-7WU |
— | ||
|
2
|
2
87102-85700-7WY
Cushion assy, lh
TYPE 1 |
87102-85700-7WY |
— | ||
|
2
|
2
87102-85700-2EG
Cushion assy, lh
TYPE 2 |
87102-85700-2EG |
— | ||
|
3
|
3
09320-06003-000 CUSHION |
09320-06003-000 |
US $11.40 |
||
|
4
|
4
03242-05165-000
Screw
|
03242-05165-000 |
— | ||
| replacement | |||||
|
4
|
4
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
5
|
5
09443-14015-000 SPRING |
09443-14015-000 |
from US $4.57 |
||
|
6
|
6
87301-85700-7WU
Back assy, rh
TYPE 1 |
87301-85700-7WU |
— | ||
|
6
|
6
87301-85700-7WY
Back assy, rh
TYPE 1 |
87301-85700-7WY |
— | ||
|
6
|
6
87301-85700-2EG
Back assy, rh
TYPE 2 |
87301-85700-2EG |
— | ||
|
7
|
7
87302-85700-7WU
Back assy, lh
TYPE 1 |
87302-85700-7WU |
— | ||
|
7
|
7
87302-85700-7WY
Back assy, lh
TYPE 1 |
87302-85700-7WY |
— | ||
|
7
|
7
87302-85700-2EG
Back assy, lh
TYPE 2 |
87302-85700-2EG |
— | ||
|
8
|
8
87396-85500-000
クッション
|
87396-85500-000 |
— | ||
|
9
|
9
03242-05165-000
Screw
|
03242-05165-000 |
— | ||
| replacement | |||||
|
9
|
9
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
10
|
10
87210-85701-000
Reclining assy, rh
<-87210-85700 |
87210-85701-000 |
— | ||
|
11
|
11
87610-85701-000
Reclining assy, lh
<-87610-85700 |
87610-85701-000 |
— | ||
|
12
|
12
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
12
|
12
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
13
|
13
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
13
|
13
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
13
|
13
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
14
|
14
87221-85500-281
Cover, reclining lower rh
|
87221-85500-281 |
— | ||
| replacement | |||||
|
14
|
14
87221-85500-5PK
COVER,RECLINING ASSY,LOWER,R
|
87221-85500-5PK |
— | ||
|
15
|
15
87621-85500-281
Cover, reclining lower lh
|
87621-85500-281 |
— | ||
| replacement | |||||
|
15
|
15
87621-85500-5PK
COVER,RECLINING ASSY LOWER,L
|
87621-85500-5PK |
— | ||
|
16
|
16
03242-05165-000
Screw
|
03242-05165-000 |
— | ||
| replacement | |||||
|
16
|
16
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
17
|
17
87222-85500-281
カバー,リクライニングアッパ,ライト
|
87222-85500-281 |
— | ||
|
18
|
18
87622-85500-281
カバー,リクライニングアッパ,レフト
|
87622-85500-281 |
— | ||
| replacement | |||||
|
18
|
18
87622-85500-5PK
COVER,RECLINING ASSY UPPER,L
|
87622-85500-5PK |
— | ||
|
19
|
19
02142-06104-000
Screw
|
02142-06104-000 |
— | ||
| replacements | |||||
|
19
|
19
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
19
|
19
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
20
|
20
87280-85501-000
ヒンジ,リヤシートバック,ライト
<-87280-85500 |
87280-85501-000 |
— | ||
|
21
|
21
87680-85501-000
ヒンジ,リヤシートバック,レフト
<-87680-85500 |
87680-85501-000 |
— | ||
|
22
|
22
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
22
|
22
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
23
|
23
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
23
|
23
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
23
|
23
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
24
|
24
87296-85700-281
Cover, hinge lower rh
|
87296-85700-281 |
— | ||
|
25
|
25
87696-85700-281
Cover, hinge lower lh
|
87696-85700-281 |
— | ||
|
26
|
26
02142-06104-000
Screw
|
02142-06104-000 |
— | ||
| replacements | |||||
|
26
|
26
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
26
|
26
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
27
|
27
87297-85500-281
カバー,ヒンジアッパ,ライト
|
87297-85500-281 |
— | ||
|
28
|
28
87697-85500-281
Cover, hinge upper lh
|
87697-85500-281 |
— | ||
|
29
|
29
02112-06104-000
Screw
|
02112-06104-000 |
— | ||
| replacement | |||||
|
29
|
29
02112-0610B-000 SCREW |
02112-0610B-000 |
from US $0.76 |
||
|
30
|
30
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
30
|
30
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
31
|
31
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
31
|
31
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
31
|
31
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
32
|
32
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
32
|
32
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
32
|
32
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
33
|
33
87830-85700-000
Striker, seat lock
|
87830-85700-000 |
— | ||
|
34
|
34
09103-12020-000
ボルト
|
09103-12020-000 |
— | ||
| replacement | |||||
|
34
|
34
09103-12040-000 BOLT(12X22) |
09103-12040-000 |
US $1.92 |
||
|
35
|
35
87889-05500-000
Band, rear seat stopper
|
87889-05500-000 |
— | ||
|
36
|
36
09139-00040-000
Screw
|
09139-00040-000 |
— | ||
|
37
|
37
87850-85700-000
Lock, rear seat rh
|
87850-85700-000 |
— | ||
|
38
|
38
87950-85700-000
Lock, rear seat lh
|
87950-85700-000 |
— | ||
|
39
|
39
01107-08165-000
Bolt 6x16
|
01107-08165-000 |
— | ||
| replacement | |||||
|
39
|
39
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
40
|
40
08321-21084-000
Lock washer
|
08321-21084-000 |
— | ||
| replacements | |||||
|
40
|
40
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
40
|
40
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
