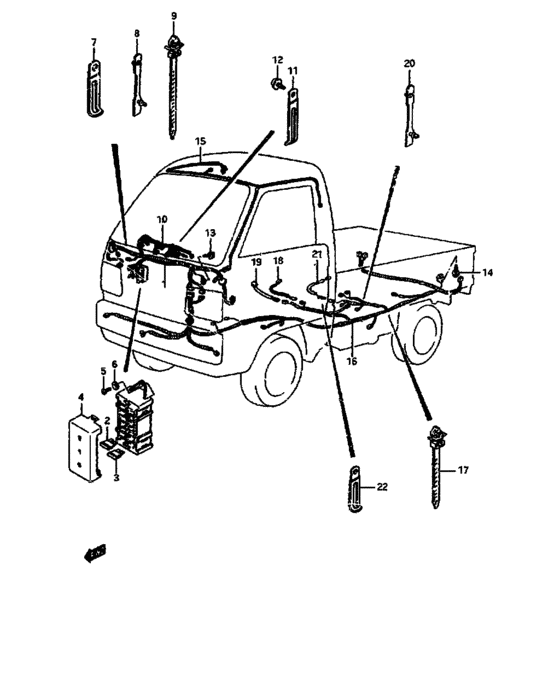

Wiring harness (K) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-85070-000
Harness assy, wiring no.1
|
36610-85070-000 |
— | ||
|
2
|
2
09481-10101-000 FUSE(10A) |
09481-10101-000 |
from US $1.28 |
||
|
3
|
3
09481-15101-000 FUSE(15A)Fuse (15a) |
09481-15101-000 |
from US $1.28 |
||
|
4
|
4
36717-80021-000
Cover,fuse box
|
36717-80021-000 |
— | ||
|
5
|
5
02112-05166-000
Screw
|
02112-05166-000 |
— | ||
| replacements | |||||
|
5
|
5
02112-0516B-000 SCREW |
02112-0516B-000 |
from US $0.80 |
||
|
5
|
5
02112-0516A-000 SCREW |
02112-0516A-000 |
from US $0.80 |
||
|
6
|
6
08322-21056-000
Washer
|
08322-21056-000 |
— | ||
| replacements | |||||
|
6
|
6
08322-0105B-000 WASHER |
08322-0105B-000 |
from US $0.76 |
||
|
6
|
6
08322-0105A-000 WASHERWasher, front |
08322-0105A-000 |
from US $0.80 |
||
|
7
|
7
09404-08413-000
Alternator w cl
|
09404-08413-000 |
— | ||
| replacement | |||||
|
7
|
7
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
8
|
8
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
9
|
9
09407-14408-000 CLAMP(L:120) |
09407-14408-000 |
US $9.20 |
||
| replacement | |||||
|
9
|
9
09407-17402-000 CLAMP |
09407-17402-000 |
from US $1.98 |
||
|
10
|
10
36620-85020-000
Harness assy, wiring no.2
|
36620-85020-000 |
— | ||
|
11
|
11
09404-06404-000
Clamp, fuel hose
|
09404-06404-000 |
— | ||
| replacements | |||||
|
11
|
11
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
11
|
11
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
|
11
|
11
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
from US $2.13 |
||
|
11
|
11
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
12
|
12
03541-05166-000
スクリュ
|
03541-05166-000 |
— | ||
| replacement | |||||
|
12
|
12
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
13
|
13
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
13
|
13
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
14
|
14
09139-05028-000 SCREW(5X14) |
09139-05028-000 |
US $11.40 |
||
|
15
|
15
36630-85000-000
ハーネスアッシ,ワイヤリング,NO.3
|
36630-85000-000 |
— | ||
|
16
|
16
36650-85071-000
Harness assy, wiring no.5
<-36650-85070 |
36650-85071-000 |
— | ||
|
17
|
17
09407-11402-000 CLAMP(L:90) |
09407-11402-000 |
from US $1.75 |
||
| replacement | |||||
|
17
|
17
09407-17402-000 CLAMP |
09407-17402-000 |
from US $1.98 |
||
|
18
|
18
36846-85000-000
ワイヤ,ジェネレータ
|
36846-85000-000 |
— | ||
|
19
|
19
36748-85000-000
ワイヤ,ジェネレータ
|
36748-85000-000 |
— | ||
| replacement | |||||
|
19
|
19
36748-60C12-000 WIRE,GENERATOR |
36748-60C12-000 |
US $13.73 |
||
|
20
|
20
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
21
|
21
36890-85030-000
Wire, oil pressure switch
|
36890-85030-000 |
— | ||
| replacement | |||||
|
21
|
21
36890-79210-000 WIRE,OIL PRESS SW |
36890-79210-000 |
US $2.58 |
||
|
22
|
22
09404-06402-000
Clamp, hose (l:60)
|
09404-06402-000 |
— | ||
| replacements | |||||
|
22
|
22
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
22
|
22
09404-06206-000
CLAMP(L:45)
|
09404-06206-000 |
— | ||
|
22
|
22
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
22
|
22
09404-06031-000 Clamp,rsvr Tank Ovfl Hose |
09404-06031-000 |
from US $1.37 |
||
