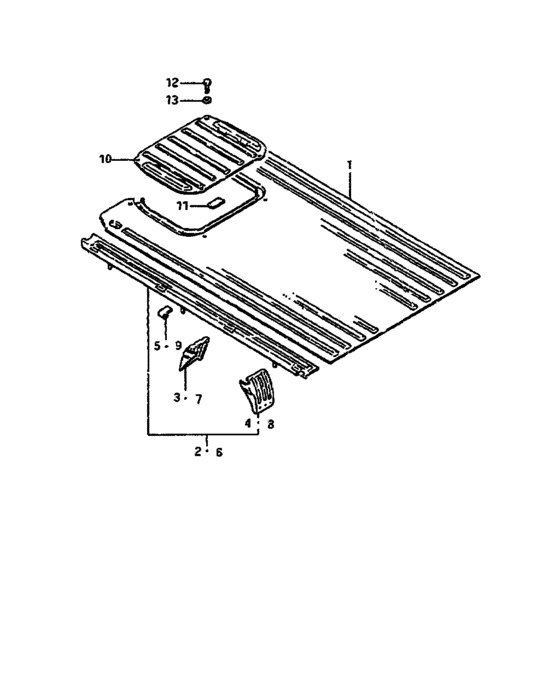

Deck floor (K) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73311-79031-000
Panel, deck floor
<-73311-79030 |
73311-79031-000 |
— | ||
| replacement | |||||
|
1
|
1
66411-85092-000 PANEL,DECK FLOOR<-73311-79030 |
66411-85092-000 |
US $596.80 |
||
|
2
|
2
66320-85010-000
Member, deck floor side rh
TYPE 1 |
66320-85010-000 |
— | ||
|
2
|
2
66320-85090-000
Member,deck floor side,r
TYPE 2 |
66320-85090-000 |
— | ||
|
3
|
3
73322-79030-000
Fender, front rh
TYPE 1 |
73322-79030-000 |
— | ||
| replacement | |||||
|
3
|
3
66333-85090-000 FENDER,DECKTYPE 1 |
66333-85090-000 |
US $28.80 |
||
|
3
|
3
66322-85090-000
フェンダ,デッキ,ライト
TYPE 2 |
66322-85090-000 |
— | ||
| replacement | |||||
|
3
|
3
66333-85090-000 FENDER,DECKTYPE 2 |
66333-85090-000 |
US $28.80 |
||
|
4
|
4
73323-79030-000
Fender, rear rh
TYPE 1 |
73323-79030-000 |
— | ||
| replacement | |||||
|
4
|
4
66323-85090-000 FENDER,DECKTYPE 1 |
66323-85090-000 |
US $28.80 |
||
|
4
|
4
66323-85090-000 FENDER,DECKTYPE 2 |
66323-85090-000 |
US $28.80 |
||
|
5
|
5
66571-85080-000
Hinge, deck cate
<-65671-67100 |
66571-85080-000 |
— | ||
| replacement | |||||
|
5
|
5
66571-70D00-000 HINGE,DECK GATE<-65671-67100 |
66571-70D00-000 |
US $4.86 |
||
|
6
|
6
66330-85010-000
Member, deck floor side lh
TYPE 1 |
66330-85010-000 |
— | ||
|
6
|
6
66330-85090-000
メンバ,デッキフロアサイド,レフト
TYPE 2 |
66330-85090-000 |
— | ||
|
7
|
7
73332-79030-000
Fender, deck front
TYPE 1 |
73332-79030-000 |
— | ||
| replacement | |||||
|
7
|
7
66323-85090-000 FENDER,DECKTYPE 1 |
66323-85090-000 |
US $28.80 |
||
|
7
|
7
66332-85090-000
フェンダ,デッキフロント,レフト
TYPE 2 |
66332-85090-000 |
— | ||
| replacement | |||||
|
7
|
7
66323-85090-000 FENDER,DECKTYPE 2 |
66323-85090-000 |
US $28.80 |
||
|
8
|
8
73333-79030-000
Fender, rear lh
TYPE 1 |
73333-79030-000 |
— | ||
| replacement | |||||
|
8
|
8
66333-85090-000 FENDER,DECKTYPE 1 |
66333-85090-000 |
US $28.80 |
||
|
8
|
8
66333-85090-000 FENDER,DECKTYPE 2 |
66333-85090-000 |
US $28.80 |
||
|
9
|
9
66571-85080-000
Hinge, deck cate
|
66571-85080-000 |
— | ||
| replacement | |||||
|
9
|
9
66571-70D00-000 HINGE,DECK GATE |
66571-70D00-000 |
US $4.86 |
||
|
10
|
10
73810-79202-000
パネル,フロアサービスホールリッド
|
73810-79202-000 |
— | ||
| replacement | |||||
|
10
|
10
73810-79203-000 PANEL,FLOOR SERVICE LID |
73810-79203-000 |
US $135.20 |
||
|
11
|
11
61115-68001-000
クッション
|
61115-68001-000 |
— | ||
| replacement | |||||
|
11
|
11
73415-70A00-000 PAD |
73415-70A00-000 |
from US $1.60 |
||
|
12
|
12
09103-08014-000
Bolt (8x16)
|
09103-08014-000 |
— | ||
| replacement | |||||
|
12
|
12
09100-08284-000 BOLT(8X16) |
09100-08284-000 |
from US $1.28 |
||
|
13
|
13
09160-08010-000 Washer (8.2x20x1.6) |
09160-08010-000 |
US $1.21 |
||
| replacement | |||||
|
13
|
13
09160-08054-000 WASHER(8.5X20X1.6) |
09160-08054-000 |
from US $0.91 |
||
