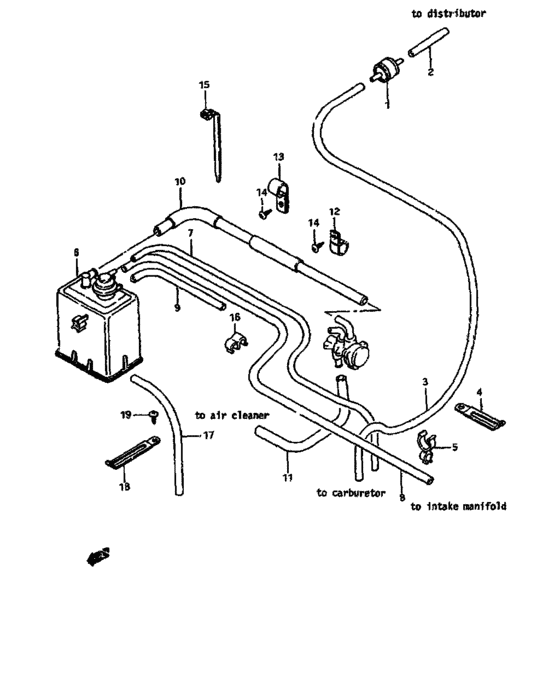

Emission control (V:~DA21V-122698) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18114-80000-000 VALVE,VACUUM TRANSMITTING |
18114-80000-000 |
US $27.97 |
||
|
2
|
2
09343-03089-000
ホース,#3/3.5X7.5X80
|
09343-03089-000 |
— | ||
| replacements | |||||
|
2
|
2
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
2
|
2
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
3
|
3
09338-35752-800
Hose, carburetor to vtv
L:800->440 |
09338-35752-800 |
— | ||
|
4
|
4
09404-08402-000
Clamp
|
09404-08402-000 |
— | ||
| replacement | |||||
|
4
|
4
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
5
|
5
09408-00060-000 CLAMP |
09408-00060-000 |
US $13.20 |
||
|
6
|
6
10560-82000-000
Camister
|
10560-82000-000 |
— | ||
|
7
|
7
09343-03107-000
ホース,#23/3.5X7.5X550
|
09343-03107-000 |
— | ||
| replacements | |||||
|
7
|
7
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
7
|
7
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
8
|
8
09354-40806-565
Hose, canister purge
|
09354-40806-565 |
— | ||
| replacement | |||||
|
8
|
8
09355-40805-600 HOSE(4X8X600) |
09355-40805-600 |
from US $6.24 |
||
|
9
|
9
09354-40806-475
ホース,4X8X475
L:475->125 |
09354-40806-475 |
— | ||
| replacement | |||||
|
9
|
9
09355-40805-600 HOSE(4X8X600)L:475->125 |
09355-40805-600 |
from US $6.24 |
||
|
10
|
10
18473-85200-000
Hose, bvv to canister
|
18473-85200-000 |
— | ||
| replacement | |||||
|
10
|
10
09355-90145-600 HOSE(9X14X600) |
09355-90145-600 |
from US $14.08 |
||
|
10
|
10
18473-85700-000
Hose, bvv to canister
|
18473-85700-000 |
— | ||
| replacement | |||||
|
10
|
10
09355-90145-600 HOSE(9X14X600) |
09355-90145-600 |
from US $14.08 |
||
|
11
|
11
18474-85200-000
Hose, bvv to canister
|
18474-85200-000 |
— | ||
|
12
|
12
09403-14404-000
Clamp
|
09403-14404-000 |
— | ||
| replacements | |||||
|
12
|
12
09403-14204-000
CLAMP
|
09403-14204-000 |
— | ||
|
12
|
12
09403-14415-000 Clamp |
09403-14415-000 |
US $17.30 |
||
|
13
|
13
09403-16401-000
Clamp, bvv to canister hose
|
09403-16401-000 |
— | ||
| replacement | |||||
|
13
|
13
09403-16405-000
Clamp
|
09403-16405-000 |
— | ||
|
14
|
14
03111-06123-000
スクリュ
|
03111-06123-000 |
— | ||
| replacement | |||||
|
14
|
14
03111-0612A-000 SCREW |
03111-0612A-000 |
US $0.80 |
||
|
15
|
15
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
16
|
16
09408-00033-000 CLAMPClamp |
09408-00033-000 |
from US $1.60 |
||
|
17
|
17
09344-07014-000
Hose, separator outlet
L:3190->170 |
09344-07014-000 |
— | ||
| replacement | |||||
|
17
|
17
09344-07505-000 HOSE(7X11X3550)L:3190->170 |
09344-07505-000 |
US $30.73 |
||
|
17
|
17
09344-07018-000
Hose, purge air suction
|
09344-07018-000 |
— | ||
| replacement | |||||
|
17
|
17
09351-70113-600 HOSE(7X11X600) |
09351-70113-600 |
US $3.52 |
||
|
18
|
18
09404-06404-000
Clamp, fuel hose
|
09404-06404-000 |
— | ||
| replacements | |||||
|
18
|
18
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
18
|
18
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
|
18
|
18
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
from US $2.13 |
||
|
18
|
18
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
19
|
19
03141-05123-000
Screw 5 x 12
|
03141-05123-000 |
— | ||
| replacement | |||||
|
19
|
19
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
