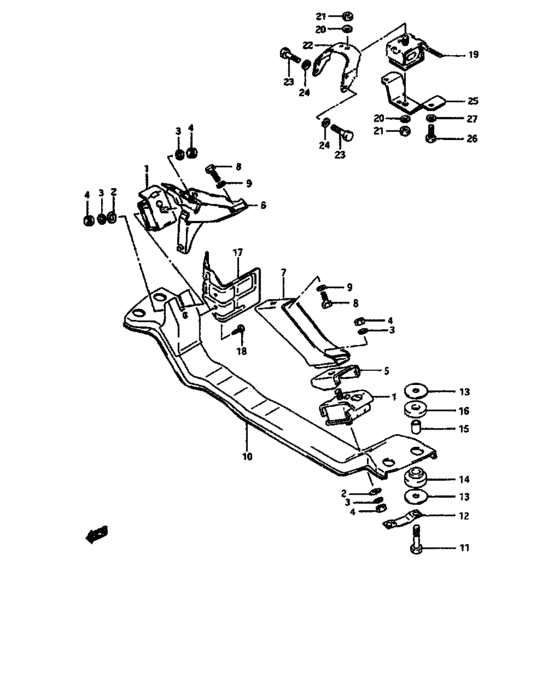

Engine mounting (ENGINE MOUNTING) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-85000-000
Mounting, engine front
|
11610-85000-000 |
— | ||
| replacement | |||||
|
1
|
1
11610-60C02-000 MOUNTING,ENG FR |
11610-60C02-000 |
US $55.20 |
||
|
2
|
2
08322-21103-000 ワッシャ |
08322-21103-000 |
US $2.73 |
||
| replacements | |||||
|
2
|
2
08322-0110A-000 WASHERWasher, knuckle end |
08322-0110A-000 |
from US $0.80 |
||
|
2
|
2
08322-0110B-000 WASHERWasher, knuckle end |
08322-0110B-000 |
from US $0.76 |
||
|
3
|
3
08321-21103-000 Lock washer |
08321-21103-000 |
from US $0.77 |
||
| replacements | |||||
|
3
|
3
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
3
|
3
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
4
|
4
08310-12103-000
Nut
|
08310-12103-000 |
— | ||
| replacements | |||||
|
4
|
4
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
4
|
4
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
5
|
5
11616-85000-000
カバー,フロントマウンチング
|
11616-85000-000 |
— | ||
| replacement | |||||
|
5
|
5
11616-85001-000 COVER,FR MOUNTING |
11616-85001-000 |
US $1.62 |
||
|
6
|
6
11640-85201-000
Bracket, front mounting rh
<-11640-85200 |
11640-85201-000 |
— | ||
| replacement | |||||
|
6
|
6
11640-85202-000 BRACKET,FR MTG,R<-11640-85200 |
11640-85202-000 |
US $36.43 |
||
|
7
|
7
11650-85200-000
Bracket, front mounting lh
|
11650-85200-000 |
— | ||
| replacement | |||||
|
7
|
7
11650-85550-000 BRACKET,FR MTG LH ENG |
11650-85550-000 |
US $23.20 |
||
|
8
|
8
09100-08091-000 BOLT(8X21.5) |
09100-08091-000 |
US $16.60 |
||
|
9
|
9
08321-31083-000
New Genuine Part
|
08321-31083-000 |
— | ||
| replacements | |||||
|
9
|
9
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
9
|
9
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
10
|
10
11660-85201-000
MEMBER,FR MTG
|
11660-85201-000 |
— | ||
|
11
|
11
09100-10147-000
ボルト,10X43
|
09100-10147-000 |
— | ||
| replacement | |||||
|
11
|
11
09100-10279-XC0 BOLT(10X50) |
09100-10279-XC0 |
US $6.08 |
||
|
12
|
12
09169-10013-000 WASHER |
09169-10013-000 |
US $2.08 |
||
|
13
|
13
11685-84000-000
ワッシャ,マウンチングメンバ
|
11685-84000-000 |
— | ||
| replacement | |||||
|
13
|
13
11685-79J00-000 WASHER |
11685-79J00-000 |
US $1.60 |
||
|
14
|
14
11686-85501-000 CUSHION,MTG MEMBER,LOWER |
11686-85501-000 |
US $4.80 |
||
|
15
|
15
11687-84000-000 SPACER,MOUNTING MEMBER |
11687-84000-000 |
US $2.72 |
||
|
16
|
16
11684-85501-000 CUSHION,MTG MEMBER,UPPER |
11684-85501-000 |
US $4.80 |
||
|
17
|
17
15105-85200-000
COVER,FUEL PUMP
|
15105-85200-000 |
— | ||
|
18
|
18
03141-06123-000
Screw 6x12
|
03141-06123-000 |
— | ||
| replacement | |||||
|
18
|
18
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
19
|
19
11710-77100-000 MOUNTING,ENG RR |
11710-77100-000 |
US $47.20 |
||
|
20
|
20
08321-21103-000 Lock washer |
08321-21103-000 |
from US $0.77 |
||
| replacements | |||||
|
20
|
20
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
20
|
20
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
21
|
21
08310-12103-000
Nut
|
08310-12103-000 |
— | ||
| replacements | |||||
|
21
|
21
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
21
|
21
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
22
|
22
11741-85200-000 BRACKET,RR MTG ENG |
11741-85200-000 |
US $13.14 |
||
|
23
|
23
01107-08203-000
Bolt
|
01107-08203-000 |
— | ||
| replacement | |||||
|
23
|
23
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
24
|
24
08321-21083-000
Washr,lk8.2x15.
|
08321-21083-000 |
— | ||
| replacements | |||||
|
24
|
24
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
24
|
24
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
25
|
25
11742-85200-000
ブラケット,リヤマウンチング,ボディサイド
|
11742-85200-000 |
— | ||
| replacement | |||||
|
25
|
25
11742-85201-000 BRACKET,RR MTG |
11742-85201-000 |
US $9.75 |
||
|
26
|
26
01107-08203-000
Bolt
|
01107-08203-000 |
— | ||
| replacement | |||||
|
26
|
26
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
27
|
27
08321-21083-000
Washr,lk8.2x15.
|
08321-21083-000 |
— | ||
| replacements | |||||
|
27
|
27
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
27
|
27
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
