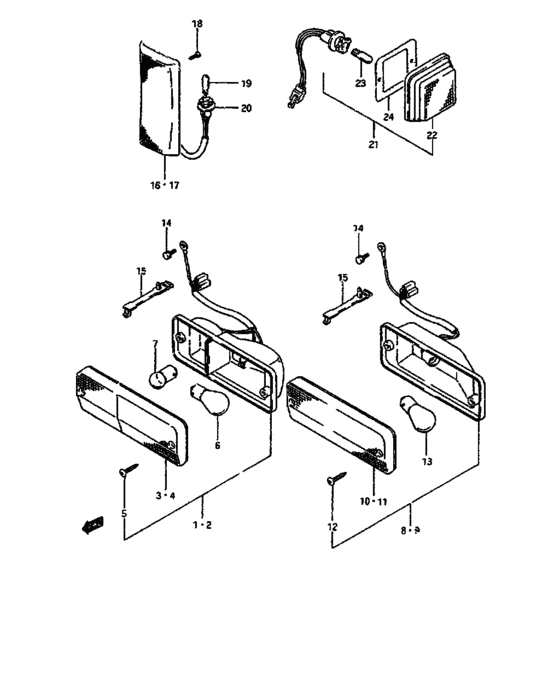

Front lamp (FRONT LAMP) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35601-83020-000
Lamp assy, combination rh
|
35601-83020-000 |
— | ||
|
1
|
1
35601-85020-000
Lamp assy, combination rh
TA |
35601-85020-000 |
— | ||
| replacement | |||||
|
1
|
1
35601-78011-000 LAMP ASSY,FR COMB,RTA |
35601-78011-000 |
US $59.62 |
||
|
2
|
2
35602-85020-000
Lamp assy, combination lh
|
35602-85020-000 |
— | ||
| replacement | |||||
|
2
|
2
35602-78011-000
Lamp assy,fr combi lh
|
35602-78011-000 |
— | ||
|
3
|
3
35612-79012-000
LENS,R
|
35612-79012-000 |
— | ||
|
4
|
4
35632-79012-000
LENS,L
|
35632-79012-000 |
— | ||
|
5
|
5
03112-04309-000 SCREW |
03112-04309-000 |
from US $0.76 |
||
|
6
|
6
09471-12045-000 BULB(12V21W) |
09471-12045-000 |
from US $4.41 |
||
|
7
|
7
09471-12140-000 BULB(12V5W) |
09471-12140-000 |
from US $2.03 |
||
|
8
|
8
35601-85040-000
Lamp assy, turn signal rh
TX |
35601-85040-000 |
— | ||
| replacement | |||||
|
8
|
8
35601-85050-000 LAMP ASSY,FR TURN SIG,RTX |
35601-85050-000 |
US $96.42 |
||
|
9
|
9
35602-85040-000
Lamp assy, turn signal lh
TX |
35602-85040-000 |
— | ||
| replacement | |||||
|
9
|
9
35602-85050-000 LAMP ASSY,FR TURN SIG,LTX |
35602-85050-000 |
US $96.05 |
||
|
10
|
10
35612-85040-000 LENS,RTX |
35612-85040-000 |
US $18.40 |
||
|
11
|
11
35632-85040-000 LENS,LTX |
35632-85040-000 |
US $18.40 |
||
|
12
|
12
03112-04309-000 SCREWTX |
03112-04309-000 |
from US $0.76 |
||
|
13
|
13
09471-12056-000
Bulb (12v, 21w)
TX |
09471-12056-000 |
— | ||
| replacement | |||||
|
13
|
13
09471-12045-000 BULB(12V21W)TX |
09471-12045-000 |
from US $4.41 |
||
|
14
|
14
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
14
|
14
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
15
|
15
09407-07401-000
CLAMP(L:55)
|
09407-07401-000 |
— | ||
| replacement | |||||
|
15
|
15
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
16
|
16
36112-85000-000 LENS,FR POSN LAMP,RTYPE 1:TX |
36112-85000-000 |
US $35.20 |
||
|
16
|
16
36112-85010-000
LENS,FR POSN LAMP,R
TYPE 2:TX |
36112-85010-000 |
— | ||
|
17
|
17
36132-85000-000 LENS,FR POSN LAMP,LTYPE 1:TX |
36132-85000-000 |
US $30.40 |
||
|
17
|
17
36132-85010-000 LENS,FR POSN LAMP,LTYPE 2:TX |
36132-85010-000 |
US $10.16 |
||
|
18
|
18
09132-03005-000 SCREW(3X10)Screw, pan head (3x10) TX |
09132-03005-000 |
US $8.80 |
||
|
19
|
19
09471-12076-000
Bulb (12v,5w)
TX |
09471-12076-000 |
— | ||
| replacement | |||||
|
19
|
19
09471-12216-000 BULB(12V5W)Bulb (12v5w) TX |
09471-12216-000 |
from US $4.32 |
||
|
20
|
20
36118-85000-000
ソケット,フロントポジションランプ
TX |
36118-85000-000 |
— | ||
| replacement | |||||
|
20
|
20
35918-70B00-000 SOCKET,LICENSE LAMPTX |
35918-70B00-000 |
US $20.06 |
||
|
21
|
21
36410-85010-000
LAMP ASSY,SIDE TURN SIG
|
36410-85010-000 |
— | ||
|
22
|
22
36420-85010-000
Unit, turn signal lamp
|
36420-85010-000 |
— | ||
|
23
|
23
09471-12081-000
Bulb (12v,5w)
|
09471-12081-000 |
— | ||
| replacement | |||||
|
23
|
23
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $4.32 |
||
|
24
|
24
36413-85000-000
ガスケット,ベース
|
36413-85000-000 |
— | ||
