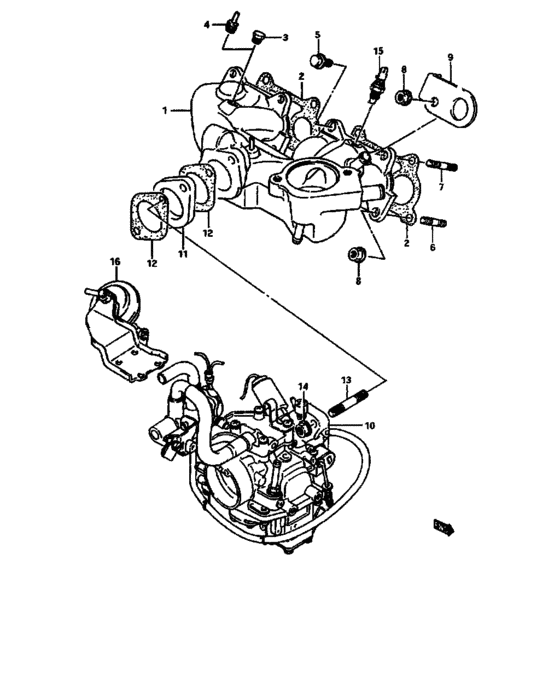

Intake manifold and carburetor (INTAKE MANIFOLD AND CARBURETOR) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-85250-000
Manifold, intake
|
13110-85250-000 |
— | ||
| replacement | |||||
|
1
|
1
13110-85X57-000 MANIFOLD,INTK |
13110-85X57-000 |
US $897.60 |
||
|
1
|
1
13110-85280-000
Manifold, intake
DA21V-122699~ |
13110-85280-000 |
— | ||
| replacement | |||||
|
1
|
1
13110-85X57-000 MANIFOLD,INTKDA21V-122699~ |
13110-85X57-000 |
US $897.60 |
||
|
2
|
2
13119-73001-000
Gasket, intake menifold
|
13119-73001-000 |
— | ||
| replacement | |||||
|
2
|
2
13119-73001-H17 GASKET,INTK MANF |
13119-73001-H17 |
US $2.24 |
||
|
3
|
3
09246-04002-000
プラグ
N/AIR CON |
09246-04002-000 |
— | ||
| replacement | |||||
|
3
|
3
09246-04005-000 PLUGPlug, cylinder head cover N/AIR CON |
09246-04005-000 |
from US $2.72 |
||
|
4
|
4
95562-78190-000
ユニオン,バキュームホース
W/AIR CON |
95562-78190-000 |
— | ||
| replacement | |||||
|
4
|
4
95562-78540-000 UNION,VACUUM HOSEW/AIR CON |
95562-78540-000 |
US $9.83 |
||
|
5
|
5
01517-08203-000
ボルト
|
01517-08203-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
5
|
5
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
6
|
6
01411-08203-000
Stud 8x20
|
01411-08203-000 |
— | ||
| replacement | |||||
|
6
|
6
01411-0820B-000 BOLT,STUD |
01411-0820B-000 |
US $1.12 |
||
|
7
|
7
01411-08253-000
New Genuine Part
|
01411-08253-000 |
— | ||
| replacement | |||||
|
7
|
7
01411-0825A-000 BOLT,STUD |
01411-0825A-000 |
US $1.12 |
||
|
8
|
8
08316-16083-000 NutNut |
08316-16083-000 |
US $3.06 |
||
| replacement | |||||
|
8
|
8
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
9
|
9
11851-79108-000
Hook, engine
|
11851-79108-000 |
— | ||
|
10
|
10
13200-85220-000
Carburetor assy
|
13200-85220-000 |
— | ||
|
10
|
10
13200-85260-000
Carburetor assy
DA21V-122699~ |
13200-85260-000 |
— | ||
|
11
|
11
13121-80000-000 INSULATOR,CARBURETOR |
13121-80000-000 |
US $15.20 |
||
|
12
|
12
13125-80000-000
Joint de bride
|
13125-80000-000 |
— | ||
| replacement | |||||
|
12
|
12
13125-80000-H17
GASKET,CARB
|
13125-80000-H17 |
— | ||
|
13
|
13
09108-08169-000
Stud bolt
|
09108-08169-000 |
— | ||
| replacement | |||||
|
13
|
13
01421-0835A-000 BOLT,STUDStud bolt (8x35) |
01421-0835A-000 |
from US $1.44 |
||
|
14
|
14
08316-16083-000 NutNut |
08316-16083-000 |
US $3.06 |
||
| replacement | |||||
|
14
|
14
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
15
|
15
34850-82001-000
Gauge assy, water temperature
<-34850-82000 |
34850-82001-000 |
— | ||
| replacement | |||||
|
15
|
15
34850-50A00-000 GAUGE ASSY,WATER TEMPGauge assy, water temperature <-34850-82000 |
34850-50A00-000 |
from US $40.80 |
||
|
16
|
16
95550-85220-000
Idle up assy, air con
W/AIR CON |
95550-85220-000 |
— | ||
|
16
|
16
95550-85200-000
IDLE UP ASSY,A/C
W/AIR CON,DA21V-122699~ |
95550-85200-000 |
— | ||
