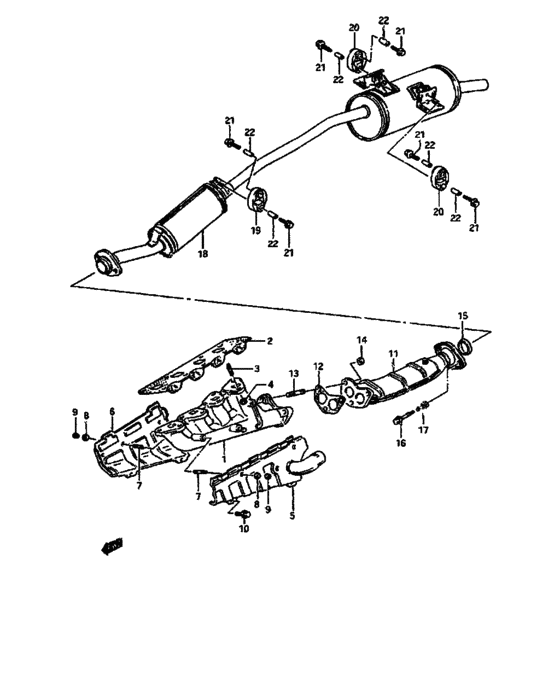

Muffler (V) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-85210-000
MANIFOLD,EXH
|
14111-85210-000 |
— | ||
|
1
|
1
14111-85220-000
Manifold, exhaust
DA21V-122699~ |
14111-85220-000 |
— | ||
|
2
|
2
14140-79200-000
Gasket
|
14140-79200-000 |
— | ||
| replacement | |||||
|
2
|
2
14140-85200-000 GASKET,EXH MANF |
14140-85200-000 |
US $20 |
||
|
3
|
3
01411-08253-000
New Genuine Part
|
01411-08253-000 |
— | ||
| replacement | |||||
|
3
|
3
01411-0825A-000 BOLT,STUD |
01411-0825A-000 |
US $1.12 |
||
|
4
|
4
08310-11083-000
ナット
|
08310-11083-000 |
— | ||
| replacements | |||||
|
4
|
4
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
4
|
4
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
5
|
5
14120-85210-000
Cover, upper
|
14120-85210-000 |
— | ||
| replacement | |||||
|
5
|
5
14120-85220-000
COVER,EXH MANIFOLD
|
14120-85220-000 |
— | ||
|
5
|
5
14120-85220-000
COVER,EXH MANIFOLD
DA21V-122699~ |
14120-85220-000 |
— | ||
|
6
|
6
14125-85201-000
COVER,LOWER
<-14125-85200 |
14125-85201-000 |
— | ||
|
7
|
7
01411-06123-000
Bolt, stud
|
01411-06123-000 |
— | ||
| replacement | |||||
|
7
|
7
01411-0612A-000 BOLT,STUD |
01411-0612A-000 |
from US $0.67 |
||
|
8
|
8
08322-21063-000
Washer
|
08322-21063-000 |
— | ||
| replacement | |||||
|
8
|
8
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
9
|
9
08310-11063-000 Nut m6x1x5 |
08310-11063-000 |
US $1.07 |
||
| replacements | |||||
|
9
|
9
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
9
|
9
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
10
|
10
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
10
|
10
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
11
|
11
14190-85200-000
PIPE,EXHAUST
|
14190-85200-000 |
— | ||
|
12
|
12
14181-80000-000
Gasket, exhaust pipe
|
14181-80000-000 |
— | ||
| replacement | |||||
|
12
|
12
14181-85200-000 GASKET,EXH PIPE |
14181-85200-000 |
US $6.24 |
||
|
13
|
13
01411-10253-000
New Genuine Part
|
01411-10253-000 |
— | ||
| replacement | |||||
|
13
|
13
01411-1025A-000 BOLT,STUD |
01411-1025A-000 |
US $1.60 |
||
|
14
|
14
09159-10017-000
ナット
|
09159-10017-000 |
— | ||
| replacement | |||||
|
14
|
14
09159-10016-000 NUTNut, clamp bracket |
09159-10016-000 |
US $2.24 |
||
|
15
|
15
14183-82601-000
リング,シール
|
14183-82601-000 |
— | ||
| replacement | |||||
|
15
|
15
14183-76A00-000 RING,SEAL EXH PIPE |
14183-76A00-000 |
from US $11.57 |
||
|
16
|
16
09119-10042-000
ボルト,10X65
|
09119-10042-000 |
— | ||
| replacement | |||||
|
16
|
16
09119-10041-000 BOLT(10X65) |
09119-10041-000 |
from US $5.92 |
||
|
17
|
17
14492-82600-000
Spring
|
14492-82600-000 |
— | ||
| replacement | |||||
|
17
|
17
14492-67D00-000 SPRING,EXH PIPE |
14492-67D00-000 |
from US $5.69 |
||
|
18
|
18
14300-85710-000
MUFFLER
|
14300-85710-000 |
— | ||
|
18
|
18
14300-85720-000
Muffler
DA21V-122699~ |
14300-85720-000 |
— | ||
| replacement | |||||
|
18
|
18
14300-85721-000
MUFFLER
DA21V-122699~ |
14300-85721-000 |
— | ||
|
19
|
19
14282-78010-000
マウンチング,マフラ
|
14282-78010-000 |
— | ||
| replacement | |||||
|
19
|
19
14281-60G11-000 MOUNTING,MUFFLER(HS60) |
14281-60G11-000 |
US $5.78 |
||
|
20
|
20
14281-79010-000
Mounting, muffler
|
14281-79010-000 |
— | ||
| replacement | |||||
|
20
|
20
14281-60G11-000 MOUNTING,MUFFLER(HS60) |
14281-60G11-000 |
US $5.78 |
||
|
21
|
21
01517-08353-000
Bolt
|
01517-08353-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
21
|
21
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
22
|
22
09180-08057-000
Spacer
|
09180-08057-000 |
— | ||
| replacement | |||||
|
22
|
22
09180-08227-000 SPACER(8.2X12.5X23.5) |
09180-08227-000 |
from US $1.92 |
||
