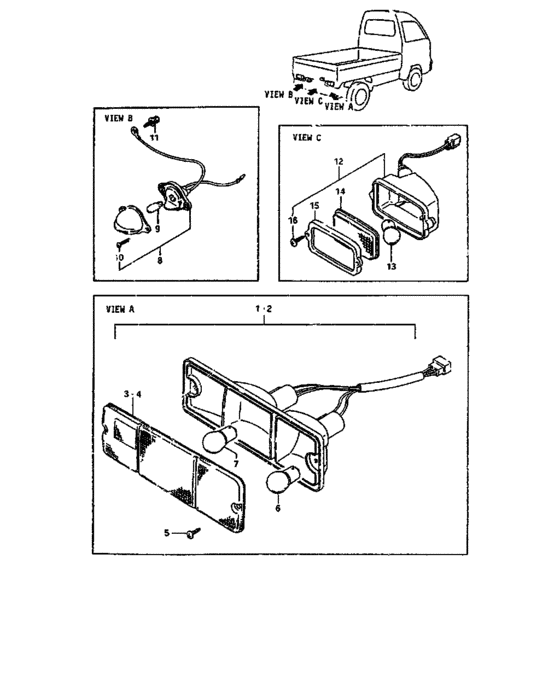

Rear lamp (K) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35603-79001-000
ランプアッシ,リヤコンビネーション,ライト
|
35603-79001-000 |
— | ||
| replacement | |||||
|
1
|
1
35603-79004-000 LAMP ASSY,RR COMB,R |
35603-79004-000 |
US $75.20 |
||
|
2
|
2
35604-79001-000
ランプアッシ,リヤコンビネーション,レフト
|
35604-79001-000 |
— | ||
| replacement | |||||
|
2
|
2
35604-79004-000 LAMP ASSY,RR COMB,L |
35604-79004-000 |
US $75.20 |
||
|
3
|
3
35652-79000-000
レンズ,リヤコンビランプ,ライト
|
35652-79000-000 |
— | ||
| replacement | |||||
|
3
|
3
35652-79001-000 LENS,RR COMB LAMP,R |
35652-79001-000 |
US $13.38 |
||
|
4
|
4
35672-79000-000
レンズ,リヤコンビランプ,レフト
|
35672-79000-000 |
— | ||
| replacement | |||||
|
4
|
4
35672-79001-000 LENS,RR COMB LAMP,L |
35672-79001-000 |
US $13.38 |
||
|
5
|
5
03112-05209-000
Screw
|
03112-05209-000 |
— | ||
| replacement | |||||
|
5
|
5
03111-0520A-000 SCREW |
03111-0520A-000 |
US $0.80 |
||
|
6
|
6
09471-12056-000
Bulb (12v, 21w)
|
09471-12056-000 |
— | ||
| replacement | |||||
|
6
|
6
09471-12045-000 BULB(12V21W) |
09471-12045-000 |
from US $2.54 |
||
|
7
|
7
09471-12057-000
Bulb (12v, 21/5w)
|
09471-12057-000 |
— | ||
| replacements | |||||
|
7
|
7
09471-12128-000 BULB(12V21/5W,BF141-49642A) |
09471-12128-000 |
from US $7.20 |
||
|
7
|
7
09471-12083-000 BULB(12V21/5W) |
09471-12083-000 |
from US $4.75 |
||
|
8
|
8
35910-80001-000
ランプアッシ,ライセンス(グレー)
|
35910-80001-000 |
— | ||
| replacement | |||||
|
8
|
8
35910-80011-000 Lamp assy,license |
35910-80011-000 |
US $29.60 |
||
|
9
|
9
09471-12076-000
Bulb (12v,5w)
|
09471-12076-000 |
— | ||
| replacement | |||||
|
9
|
9
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $2.84 |
||
|
10
|
10
03111-04165-000
Screw
|
03111-04165-000 |
— | ||
| replacement | |||||
|
10
|
10
03111-0416A-000 SCREW |
03111-0416A-000 |
US $0.80 |
||
|
12
|
12
36250-85020-000
Lamp assy, back up
|
36250-85020-000 |
— | ||
| replacement | |||||
|
12
|
12
36250-85021-000 LAMP ASSY,BACK UP |
36250-85021-000 |
US $36.25 |
||
|
13
|
13
09471-12064-000
Bulb (12v,23/8w)
|
09471-12064-000 |
— | ||
| replacement | |||||
|
13
|
13
09471-12045-000 BULB(12V21W) |
09471-12045-000 |
from US $2.54 |
||
|
14
|
14
36252-77000-000
LENS
|
36252-77000-000 |
— | ||
|
15
|
15
36253-77000-000
GASKET
|
36253-77000-000 |
— | ||
|
16
|
16
03242-04209-000
Screw
|
03242-04209-000 |
— | ||
