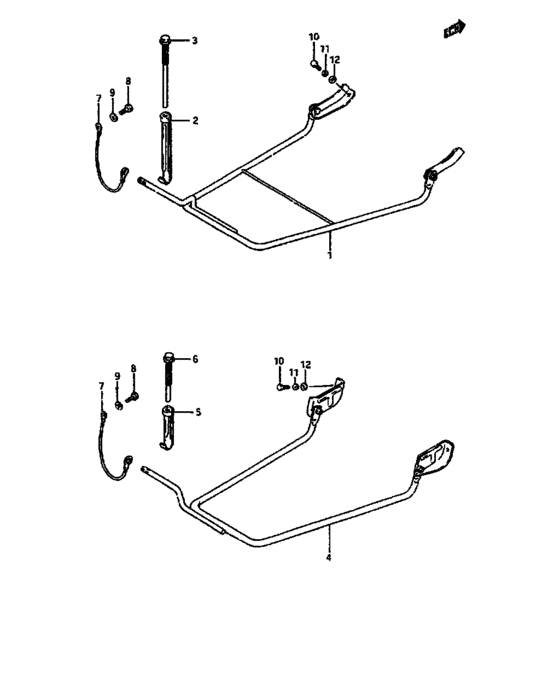

Tire carrier (V) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71510-85511-000
キャリア,スペアタイヤ
HIGH ROOF,<-71510-85510 |
71510-85511-000 |
— | ||
| replacement | |||||
|
1
|
1
71510-85512-000
CARRIER,SPARE TIRE
HIGH ROOF,<-71510-85510 |
71510-85512-000 |
— | ||
|
2
|
2
71520-85510-000
HOOK,SPARE TIRE CARRIER
HIGH ROOF |
71520-85510-000 |
— | ||
|
3
|
3
71531-85510-000
BOLT,SPARE TIRE HOOK
HIGH ROOF |
71531-85510-000 |
— | ||
|
4
|
4
71510-85700-000
Carrier, spare tire
STD ROOF |
71510-85700-000 |
— | ||
| replacement | |||||
|
4
|
4
71510-85701-000
CARRIER,SPARE TIRE
STD ROOF |
71510-85701-000 |
— | ||
|
5
|
5
71520-85500-000
Hook, carrier
STD ROOF |
71520-85500-000 |
— | ||
| replacements | |||||
|
5
|
5
71520-79A10-000 HOOK,SPARE TIRE CARRIERSTD ROOF |
71520-79A10-000 |
from US $4.55 |
||
|
5
|
5
71520-79A00-000
フック,スペアタイヤキャリアリヤ
STD ROOF |
71520-79A00-000 |
— | ||
|
6
|
6
71531-85500-000
BOLT,SPARE TIRE HOOK
STD ROOF |
71531-85500-000 |
— | ||
|
7
|
7
71560-85500-000 CABLE,SPARE TIRE CARRIER |
71560-85500-000 |
US $5.59 |
||
|
8
|
8
09100-06075-000 BOLT(6X14)Bolt, carrier (6x14) |
09100-06075-000 |
US $1.12 |
||
|
9
|
9
09161-10006-000
New Genuine Part
|
09161-10006-000 |
— | ||
| replacement | |||||
|
9
|
9
09161-10007-000 WASHER(10X17X2) |
09161-10007-000 |
from US $2.35 |
||
|
10
|
10
01107-06126-000
Bolt 6x12
|
01107-06126-000 |
— | ||
| replacement | |||||
|
10
|
10
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
11
|
11
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
11
|
11
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
12
|
12
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
12
|
12
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
