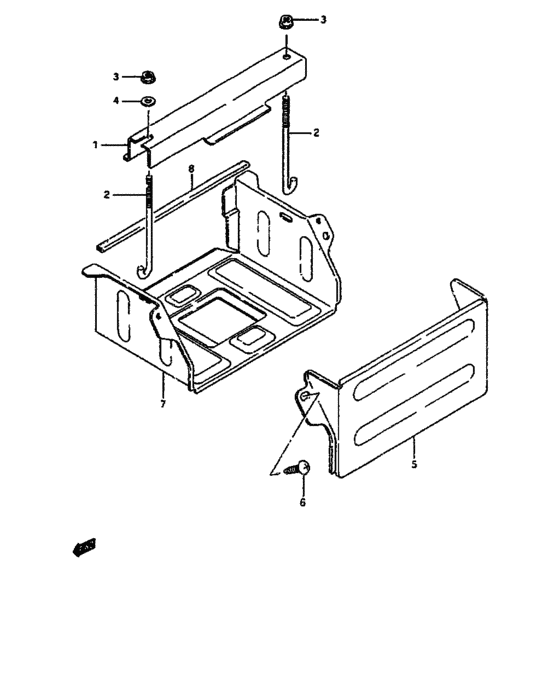

Battery box (K) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57281-67000-000
バンド,バッテリ
|
57281-67000-000 |
— | ||
| replacement | |||||
|
1
|
1
72511-51F01-000 BAND,BATTERY |
72511-51F01-000 |
US $6.56 |
||
|
2
|
2
72729-64000-000 BOLT,BATTERY L:168 |
72729-64000-000 |
US $1.92 |
||
|
3
|
3
08310-11056-000
Nut
|
08310-11056-000 |
— | ||
| replacement | |||||
|
3
|
3
08310-0005A-000 NUT |
08310-0005A-000 |
from US $0.80 |
||
|
4
|
4
09160-05013-000 WASHER(5.2X16X1)Washer |
09160-05013-000 |
from US $0.76 |
||
|
5
|
5
65277-67003-000 COVER,BATTERY |
65277-67003-000 |
US $17.60 |
||
|
6
|
6
03242-06129-000
New Genuine Part
|
03242-06129-000 |
— | ||
| replacement | |||||
|
6
|
6
03241-0612A-000 SCREW |
03241-0612A-000 |
US $0.80 |
||
|
7
|
7
59435-85000-000 BOX,BATTERY |
59435-85000-000 |
US $16.80 |
||
|
8
|
8
57279-67000-000 PROTECTORL:200->100 |
57279-67000-000 |
US $1.52 |
||
