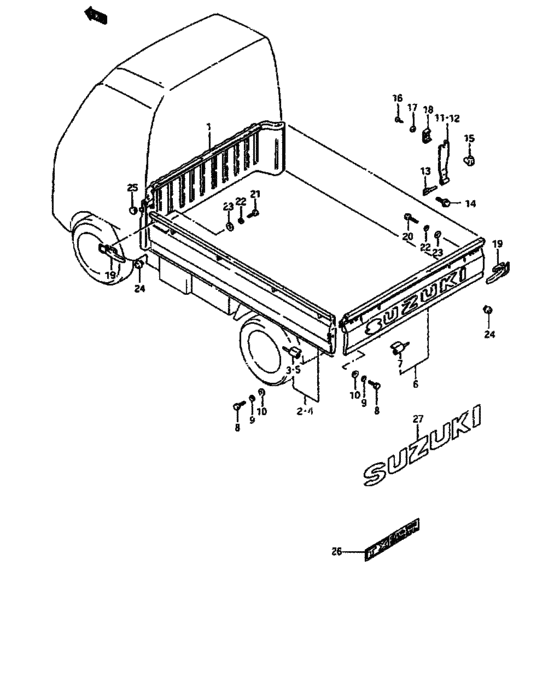

Deck gate (K) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66600-85090-000
Panel assy, deck front
<-66600-85010 |
66600-85090-000 |
— | ||
|
2
|
2
67100-85090-000
Panel assy,side gate,r
<-67100-85010 |
67100-85090-000 |
— | ||
|
3
|
3
67170-85090-000 HINGE,SIDE GATE<-67170-85010 |
67170-85090-000 |
US $28.13 |
||
|
4
|
4
67400-85090-000
PANEL ASSY,SIDE GATE,L
<-67400-85010 |
67400-85090-000 |
— | ||
|
5
|
5
67470-85090-000
Hinge,side gate
<-67470-85010 |
67470-85090-000 |
— | ||
|
6
|
6
67700-85200-000
Panel assy, rear gate
|
67700-85200-000 |
— | ||
| replacement | |||||
|
6
|
6
67700-85080-000
GATE ASSY,RR
|
67700-85080-000 |
— | ||
|
7
|
7
67170-85090-000 HINGE,SIDE GATE |
67170-85090-000 |
US $28.13 |
||
|
8
|
8
01107-06126-000
Bolt 6x12
|
01107-06126-000 |
— | ||
| replacement | |||||
|
8
|
8
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
9
|
9
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
9
|
9
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
10
|
10
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
10
|
10
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
11
|
11
67931-85091-000
Stay,side gate,r
TYPE 1 |
67931-85091-000 |
— | ||
|
11
|
11
67931-85021-000
Stay, side gate fixed rh
TYPE 2 |
67931-85021-000 |
— | ||
| replacement | |||||
|
11
|
11
67931-85091-000
Stay,side gate,r
TYPE 2 |
67931-85091-000 |
— | ||
|
12
|
12
67941-85091-000
Fixed stay,side gate,l
TYPE 1 |
67941-85091-000 |
— | ||
|
12
|
12
67941-85021-000
Stay, side gate fixed lh
TYPE 2 |
67941-85021-000 |
— | ||
| replacement | |||||
|
12
|
12
67941-85091-000
Fixed stay,side gate,l
TYPE 2 |
67941-85091-000 |
— | ||
|
13
|
13
73582-79032-000
Shaft, fixed stay
|
73582-79032-000 |
— | ||
|
14
|
14
01517-08128-000
Bolt
|
01517-08128-000 |
— | ||
| replacement | |||||
|
14
|
14
01550-08127-000 BOLTBolt, clamp |
01550-08127-000 |
from US $4.49 |
||
|
15
|
15
72821-85012-000 HANDLE,FIXED STAY<-72821-85010 |
72821-85012-000 |
US $3.39 |
||
|
16
|
16
03241-05163-000
Screw, bracket
|
03241-05163-000 |
— | ||
| replacement | |||||
|
16
|
16
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
17
|
17
09160-05037-000 WASHER(5.5X16X1.2) |
09160-05037-000 |
from US $0.91 |
||
|
18
|
18
72822-85010-000
SPACER,FIXED STAY
|
72822-85010-000 |
— | ||
|
19
|
19
73910-52002-000 HANDLE,GATE LOCK |
73910-52002-000 |
US $56.80 |
||
|
20
|
20
01107-06206-000
Bolt, front
|
01107-06206-000 |
— | ||
| replacement | |||||
|
20
|
20
01500-0620A-000 BOLT |
01500-0620A-000 |
from US $0.76 |
||
|
21
|
21
01107-06126-000
Bolt 6x12
|
01107-06126-000 |
— | ||
| replacement | |||||
|
21
|
21
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
22
|
22
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
22
|
22
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
23
|
23
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
23
|
23
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
24
|
24
73941-79000-000
ストッパ,ゲートオープン
|
73941-79000-000 |
— | ||
| replacement | |||||
|
24
|
24
73941-79010-000 STOPPER,GATE OPEN |
73941-79010-000 |
from US $5.25 |
||
|
25
|
25
09321-08005-000
CUSHION
|
09321-08005-000 |
— | ||
| replacement | |||||
|
25
|
25
09321-08025-000 Cushion |
09321-08025-000 |
from US $1.76 |
||
|
26
|
26
77821-85210-000
EMBLEM,1000
|
77821-85210-000 |
— | ||
|
27
|
27
77841-85200-019
EMBLEM,SUZUKI MARK SUPPLY
|
77841-85200-019 |
— | ||
