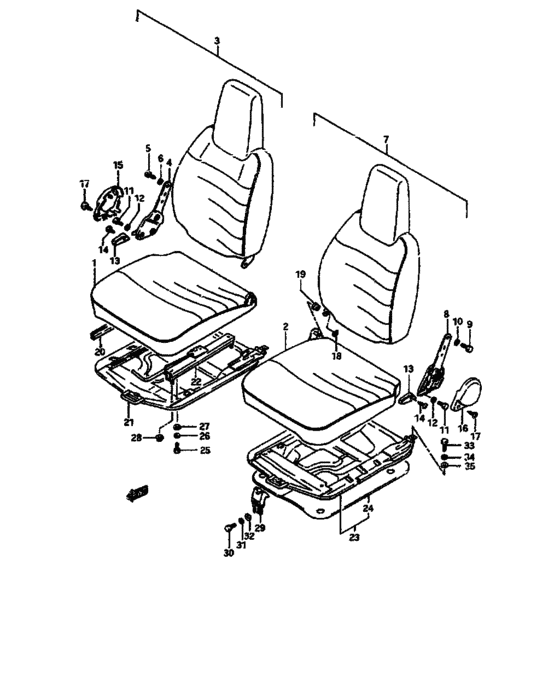

Front seat (V:STD ROOF TA) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85101-85531-7WS
Cushion assy, rh
TYPE 1 |
85101-85531-7WS |
— | ||
|
1
|
1
85101-85531-7WV
Cushion assy, rh
TYPE 1 |
85101-85531-7WV |
— | ||
|
1
|
1
85101-85531-9WR
Cushion assy, rh
TYPE 2 |
85101-85531-9WR |
— | ||
|
2
|
2
85102-85540-7WS
クッションアッシ,フロントシート,レフト
TYPE 1 |
85102-85540-7WS |
— | ||
|
2
|
2
85102-85540-7WV
Cushion assy, lh
TYPE 1 |
85102-85540-7WV |
— | ||
|
2
|
2
85102-85540-9WR
クッションアッシ,フロントシート,レフト
TYPE 2 |
85102-85540-9WR |
— | ||
|
3
|
3
85301-85720-7WS
Back assy, rh
TYPE 1 |
85301-85720-7WS |
— | ||
|
3
|
3
85301-85720-7WV
Back assy, rh
TYPE 1 |
85301-85720-7WV |
— | ||
|
3
|
3
85301-85720-9WR
Back assy, rh
TYPE 2 |
85301-85720-9WR |
— | ||
|
4
|
4
85210-85501-000 RECLINING ASSY,FR SEAT,R |
85210-85501-000 |
US $131.38 |
||
|
5
|
5
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
5
|
5
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
6
|
6
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
6
|
6
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
6
|
6
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
7
|
7
85302-85720-7WS
Back assy, lh
TYPE 1 |
85302-85720-7WS |
— | ||
|
7
|
7
85302-85720-7WV
Back assy, lh
TYPE 1 |
85302-85720-7WV |
— | ||
|
7
|
7
85302-85720-9WR
Back assy, lh
TYPE 2 |
85302-85720-9WR |
— | ||
|
8
|
8
85710-85501-000 RECLINING ASSY,FR SEAT,L |
85710-85501-000 |
US $143.20 |
||
|
9
|
9
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
9
|
9
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
10
|
10
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
10
|
10
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
10
|
10
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
11
|
11
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
11
|
11
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
12
|
12
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
12
|
12
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
12
|
12
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
13
|
13
85211-84000-281
ノブ,リクライニングレバー
|
85211-84000-281 |
— | ||
| replacement | |||||
|
13
|
13
85211-84000-5PK KNOB,RECLINING |
85211-84000-5PK |
US $2.56 |
||
|
14
|
14
03231-05105-000
SCREW
|
03231-05105-000 |
— | ||
| replacement | |||||
|
14
|
14
03231-0510B-000
Screw
|
03231-0510B-000 |
— | ||
|
15
|
15
85221-84000-281
カバー,リクライニングアッシ,ライト(ブラック)
|
85221-84000-281 |
— | ||
| replacement | |||||
|
15
|
15
85221-84000-5PK COVER,RECLINING ASSY,R |
85221-84000-5PK |
US $23.20 |
||
|
16
|
16
85721-84000-281
カバー,リクライニングアッシ,レフト(ブラック)
|
85721-84000-281 |
— | ||
| replacement | |||||
|
16
|
16
85721-84000-5PK COVER,RECLINING ASSY,L |
85721-84000-5PK |
US $23.20 |
||
|
17
|
17
03241-05125-000
Screw
|
03241-05125-000 |
— | ||
| replacement | |||||
|
17
|
17
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
18
|
18
08332-11068-000
E ring
|
08332-11068-000 |
— | ||
| replacements | |||||
|
18
|
18
08332-1106B-000 E RINGCirclip |
08332-1106B-000 |
from US $0.90 |
||
|
18
|
18
08332-1106A-000 E RINGE ring, pinion |
08332-1106A-000 |
from US $0.77 |
||
|
19
|
19
09306-08003-000
Bush
|
09306-08003-000 |
— | ||
| replacement | |||||
|
19
|
19
09306-08016-000 BUSH |
09306-08016-000 |
from US $4.28 |
||
|
20
|
20
85292-85000-000 SPACER,FRONT SEAT SLIDE |
85292-85000-000 |
US $2.56 |
||
|
21
|
21
85410-85720-000
Panel, seat riser rh
|
85410-85720-000 |
— | ||
|
22
|
22
86610-85001-000
Rail assy, slide rh
|
86610-85001-000 |
— | ||
| replacement | |||||
|
22
|
22
86610-85012-000
RAIL ASSY,FR SEAT,R
|
86610-85012-000 |
— | ||
|
23
|
23
85810-85730-000
Panel, seat riser lh
<-85910-85710 |
85810-85730-000 |
— | ||
|
24
|
24
85927-85000-000
インシュレータ,フロントシートライザ,レフト
|
85927-85000-000 |
— | ||
| replacement | |||||
|
24
|
24
85927-85001-000 INSULATOR,FR SEAT RISER,L |
85927-85001-000 |
US $36.80 |
||
|
25
|
25
01107-06126-000
Bolt 6x12
|
01107-06126-000 |
— | ||
| replacement | |||||
|
25
|
25
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
26
|
26
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
26
|
26
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
27
|
27
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
27
|
27
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
28
|
28
08316-26066-000
Nut 6mm
|
08316-26066-000 |
— | ||
| replacements | |||||
|
28
|
28
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
28
|
28
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
29
|
29
86650-85702-000 LOCK,FR SEAT |
86650-85702-000 |
US $14.90 |
||
|
30
|
30
01107-06165-000
Bolt
|
01107-06165-000 |
— | ||
| replacement | |||||
|
30
|
30
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
31
|
31
08321-21064-000
Lock washer
|
08321-21064-000 |
— | ||
| replacement | |||||
|
31
|
31
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
32
|
32
08322-21064-000
Washer
|
08322-21064-000 |
— | ||
| replacement | |||||
|
32
|
32
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
33
|
33
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
33
|
33
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
34
|
34
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
34
|
34
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
35
|
35
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
35
|
35
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
