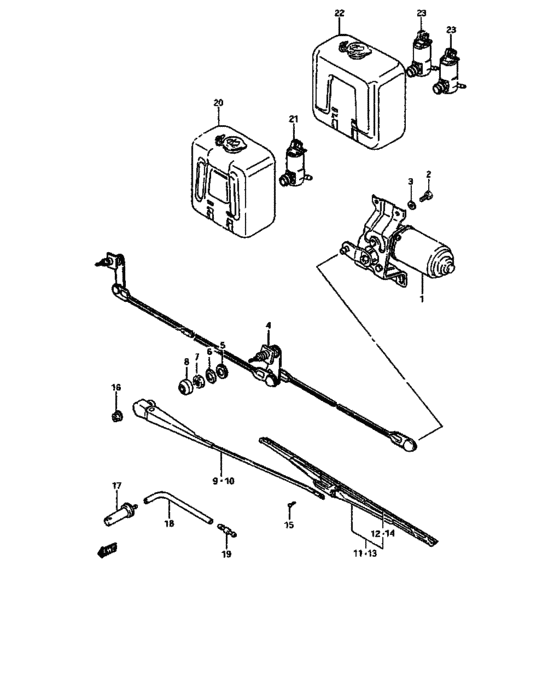

Front window wiper and washer (FRONT WINDOW WIPER AND WASHER) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38101-85010-000 MOTOR ASSY,WIPER |
38101-85010-000 |
US $383.04 |
||
|
1
|
1
38101-85000-000
モータアッシ,ワイパ
TA |
38101-85000-000 |
— | ||
| replacement | |||||
|
1
|
1
38101-85010-000 MOTOR ASSY,WIPERTA |
38101-85010-000 |
US $383.04 |
||
|
2
|
2
01107-06106-000
Bolt, plate
|
01107-06106-000 |
— | ||
| replacement | |||||
|
2
|
2
01500-0610B-000 BOLTBolt |
01500-0610B-000 |
from US $0.80 |
||
|
3
|
3
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
3
|
3
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
4
|
4
38102-85001-000
LINK ASSY,WIPER
<-38102-85000 |
38102-85001-000 |
— | ||
|
5
|
5
38272-71310-000
パッキン
|
38272-71310-000 |
— | ||
| replacements | |||||
|
5
|
5
38272-82C00-000 PACKING,WIPER PIVOT |
38272-82C00-000 |
US $2.24 |
||
|
5
|
5
38271-82C00-000 WASHER,WIPER PIVOT |
38271-82C00-000 |
US $2.56 |
||
|
6
|
6
38271-71310-000
ワッシャ
|
38271-71310-000 |
— | ||
| replacements | |||||
|
6
|
6
38271-82C00-000 WASHER,WIPER PIVOT |
38271-82C00-000 |
US $2.56 |
||
|
6
|
6
38272-82C00-000 PACKING,WIPER PIVOT |
38272-82C00-000 |
US $2.24 |
||
|
7
|
7
38278-67011-000 NUT |
38278-67011-000 |
US $1.60 |
||
|
8
|
8
38274-85000-000 CAP |
38274-85000-000 |
US $1.60 |
||
|
9
|
9
38310-85010-000
Arm assy, wiper rh
|
38310-85010-000 |
— | ||
|
10
|
10
38330-85010-000
Arm assy, wiper lh
|
38330-85010-000 |
— | ||
|
11
|
11
38340-85010-000
Blade assy, wiper rh
|
38340-85010-000 |
— | ||
|
12
|
12
38346-85010-000
Blade
|
38346-85010-000 |
— | ||
|
13
|
13
38340-78400-000
BLADE ASSY,WIPER
|
38340-78400-000 |
— | ||
|
14
|
14
38346-78010-000
BLADE
|
38346-78010-000 |
— | ||
|
15
|
15
38319-75000-000 SCREW,WIPER BLADE |
38319-75000-000 |
US $2.40 |
||
|
16
|
16
08316-16066-000
Nut
|
08316-16066-000 |
— | ||
| replacement | |||||
|
16
|
16
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
17
|
17
38481-85000-000
ノズル,ウォッシャ
|
38481-85000-000 |
— | ||
| replacement | |||||
|
17
|
17
38480-77500-000 NOZZLE ASSY,WASHER |
38480-77500-000 |
US $14.56 |
||
|
18
|
18
38491-55111-000
ホース,ウォッシャ,L:1000
|
38491-55111-000 |
— | ||
| replacement | |||||
|
18
|
18
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) |
38491-61A00-000 |
US $5.12 |
||
|
19
|
19
38496-66010-000
コネクタ
|
38496-66010-000 |
— | ||
| replacement | |||||
|
19
|
19
38496-56B00-000 CONNECTOR |
38496-56B00-000 |
US $1.60 |
||
|
20
|
20
38456-67011-000
Tank assy, washer
|
38456-67011-000 |
— | ||
|
21
|
21
38410-66113-000 PUMP ASSY,WASHERPump assy, washer |
38410-66113-000 |
US $59.20 |
||
|
22
|
22
38834-85000-000
Tank assy,window washer
W/REAR WIPER,<-38834-79510 |
38834-85000-000 |
— | ||
|
23
|
23
38410-66113-000 PUMP ASSY,WASHERPump assy, washer W/REAR WIPER |
38410-66113-000 |
US $59.20 |
||
