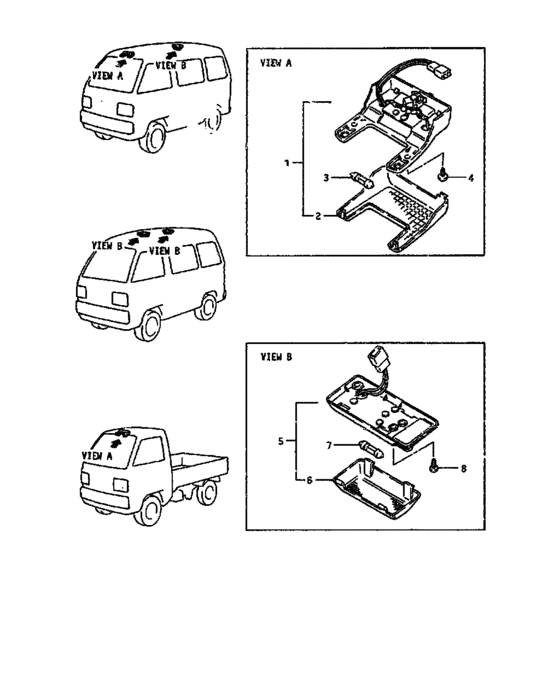

Room lamp (ROOM LAMP) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36210-05010-000
Lamp assy, front room
|
36210-05010-000 |
— | ||
|
1
|
1
36210-85040-000
Lamp assy, front room
STD ROOF |
36210-85040-000 |
— | ||
| replacement | |||||
|
1
|
1
36210-85040-5PK
LAMP ASSY,ROOM
STD ROOF |
36210-85040-5PK |
— | ||
|
2
|
2
36212-78001-000 LENS,ROOM LAMP |
36212-78001-000 |
from US $6.21 |
||
|
3
|
3
09471-12073-000 BULB(12V,5W) |
09471-12073-000 |
from US $2.40 |
||
|
4
|
4
03241-05108-000
New Genuine Part
|
03241-05108-000 |
— | ||
| replacements | |||||
|
4
|
4
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
4
|
4
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
5
|
5
36210-85020-000
Lamp assy, rear room
HIGH ROOF |
36210-85020-000 |
— | ||
| replacement | |||||
|
5
|
5
36210-85020-6GS
Lamp assy,room
HIGH ROOF |
36210-85020-6GS |
— | ||
|
6
|
6
36212-85020-000 LENSHIGH ROOF |
36212-85020-000 |
US $5.62 |
||
|
7
|
7
09471-12073-000 BULB(12V,5W)HIGH ROOF |
09471-12073-000 |
from US $2.40 |
||
|
8
|
8
03211-04168-000
スクリュ
HIGH ROOF |
03211-04168-000 |
— | ||
| replacement | |||||
|
8
|
8
03212-04169-000 SCREWScrew HIGH ROOF |
03212-04169-000 |
from US $2.13 |
||
