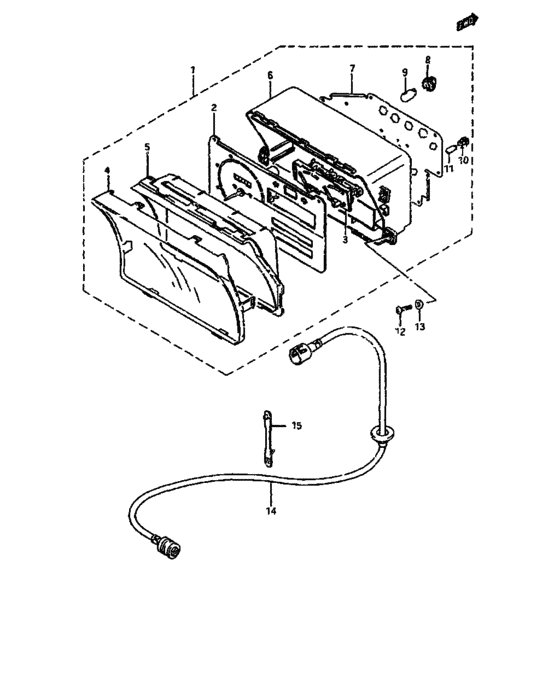

Speedometer (V) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-85151-000
Speedometer assy
TYPE 1 |
34100-85151-000 |
— | ||
|
1
|
1
34100-85620-000
Speedometer assy
TYPE 2 |
34100-85620-000 |
— | ||
|
2
|
2
34120-85150-000
Body, speedometer
TYPE 1 |
34120-85150-000 |
— | ||
|
2
|
2
34120-85620-000
Body, speedometer
TYPE 2 |
34120-85620-000 |
— | ||
|
3
|
3
34320-85020-000 BODY ASSY,FUEL&TEMP |
34320-85020-000 |
US $89.79 |
||
|
4
|
4
34112-84000-000 GLASS |
34112-84000-000 |
US $17.60 |
||
|
5
|
5
34111-84000-000
バイザ
|
34111-84000-000 |
— | ||
|
6
|
6
34151-85150-000
Case
|
34151-85150-000 |
— | ||
|
7
|
7
34152-84160-000
Print, meter
|
34152-84160-000 |
— | ||
| replacement | |||||
|
7
|
7
34152-85611-000
PLATE,PRINTED
|
34152-85611-000 |
— | ||
|
8
|
8
34173-64010-000
ソケット
|
34173-64010-000 |
— | ||
| replacement | |||||
|
8
|
8
34172-50E10-000 SOCKET |
34172-50E10-000 |
US $1.60 |
||
|
9
|
9
09471-12028-000 BULB(12V3.4W,T10) |
09471-12028-000 |
from US $1.98 |
||
|
10
|
10
34174-82100-000
ソケット
|
34174-82100-000 |
— | ||
| replacement | |||||
|
10
|
10
34175-78900-000 SOCKET |
34175-78900-000 |
US $1.52 |
||
|
11
|
11
09471-12055-000 BULB(14V1.4W,T5) |
09471-12055-000 |
from US $2.40 |
||
|
12
|
12
03511-05168-000
スクリュ
|
03511-05168-000 |
— | ||
| replacement | |||||
|
12
|
12
03511-0516A-000 SCREW |
03511-0516A-000 |
from US $0.76 |
||
|
13
|
13
08322-21057-000
Washer
|
08322-21057-000 |
— | ||
| replacement | |||||
|
13
|
13
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
14
|
14
34910-85001-000
CABLE ASSY,SPEEDOMETER
<-34910-85000 |
34910-85001-000 |
— | ||
|
15
|
15
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
