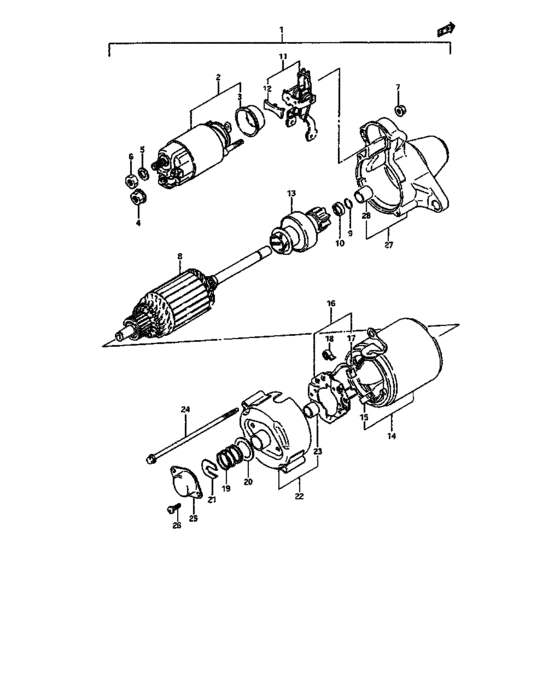

Starting motor (~DA21T-101155,~DA21V-102546) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-85020-000
モータアッシ,スターティング
<-31100-85010 |
31100-85020-000 |
— | ||
| replacement | |||||
|
1
|
1
31100-79X50-000 MOTOR ASSY,STARTING<-31100-85010 |
31100-79X50-000 |
US $540.80 |
||
|
2
|
2
31220-84010-000 SWITCH ASSY |
31220-84010-000 |
US $157.87 |
||
|
3
|
3
31221-78310-000
カバー,スイッチ
|
31221-78310-000 |
— | ||
|
4
|
4
31266-78221-000
ナット
|
31266-78221-000 |
— | ||
| replacements | |||||
|
4
|
4
08316-1008A-000 NUTNut, idle gear shaft |
08316-1008A-000 |
from US $0.76 |
||
|
4
|
4
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
5
|
5
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
5
|
5
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
5
|
5
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
6
|
6
08310-12086-000
ナット
|
08310-12086-000 |
— | ||
| replacements | |||||
|
6
|
6
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
6
|
6
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
7
|
7
31255-78210-000
ナット
|
31255-78210-000 |
— | ||
| replacements | |||||
|
7
|
7
08316-1006A-000 NUT |
08316-1006A-000 |
from US $0.80 |
||
|
7
|
7
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
8
|
8
31311-79620-000
ARMATURE,STARTING MOTOR
|
31311-79620-000 |
— | ||
|
9
|
9
31312-79010-000
RING,SNAP
|
31312-79010-000 |
— | ||
|
10
|
10
31313-79010-000 COLLAR,PINION STOP |
31313-79010-000 |
US $3.72 |
||
|
11
|
11
31191-85010-000
レバー,ピニオンドライブ
|
31191-85010-000 |
— | ||
|
12
|
12
31254-85010-000
シール,スイッチ
|
31254-85010-000 |
— | ||
|
13
|
13
31320-79620-000 CLUTCH ASSY |
31320-79620-000 |
US $109.30 |
||
|
14
|
14
31110-79010-000
YOKE ASSY
|
31110-79010-000 |
— | ||
|
15
|
15
31131-78221-000 BRUSH |
31131-78221-000 |
US $7.60 |
||
|
16
|
16
31173-79010-000
HOLDER,BRUSH
|
31173-79010-000 |
— | ||
|
17
|
17
31131-79010-000
ブラシ
|
31131-79010-000 |
— | ||
| replacement | |||||
|
17
|
17
31131-78221-000 BRUSH |
31131-78221-000 |
US $7.60 |
||
|
18
|
18
31135-79010-000
スプリング,ブラシ
|
31135-79010-000 |
— | ||
|
19
|
19
31371-78310-000
SPRING,STARTING MOTOR
|
31371-78310-000 |
— | ||
|
20
|
20
31264-78310-000
シール,スタータ
|
31264-78310-000 |
— | ||
|
21
|
21
31372-79010-000
PLATE
|
31372-79010-000 |
— | ||
|
22
|
22
31170-79620-000
ハウジングアッシ
|
31170-79620-000 |
— | ||
|
23
|
23
31172-79010-000
BUSH
|
31172-79010-000 |
— | ||
|
24
|
24
31821-79010-000
Bolt
|
31821-79010-000 |
— | ||
|
25
|
25
31174-79010-000
キャップ,コミュテータエンド
|
31174-79010-000 |
— | ||
|
26
|
26
31136-78310-000
スクリュ
|
31136-78310-000 |
— | ||
| replacements | |||||
|
26
|
26
02112-3416B-000 SCREW |
02112-3416B-000 |
from US $3.47 |
||
|
26
|
26
02112-34163-000
Screw
|
02112-34163-000 |
— | ||
|
27
|
27
31151-85010-000
ブラケットアッシ,フロント
|
31151-85010-000 |
— | ||
|
28
|
28
31152-79010-000 BUSH |
31152-79010-000 |
US $4.75 |
||
