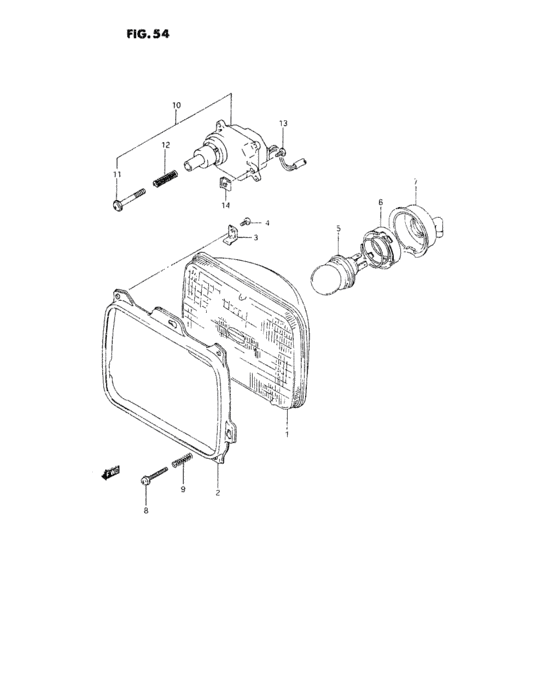

Headlamp (,2,Hungary) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- transmission
- 4MT
- grade
- DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35121-78030-000
Unit assy,head lamp
|
35121-78030-000 |
— | ||
|
1
|
1
35121-78040-000 UNIT ASSY,HEADLAMP,Germany,Hungary |
35121-78040-000 |
US $89.42 |
||
|
2
|
2
35131-85060-000 RIM,HEADLAMP |
35131-85060-000 |
US $19.20 |
||
|
3
|
3
35132-78020-000
RETAINER
|
35132-78020-000 |
— | ||
|
4
|
4
02112-04087-000 SCREW |
02112-04087-000 |
from US $0.80 |
||
|
5
|
5
09471-12048-000 BULB(12V45/40W)Bulb (12v,45/40w) PHILIPS NO.12620,EXECUTED LOCALLY |
09471-12048-000 |
US $182.20 |
||
|
6
|
6
35136-34670-000
SETTER,BULB
|
35136-34670-000 |
— | ||
|
7
|
7
35179-72600-000
COVER,HEADLAMP BULB
|
35179-72600-000 |
— | ||
|
8
|
8
09136-05031-000 SCREW(5X35) |
09136-05031-000 |
US $1.28 |
||
|
9
|
9
09440-09020-000 SPRING |
09440-09020-000 |
US $1.28 |
||
|
10
|
10
35190-85520-000
UNIT ASSY,HEADLAMP AIMING
|
35190-85520-000 |
— | ||
|
11
|
11
35151-78020-000
スクリュ,ヘッドランプ
|
35151-78020-000 |
— | ||
| replacement | |||||
|
11
|
11
09122-45001-000 SCREW(5X45) |
09122-45001-000 |
US $2.24 |
||
|
12
|
12
35154-77000-000
Spring
|
35154-77000-000 |
— | ||
| replacement | |||||
|
12
|
12
35154-80C01-000 SPRING,HEADLAMP |
35154-80C01-000 |
US $4.16 |
||
|
13
|
13
03241-04123-000
Screw
|
03241-04123-000 |
— | ||
| replacement | |||||
|
13
|
13
03242-0412B-000 SCREW |
03242-0412B-000 |
from US $0.80 |
||
|
14
|
14
09148-04018-000
ナット
|
09148-04018-000 |
— | ||
| replacement | |||||
|
14
|
14
09148-04011-000 NUT |
09148-04011-000 |
US $1.28 |
||
