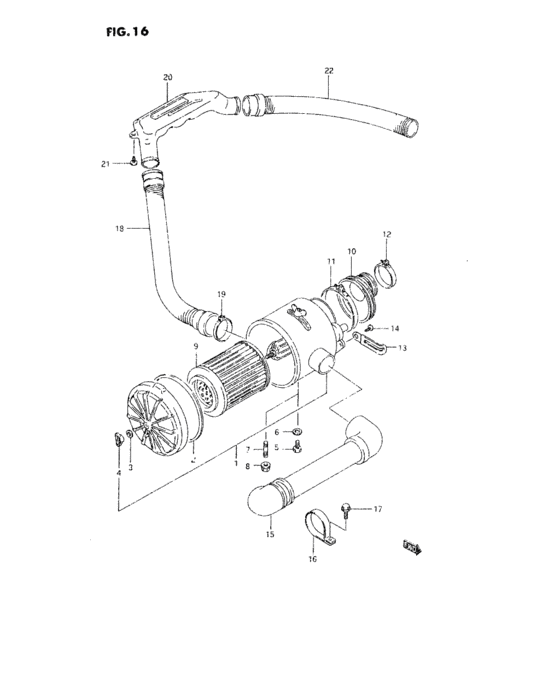

Air cleaner (V:N/SUB CLEANER,N/AIR VALVE) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- transmission
- 4MT
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13701-77301-000 CASE ASSY,AIR CLEANERN/WARM AIR |
13701-77301-000 |
US $124.38 |
||
|
1
|
1
13701-85700-000
Case assy, air cleaner
W/WARM AIR |
13701-85700-000 |
— | ||
|
2
|
2
13772-77300-000 GASKET,AIR CLEANER CAP |
13772-77300-000 |
US $4.56 |
||
|
3
|
3
08322-01063-000
Washer
|
08322-01063-000 |
— | ||
| replacement | |||||
|
3
|
3
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
4
|
4
08317-12063-000
Nut
|
08317-12063-000 |
— | ||
| replacement | |||||
|
4
|
4
08317-1206A-000 NUT |
08317-1206A-000 |
from US $1.06 |
||
|
5
|
5
01107-08123-000 ボルト |
01107-08123-000 |
US $1.23 |
||
| replacement | |||||
|
5
|
5
01500-0812A-000 Bolt |
01500-0812A-000 |
from US $0.77 |
||
|
6
|
6
08321-21083-000
Washr,lk8.2x15.
|
08321-21083-000 |
— | ||
| replacements | |||||
|
6
|
6
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
6
|
6
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
7
|
7
09108-08237-000
Stud bolt
EXC/Philippines DA21V-141501~,JSAEDA21V00139501~,JSAEDA21V0B139501~ |
09108-08237-000 |
— | ||
| replacement | |||||
|
7
|
7
09108-08244-000 BOLT,STUDEXC/Philippines DA21V-141501~,JSAEDA21V00139501~,JSAEDA21V0B139501~ |
09108-08244-000 |
US $1.92 |
||
|
8
|
8
09159-08069-000
Nut
EXC/Philippines DA21V-141501~,JSAEDA21V00139501~,JSAEDA21V0B139501~ |
09159-08069-000 |
— | ||
| replacement | |||||
|
8
|
8
09159-08135-000 NUTEXC/Philippines DA21V-141501~,JSAEDA21V00139501~,JSAEDA21V0B139501~ |
09159-08135-000 |
from US $0.77 |
||
|
9
|
9
13780-79201-000 ELEMENT,AIR CLEANER |
13780-79201-000 |
US $30.40 |
||
|
10
|
10
13881-79100-000 BOOT,AIR CLEANER TO CARBURATOR |
13881-79100-000 |
US $6.23 |
||
|
11
|
11
09402-00303-000 CLAMP |
09402-00303-000 |
from US $4.99 |
||
|
12
|
12
09402-58306-000 CLAMPBand |
09402-58306-000 |
from US $1.98 |
||
|
13
|
13
09404-06403-000 Clamp, n.s.i. lead to 09404-06413 |
09404-06403-000 |
US $0.98 |
||
| replacements | |||||
|
13
|
13
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
13
|
13
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
14
|
14
03141-05103-000
スクリュ
|
03141-05103-000 |
— | ||
| replacement | |||||
|
14
|
14
03142-0510B-000 SCREW |
03142-0510B-000 |
US $0.80 |
||
|
15
|
15
13870-85720-000
HOSE,COOL AIR
|
13870-85720-000 |
— | ||
|
16
|
16
09403-57401-000
CLAMP
|
09403-57401-000 |
— | ||
|
17
|
17
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
17
|
17
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
18
|
18
13840-85720-000
Hose, warm air
W/WARM AIR |
13840-85720-000 |
— | ||
| replacement | |||||
|
18
|
18
13840-79141-000
HOSE,WARM AIR
W/WARM AIR |
13840-79141-000 |
— | ||
|
19
|
19
09402-54303-000 CLAMPW/WARM AIR |
09402-54303-000 |
from US $6.26 |
||
|
20
|
20
13847-85500-000
CHAMBER,WARM AIR
W/WARM AIR |
13847-85500-000 |
— | ||
|
21
|
21
03141-06123-000
Screw 6x12
W/WARM AIR |
03141-06123-000 |
— | ||
| replacement | |||||
|
21
|
21
03141-0612A-000 SCREWW/WARM AIR |
03141-0612A-000 |
US $0.76 |
||
|
22
|
22
13840-85712-000
Hose, warm air
W/WARM AIR |
13840-85712-000 |
— | ||
| replacement | |||||
|
22
|
22
13840-85X51-000 HOSE,WARM AIRW/WARM AIR |
13840-85X51-000 |
US $47.20 |
||
