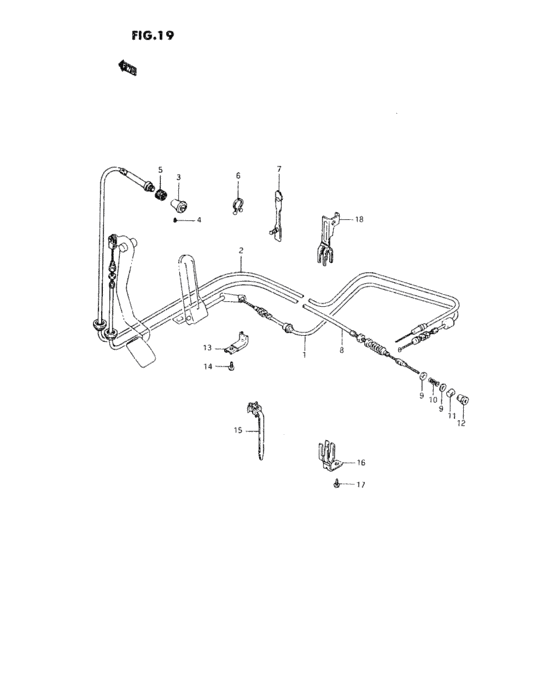

Control cable (CONTROL CABLE) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- transmission
- 4MT
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15910-85211-000
CABLE ASSY,ACCELERATOR
LHD |
15910-85211-000 |
— | ||
|
1
|
1
15910-85200-000
CABLE ASSY,ACCEL,R
RHD |
15910-85200-000 |
— | ||
|
1
|
1
15910-85611-000
CABLE ASSY,ACCELERATOR
Chile,Switzerland,Austria,Hungary Germany:W/CATALYZER:,JSAEDA21V00140713~ |
15910-85611-000 |
— | ||
|
1
|
1
15910-85220-000
CABLE ASSY,ACCEL,R
Hong Kong:W/CATALYZER |
15910-85220-000 |
— | ||
|
2
|
2
15930-85610-000
CABLE ASSY,CHOKE,L
LHD |
15930-85610-000 |
— | ||
|
2
|
2
15930-85600-000
CABLE ASSY,CHOKE,R
RHD |
15930-85600-000 |
— | ||
|
2
|
2
15930-85230-000
CABLE ASSY,CHOKE,L
Chile,Switzerland,Austria,Hungary Germany:W/CATALYZER:,JSAEDA21V00140713~ |
15930-85230-000 |
— | ||
|
2
|
2
15930-85220-000
CABLE ASSY,CHOKE,L
Germany,Holland:W/CATALYZER |
15930-85220-000 |
— | ||
|
2
|
2
15930-85250-000
Cable assy, choke
Hong Kong:W/CATALYZER |
15930-85250-000 |
— | ||
| replacement | |||||
|
2
|
2
15930-85230-000
CABLE ASSY,CHOKE,L
Hong Kong:W/CATALYZER |
15930-85230-000 |
— | ||
|
3
|
3
15933-85200-000 BUTTON,STARTER CABLE |
15933-85200-000 |
US $5.28 |
||
|
4
|
4
15936-85201-000 SCREW,CHOKE CABLE BUTTON |
15936-85201-000 |
US $1.60 |
||
|
5
|
5
15935-65011-000 NUT |
15935-65011-000 |
US $2.88 |
||
|
6
|
6
09408-00031-000
CLIP
|
09408-00031-000 |
— | ||
|
7
|
7
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
8
|
8
23710-85232-000
CABLE ASSY,CLUTCH
LHD,<-23710-85231 |
23710-85232-000 |
— | ||
|
8
|
8
23710-85201-000
CABLE ASSY,CLUTCH
RHD,<-23710-85200 |
23710-85201-000 |
— | ||
|
9
|
9
08322-01063-000
Washer
|
08322-01063-000 |
— | ||
| replacement | |||||
|
9
|
9
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
10
|
10
09440-08026-000 SPRING |
09440-08026-000 |
from US $1.22 |
||
|
11
|
11
09209-13018-000 PIN(13X18) |
09209-13018-000 |
from US $1.82 |
||
|
12
|
12
09150-06014-000
Nut
|
09150-06014-000 |
— | ||
| replacement | |||||
|
12
|
12
09150-06010-000 NUT |
09150-06010-000 |
from US $1.44 |
||
|
13
|
13
23916-85001-000
クランプ,クラッチケーブル
RHD |
23916-85001-000 |
— | ||
|
14
|
14
02142-06103-000
Screw
RHD |
02142-06103-000 |
— | ||
| replacements | |||||
|
14
|
14
02142-0610B-000 SCREWStopper, cl rlse cam shaft RHD |
02142-0610B-000 |
from US $0.76 |
||
|
14
|
14
02142-0610A-000 SCREWRHD |
02142-0610A-000 |
from US $0.80 |
||
|
15
|
15
09407-11402-000 CLAMP(L:90)LHD |
09407-11402-000 |
from US $1.75 |
||
| replacement | |||||
|
15
|
15
09407-17402-000 CLAMPLHD |
09407-17402-000 |
from US $1.98 |
||
|
16
|
16
23917-85000-000 CLAMP,CLUTCH CABLE,NO.2 |
23917-85000-000 |
US $2.13 |
||
|
17
|
17
03142-06129-000
スクリュ
|
03142-06129-000 |
— | ||
| replacement | |||||
|
17
|
17
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
18
|
18
23917-79502-000 CLAMP,CLUTCH CABLE,NO.3 |
23917-79502-000 |
from US $1.83 |
||
