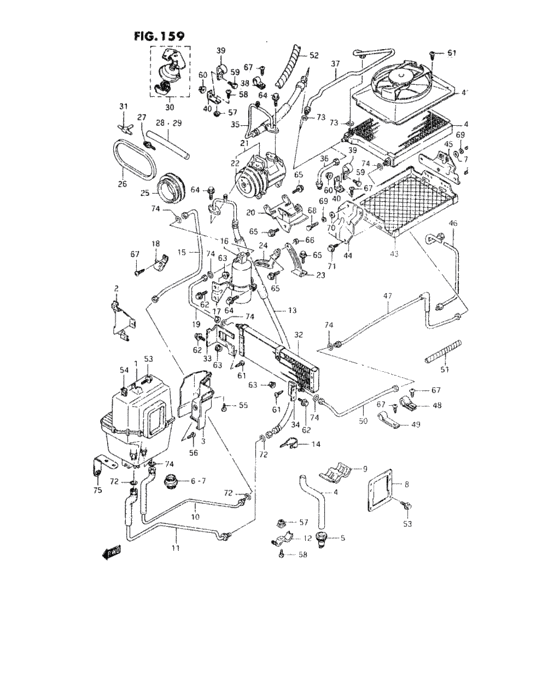

Air conditioner (LHD) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
95000-67C02-000
Air conditioner assy
W/HEATER |
95000-67C02-000 |
— | ||
|
|
95000-67C12-000
Air conditioner assy
N/HEATER |
95000-67C12-000 |
— | ||
|
|
95000-67C42-000
Air conditioner assy
W/HEATER:Saudi Arabia |
95000-67C42-000 |
— | ||
|
|
95000-67C52-000
Air conditioner assy
W/HEATER:General,Philippines,Morocco,United Arab Emirates,Yemen (South),Yemen (North) |
95000-67C52-000 |
— | ||
|
|
95000-67C62-000
Air conditioner assy
N/HEATER:Saudi Arabia |
95000-67C62-000 |
— | ||
|
|
95000-67C72-000
Air conditioner assy
N/HEATER:General,Philippines,Morocco,United Arab Emirates,Yemen (South),Yemen (North) |
95000-67C72-000 |
— | ||
|
|
95000-62C01-000
Air conditioner assy
W/HEATER |
95000-62C01-000 |
— | ||
|
|
95000-62C11-000
Air conditioner assy
N/HEATER |
95000-62C11-000 |
— | ||
|
1
|
1
95400-62C00-000
Unit, evaporator
INNER PARTS:FIG162(I-14) |
95400-62C00-000 |
— | ||
|
2
|
2
95632-62C10-000 BRACKET,EVAPO,LN/HEATER |
95632-62C10-000 |
US $14.09 |
||
|
2
|
2
95632-62C00-000
Brkt,evapo,lh
W/HEATER |
95632-62C00-000 |
— | ||
|
3
|
3
95461-62C00-000 PROTECTOR,EVAPORATOR |
95461-62C00-000 |
US $17.15 |
||
|
4
|
4
95491-60C00-000
ホース,ドレーン
H:170 |
95491-60C00-000 |
— | ||
|
4
|
4
95491-60C01-000
Hose,drain
H:340 |
95491-60C01-000 |
— | ||
|
5
|
5
95764-60C00-000
グロメット,ドレーンホース
|
95764-60C00-000 |
— | ||
|
6
|
6
95762-85200-000 GROMMET |
95762-85200-000 |
US $4.12 |
||
|
7
|
7
95763-85200-000
Grommet, inlet pipe
|
95763-85200-000 |
— | ||
|
8
|
8
74214-85000-000 PACKING,HEATER CONTROL BOXW/HEATER |
74214-85000-000 |
US $6.24 |
||
|
9
|
9
95769-85000-000 PACKING,EVAPORATOR PIPE |
95769-85000-000 |
US $7.47 |
||
|
10
|
10
95731-62C00-000
Pipe,evap inlet
|
95731-62C00-000 |
— | ||
|
11
|
11
95741-62C00-000
PIPE,EVAP OUTLET
|
95741-62C00-000 |
— | ||
|
12
|
12
95771-85000-000
CLAMP,EVAP PIPE
|
95771-85000-000 |
— | ||
|
13
|
13
95710-85211-000
Hose,cprsr suct
|
95710-85211-000 |
— | ||
|
14
|
14
95781-85000-000 PROTECTOR,WATER HOSE |
95781-85000-000 |
US $9.90 |
||
|
15
|
15
95732-62C10-000
PIPE,RECEIVER OUTLET
|
95732-62C10-000 |
— | ||
|
16
|
16
95330-78091-000 RECEIVER DRYER |
95330-78091-000 |
from US $62.40 |
||
|
17
|
17
95930-85501-000
BRACKET,RCVR DRYER
|
95930-85501-000 |
— | ||
|
18
|
18
95776-85001-000 CLAMP,RCVR OUTLET PIPE |
95776-85001-000 |
US $11.22 |
||
|
19
|
19
95733-85200-000
PIPE,FRONT COND OUTLET
|
95733-85200-000 |
— | ||
|
20
|
20
95111-85200-000
BRACKET,CPRSR
|
95111-85200-000 |
— | ||
|
21
|
21
95200-78181-000
COMPRESSOR&MAGNET CLUTCH
|
95200-78181-000 |
— | ||
|
22
|
22
95220-78140-000
MAGNET,CLUTCH
|
95220-78140-000 |
— | ||
|
23
|
23
95114-85201-000 STAY,ALTERNATOR ADJUST |
95114-85201-000 |
US $37.54 |
||
|
24
|
24
95113-85200-000 STAY,COMPRESSOR MOUNT |
95113-85200-000 |
US $19.69 |
||
|
25
|
25
12611-85200-000
PULLEY,CRANKSHAFT
|
12611-85200-000 |
— | ||
|
26
|
26
17521-77300-000 V-BELT,CPRSR FM-29.5HM-29.5M |
17521-77300-000 |
US $11.96 |
||
|
27
|
27
95562-78540-000 UNION,VACUUM HOSE |
95562-78540-000 |
US $9.83 |
||
|
28
|
28
09358-35754-300
ホース,3.5X7.5X300
L:300->150 |
09358-35754-300 |
— | ||
| replacements | |||||
|
28
|
28
09355-35754-601
HOSE(3.5X7.5X601)
L:300->150 |
09355-35754-601 |
— | ||
|
28
|
28
09355-35006-601 Hose(3.5X7.5X601)L:300->150 |
09355-35006-601 |
from US $5.78 |
||
|
29
|
29
09354-35753-300
ホース,3.5X7.5X300
L:300->250 |
09354-35753-300 |
— | ||
| replacements | |||||
|
29
|
29
09355-35755-600
HOSE(3.5X7.5X600)
L:300->250 |
09355-35755-600 |
— | ||
|
29
|
29
09355-35007-600 Hose(3.5X7.5X600)L:300->250 |
09355-35007-600 |
from US $5.76 |
||
|
30
|
30
95550-85200-000
IDLE UP ASSY,A/C
|
95550-85200-000 |
— | ||
|
31
|
31
09367-04002-000 CONNECTORGermany,Holland |
09367-04002-000 |
US $4.80 |
||
|
32
|
32
95321-85200-000 COND,FR |
95321-85200-000 |
US $298.08 |
||
|
33
|
33
95951-85220-000 BRACKET,FR COND,R |
95951-85220-000 |
US $12.36 |
||
|
34
|
34
95952-85200-000 BRACKET,FR COND,L |
95952-85200-000 |
US $4.93 |
||
|
35
|
35
95720-85401-000
Hose, compressor delivery
<-95720-85400 |
95720-85401-000 |
— | ||
|
35
|
35
95720-85501-000
HOSE,CPRSR DLVY
<-95720-85500 |
95720-85501-000 |
— | ||
|
35
|
35
95720-85411-000
HOSE,CPRSR DLVY
General,Philippines,Morocco,United Arab Emirates,Yemen (South),Yemen (North),<-95720-85410 |
95720-85411-000 |
— | ||
|
36
|
36
95737-62C00-000
Pipe, side condenser inlet
|
95737-62C00-000 |
— | ||
|
37
|
37
95737-65C00-000
PIPE,SIDE COND INLET
|
95737-65C00-000 |
— | ||
|
37
|
37
95737-67C40-000
Pipe, side condenser inlet
Saudi Arabia |
95737-67C40-000 |
— | ||
|
37
|
37
95737-67C50-000
Pipe, side condenser inlet
General,Philippines,Morocco,United Arab Emirates,Yemen (South),Yemen (North) |
95737-67C50-000 |
— | ||
|
38
|
38
95774-60C00-000 CLAMP,DELIVERY PIPE |
95774-60C00-000 |
US $11.70 |
||
|
39
|
39
95775-85000-000
Clamp
|
95775-85000-000 |
— | ||
|
40
|
40
95772-79140-000
STAY,CONDENSER PIPE CLAMP
|
95772-79140-000 |
— | ||
|
41
|
41
95520-51F00-000
Fan assy, condenser cooling
|
95520-51F00-000 |
— | ||
| replacement | |||||
|
41
|
41
95520-56F00-000 FAN ASSY |
95520-56F00-000 |
US $197.60 |
||
|
42
|
42
95310-60C01-000 CONDENSER,SIDE<-95310-60C00 |
95310-60C01-000 |
US $214.40 |
||
|
42
|
42
95310-65C01-000 CONDENSER,SIDE<-95310-65C00 |
95310-65C01-000 |
US $393.76 |
||
|
43
|
43
95334-60C01-000 GUARD,CONDENSER |
95334-60C01-000 |
US $30.40 |
||
|
44
|
44
95331-60C00-000
BRACKET,SIDE COND,FR
|
95331-60C00-000 |
— | ||
|
44
|
44
95331-63C02-000
BRACKET,SIDE COND,FR
|
95331-63C02-000 |
— | ||
|
45
|
45
95332-60C00-000
BRACKET,SIDE COND,RR
|
95332-60C00-000 |
— | ||
|
45
|
45
95332-65C02-000 BRACKET,SIDE COND,RR |
95332-65C02-000 |
US $18.77 |
||
|
46
|
46
95738-85460-000
PIPE,SIDE COND JOINT
|
95738-85460-000 |
— | ||
|
47
|
47
95734-62C00-000
Pipe, side condenser outlet
|
95734-62C00-000 |
— | ||
|
47
|
47
95734-67C00-000
Pipe,side cond outlet
|
95734-67C00-000 |
— | ||
|
47
|
47
95737-85700-000
Pipe, side condenser inlet
Saudi Arabia |
95737-85700-000 |
— | ||
|
48
|
48
95773-85000-000 CLAMP,PIPE |
95773-85000-000 |
US $3.83 |
||
|
49
|
49
95771-79140-000
CLAMP,CONDENSER PIPE
|
95771-79140-000 |
— | ||
|
50
|
50
95735-85200-000
PIPE,FRONT COND INLET
|
95735-85200-000 |
— | ||
|
51
|
51
95767-85000-000
Protector,clutch cable
|
95767-85000-000 |
— | ||
|
52
|
52
95767-78040-000
PROTECTOR,RADIATOR HOSE
|
95767-78040-000 |
— | ||
|
53
|
53
01550-06163-000
Bolt
W/HEATER |
01550-06163-000 |
— | ||
| replacements | |||||
|
53
|
53
01550-0616B-000 BOLTW/HEATER |
01550-0616B-000 |
from US $0.76 |
||
|
53
|
53
01550-0616A-000 BOLTW/HEATER |
01550-0616A-000 |
from US $0.76 |
||
|
54
|
54
95782-85000-000
ナット,エバポレータ
|
95782-85000-000 |
— | ||
|
55
|
55
03541-06163-000
スクリュ
|
03541-06163-000 |
— | ||
| replacement | |||||
|
55
|
55
03541-0616A-000 SCREW |
03541-0616A-000 |
from US $0.64 |
||
|
56
|
56
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
56
|
56
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
56
|
56
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
57
|
57
09148-06006-000 NUTNut, side |
09148-06006-000 |
US $0.96 |
||
|
58
|
58
03141-06166-000
New Genuine Part
|
03141-06166-000 |
— | ||
| replacement | |||||
|
58
|
58
03141-0616A-000 SCREW |
03141-0616A-000 |
from US $0.76 |
||
|
59
|
59
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
59
|
59
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
59
|
59
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
60
|
60
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
60
|
60
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
61
|
61
03141-05123-000
Screw 5 x 12
|
03141-05123-000 |
— | ||
| replacement | |||||
|
61
|
61
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
62
|
62
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
62
|
62
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
62
|
62
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
63
|
63
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
63
|
63
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
64
|
64
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
64
|
64
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
65
|
65
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
65
|
65
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
65
|
65
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
66
|
66
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
66
|
66
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
67
|
67
03141-06123-000
Screw 6x12
|
03141-06123-000 |
— | ||
| replacement | |||||
|
67
|
67
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
68
|
68
09138-06038-000
SCREW(6X16)
|
09138-06038-000 |
— | ||
|
69
|
69
08321-01063-000
Washer, lock
|
08321-01063-000 |
— | ||
| replacement | |||||
|
69
|
69
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
70
|
70
08322-01063-000
Washer
|
08322-01063-000 |
— | ||
| replacement | |||||
|
70
|
70
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
71
|
71
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
71
|
71
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
71
|
71
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
72
|
72
09280-14012-000
Oリング,D:1.78,ID:14.0
|
09280-14012-000 |
— | ||
| replacement | |||||
|
72
|
72
95897-60E00-000 O-RING |
95897-60E00-000 |
US $30.50 |
||
|
73
|
73
09280-11006-000
Oリング,D:1.78,ID:10.8
|
09280-11006-000 |
— | ||
| replacement | |||||
|
73
|
73
95894-60E00-000 O-RING |
95894-60E00-000 |
US $1.28 |
||
|
74
|
74
09280-07005-000
Oリング,D:1.42,ID:6.8
|
09280-07005-000 |
— | ||
| replacement | |||||
|
74
|
74
95891-60E00-000 O-RING |
95891-60E00-000 |
US $0.70 |
||
|
75
|
75
95633-62C00-000 STAY,EVAP PROTECTOR |
95633-62C00-000 |
US $5.04 |
||
