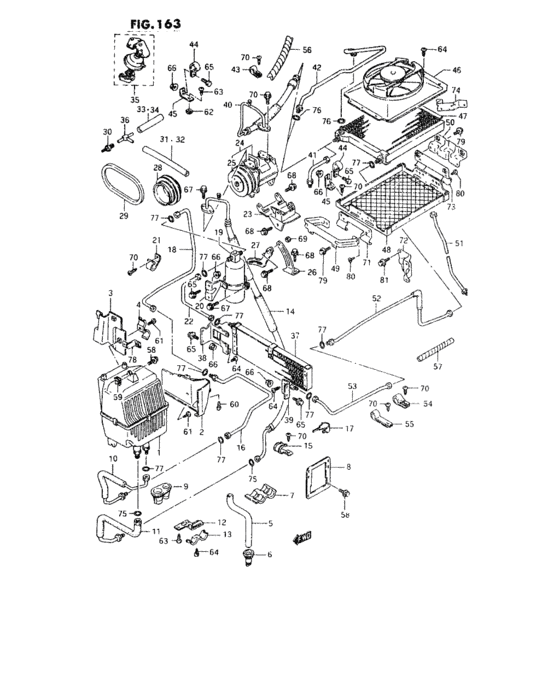

Air conditioner (RHD) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- transmission
- 5MT
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
95000-66C51-000
Air conditioner assy
N/HEATER: |
95000-66C51-000 |
— | ||
|
|
95000-67C22-000
Air conditioner assy
W/HEATER |
95000-67C22-000 |
— | ||
|
|
95000-67C32-000
Air conditioner assy
N/HEATER |
95000-67C32-000 |
— | ||
|
|
95000-67C82-000
Air conditioner assy
W/HEATER General,Bangladesh,Pakistan |
95000-67C82-000 |
— | ||
|
|
95000-67C92-000
Air conditioner assy
N/HEATER General,Bangladesh,Pakistan |
95000-67C92-000 |
— | ||
|
|
95000-62C21-000
Air conditioner assy
W/HEATER |
95000-62C21-000 |
— | ||
|
|
95000-62C30-000
Air conditioner assy
N/HEATER |
95000-62C30-000 |
— | ||
|
|
95000-62C51-000
Air conditioner assy
N/HEATER: |
95000-62C51-000 |
— | ||
|
1
|
1
95400-62C10-000 UNIT,EVAPORATORINNER PARTS:FIG166(J-8) |
95400-62C10-000 |
US $630.08 |
||
|
2
|
2
95461-85001-000
プロテクタ,エバポレータ
|
95461-85001-000 |
— | ||
|
3
|
3
95632-60C00-000
ブラケット,エバポレータ,ライト
|
95632-60C00-000 |
— | ||
|
4
|
4
95777-85000-000
CLAMP,INNER PIPE
|
95777-85000-000 |
— | ||
|
5
|
5
95491-60C00-000
ホース,ドレーン
H:170 |
95491-60C00-000 |
— | ||
|
5
|
5
95491-60C01-000
Hose,drain
H:340 |
95491-60C01-000 |
— | ||
|
6
|
6
95764-85000-000 GROMMET,DRAIN HOSEH:37 |
95764-85000-000 |
US $4.12 |
||
|
6
|
6
95764-60C00-000
グロメット,ドレーンホース
H:17 |
95764-60C00-000 |
— | ||
|
7
|
7
95769-85000-000 PACKING,EVAPORATOR PIPE |
95769-85000-000 |
US $7.47 |
||
|
8
|
8
74214-85000-000 PACKING,HEATER CONTROL BOXW/HEATER |
74214-85000-000 |
US $6.24 |
||
|
9
|
9
95762-85000-000
グロメット,エバポレータパイプ
|
95762-85000-000 |
— | ||
|
10
|
10
95731-60C00-000
PIPE,EVAPORATOR INLET
|
95731-60C00-000 |
— | ||
|
11
|
11
95741-60C00-000 PIPE,EVAPORATOR OUTLET |
95741-60C00-000 |
US $74.70 |
||
|
12
|
12
95772-85000-000
STAY,PIPE CLAMP
|
95772-85000-000 |
— | ||
|
13
|
13
95771-85000-000
CLAMP,EVAP PIPE
|
95771-85000-000 |
— | ||
|
14
|
14
95710-85501-000
HOSE,CPRSR SUCT
<-95710-85500 |
95710-85501-000 |
— | ||
|
15
|
15
95778-85000-000
クランプ,サクションホース
|
95778-85000-000 |
— | ||
|
16
|
16
95736-85200-000 PIPE,RECEIVER DRYER OUT NO.2 |
95736-85200-000 |
US $37.17 |
||
|
17
|
17
95781-85000-000 PROTECTOR,WATER HOSE |
95781-85000-000 |
US $9.90 |
||
|
18
|
18
95732-60C20-000
PIPE,RECEIVER DRYER OUTLET
|
95732-60C20-000 |
— | ||
|
19
|
19
95330-78091-000 RECEIVER DRYER |
95330-78091-000 |
from US $62.40 |
||
|
20
|
20
95930-85501-000
BRACKET,RCVR DRYER
|
95930-85501-000 |
— | ||
|
21
|
21
95776-85001-000 CLAMP,RCVR OUTLET PIPE |
95776-85001-000 |
US $11.22 |
||
|
22
|
22
95733-85200-000
PIPE,FRONT COND OUTLET
|
95733-85200-000 |
— | ||
|
23
|
23
95111-85200-000
BRACKET,CPRSR
|
95111-85200-000 |
— | ||
|
24
|
24
95200-78181-000
COMPRESSOR&MAGNET CLUTCH
|
95200-78181-000 |
— | ||
|
25
|
25
95220-78140-000
MAGNET,CLUTCH
|
95220-78140-000 |
— | ||
|
26
|
26
95114-85201-000 STAY,ALTERNATOR ADJUST |
95114-85201-000 |
US $37.54 |
||
|
27
|
27
95113-85200-000 STAY,COMPRESSOR MOUNT |
95113-85200-000 |
US $19.69 |
||
|
28
|
28
12611-85200-000
PULLEY,CRANKSHAFT
|
12611-85200-000 |
— | ||
|
29
|
29
17521-77300-000 V-BELT,CPRSR FM-29.5HM-29.5M |
17521-77300-000 |
US $11.96 |
||
|
30
|
30
95562-78540-000 UNION,VACUUM HOSE |
95562-78540-000 |
US $9.83 |
||
|
31
|
31
09358-35754-300
ホース,3.5X7.5X300
L:300->150 |
09358-35754-300 |
— | ||
| replacements | |||||
|
31
|
31
09355-35754-601
HOSE(3.5X7.5X601)
L:300->150 |
09355-35754-601 |
— | ||
|
31
|
31
09355-35006-601 Hose(3.5X7.5X601)L:300->150 |
09355-35006-601 |
from US $5.78 |
||
|
32
|
32
09354-35753-300
ホース,3.5X7.5X300
L:300->250 |
09354-35753-300 |
— | ||
| replacements | |||||
|
32
|
32
09355-35755-600
HOSE(3.5X7.5X600)
L:300->250 |
09355-35755-600 |
— | ||
|
32
|
32
09355-35007-600 Hose(3.5X7.5X600)L:300->250 |
09355-35007-600 |
from US $5.76 |
||
|
33
|
33
09358-35754-300
ホース,3.5X7.5X300
,,,Sinagpore,Hong Kong,8 L:300->30 |
09358-35754-300 |
— | ||
| replacements | |||||
|
33
|
33
09355-35754-601
HOSE(3.5X7.5X601)
,,,Sinagpore,Hong Kong,8 L:300->30 |
09355-35754-601 |
— | ||
|
33
|
33
09355-35006-601 Hose(3.5X7.5X601),,,Sinagpore,Hong Kong,8 L:300->30 |
09355-35006-601 |
from US $5.78 |
||
|
34
|
34
09358-35754-300
ホース,3.5X7.5X300
,,,Sinagpore,Hong Kong,8 L:300<-80 |
09358-35754-300 |
— | ||
| replacements | |||||
|
34
|
34
09355-35754-601
HOSE(3.5X7.5X601)
,,,Sinagpore,Hong Kong,8 L:300<-80 |
09355-35754-601 |
— | ||
|
34
|
34
09355-35006-601 Hose(3.5X7.5X601),,,Sinagpore,Hong Kong,8 L:300<-80 |
09355-35006-601 |
from US $5.78 |
||
|
35
|
35
95550-85200-000
IDLE UP ASSY,A/C
|
95550-85200-000 |
— | ||
|
36
|
36
09367-04002-000 CONNECTOR,,,Sinagpore,Hong Kong,8 |
09367-04002-000 |
US $4.80 |
||
|
37
|
37
95321-85200-000 COND,FR |
95321-85200-000 |
US $298.08 |
||
|
38
|
38
95951-85220-000 BRACKET,FR COND,R |
95951-85220-000 |
US $12.36 |
||
|
39
|
39
95952-85200-000 BRACKET,FR COND,L |
95952-85200-000 |
US $4.93 |
||
|
40
|
40
95720-85401-000
Hose, compressor delivery
<-94720-85400 |
95720-85401-000 |
— | ||
|
40
|
40
95720-85501-000
HOSE,CPRSR DLVY
|
95720-85501-000 |
— | ||
|
40
|
40
95720-85411-000
HOSE,CPRSR DLVY
General,Bangladesh,Pakistan |
95720-85411-000 |
— | ||
|
41
|
41
95737-62C00-000
Pipe, side condenser inlet
|
95737-62C00-000 |
— | ||
|
42
|
42
95737-65C00-000
PIPE,SIDE COND INLET
|
95737-65C00-000 |
— | ||
|
42
|
42
95737-67C50-000
Pipe, side condenser inlet
General,Bangladesh,Pakistan |
95737-67C50-000 |
— | ||
|
43
|
43
95774-60C00-000 CLAMP,DELIVERY PIPE |
95774-60C00-000 |
US $11.70 |
||
|
44
|
44
95775-85000-000
Clamp
|
95775-85000-000 |
— | ||
|
45
|
45
95772-79140-000
STAY,CONDENSER PIPE CLAMP
|
95772-79140-000 |
— | ||
|
46
|
46
95520-51F00-000
Fan assy, condenser cooling
|
95520-51F00-000 |
— | ||
| replacement | |||||
|
46
|
46
95520-56F00-000 FAN ASSY |
95520-56F00-000 |
US $197.60 |
||
|
47
|
47
95310-60C01-000 CONDENSER,SIDE<-95310-60C00 |
95310-60C01-000 |
US $214.40 |
||
|
47
|
47
95310-65C01-000 CONDENSER,SIDE<-95310-65C00 |
95310-65C01-000 |
US $393.76 |
||
|
48
|
48
95334-60C01-000 GUARD,CONDENSER |
95334-60C01-000 |
US $30.40 |
||
|
49
|
49
95331-60C00-000
BRACKET,SIDE COND,FR
|
95331-60C00-000 |
— | ||
|
50
|
50
95332-60C00-000
BRACKET,SIDE COND,RR
|
95332-60C00-000 |
— | ||
|
51
|
51
95738-85460-000
PIPE,SIDE COND JOINT
|
95738-85460-000 |
— | ||
|
52
|
52
95734-60C30-000
PIPE,SIDE COND OUTLET
|
95734-60C30-000 |
— | ||
|
52
|
52
95734-67C00-000
Pipe,side cond outlet
|
95734-67C00-000 |
— | ||
|
53
|
53
95735-85200-000
PIPE,FRONT COND INLET
|
95735-85200-000 |
— | ||
|
54
|
54
95773-85000-000 CLAMP,PIPE |
95773-85000-000 |
US $3.83 |
||
|
55
|
55
95771-79140-000
CLAMP,CONDENSER PIPE
|
95771-79140-000 |
— | ||
|
56
|
56
95767-78040-000
PROTECTOR,RADIATOR HOSE
|
95767-78040-000 |
— | ||
|
57
|
57
95767-85000-000
Protector,clutch cable
|
95767-85000-000 |
— | ||
|
58
|
58
01550-06163-000
Bolt
W/HEATER |
01550-06163-000 |
— | ||
| replacements | |||||
|
58
|
58
01550-0616B-000 BOLTW/HEATER |
01550-0616B-000 |
from US $0.76 |
||
|
58
|
58
01550-0616A-000 BOLTW/HEATER |
01550-0616A-000 |
from US $0.76 |
||
|
59
|
59
95782-85000-000
ナット,エバポレータ
|
95782-85000-000 |
— | ||
|
60
|
60
03541-06163-000
スクリュ
|
03541-06163-000 |
— | ||
| replacement | |||||
|
60
|
60
03541-0616A-000 SCREW |
03541-0616A-000 |
from US $0.64 |
||
|
61
|
61
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
61
|
61
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
61
|
61
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
62
|
62
09148-06006-000 NUTNut, side |
09148-06006-000 |
US $0.96 |
||
|
63
|
63
03141-06166-000
New Genuine Part
|
03141-06166-000 |
— | ||
| replacement | |||||
|
63
|
63
03141-0616A-000 SCREW |
03141-0616A-000 |
from US $0.76 |
||
|
64
|
64
03141-05123-000
Screw 5 x 12
|
03141-05123-000 |
— | ||
| replacement | |||||
|
64
|
64
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
65
|
65
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
65
|
65
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
65
|
65
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
66
|
66
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
66
|
66
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
67
|
67
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
67
|
67
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
68
|
68
01550-08207-000 BOLT |
01550-08207-000 |
from US $0.96 |
||
|
69
|
69
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
69
|
69
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
70
|
70
03141-06123-000
Screw 6x12
|
03141-06123-000 |
— | ||
| replacement | |||||
|
70
|
70
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
71
|
71
95335-60C10-000 STAY,SIDE CONDENSER |
95335-60C10-000 |
US $14.39 |
||
|
72
|
72
95331-63C02-000
BRACKET,SIDE COND,FR
|
95331-63C02-000 |
— | ||
|
73
|
73
95335-60C10-000 STAY,SIDE CONDENSER |
95335-60C10-000 |
US $14.39 |
||
|
74
|
74
95332-65C02-000 BRACKET,SIDE COND,RR |
95332-65C02-000 |
US $18.77 |
||
|
75
|
75
09280-14012-000
Oリング,D:1.78,ID:14.0
|
09280-14012-000 |
— | ||
| replacement | |||||
|
75
|
75
95897-60E00-000 O-RING |
95897-60E00-000 |
US $30.50 |
||
|
76
|
76
09280-11006-000
Oリング,D:1.78,ID:10.8
|
09280-11006-000 |
— | ||
| replacement | |||||
|
76
|
76
95894-60E00-000 O-RING |
95894-60E00-000 |
US $1.28 |
||
|
77
|
77
09280-07005-000
Oリング,D:1.42,ID:6.8
|
09280-07005-000 |
— | ||
| replacement | |||||
|
77
|
77
95891-60E00-000 O-RING |
95891-60E00-000 |
US $0.70 |
||
|
78
|
78
95633-60C00-000 STAY,EVAP PROTECTOR |
95633-60C00-000 |
US $4.75 |
||
|
79
|
79
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
79
|
79
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
79
|
79
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
80
|
80
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
80
|
80
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
80
|
80
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
81
|
81
09138-06027-000
Screw (6*16)
|
09138-06027-000 |
— | ||
| replacement | |||||
|
81
|
81
01580-0616A-000 BOLT |
01580-0616A-000 |
from US $0.96 |
||
