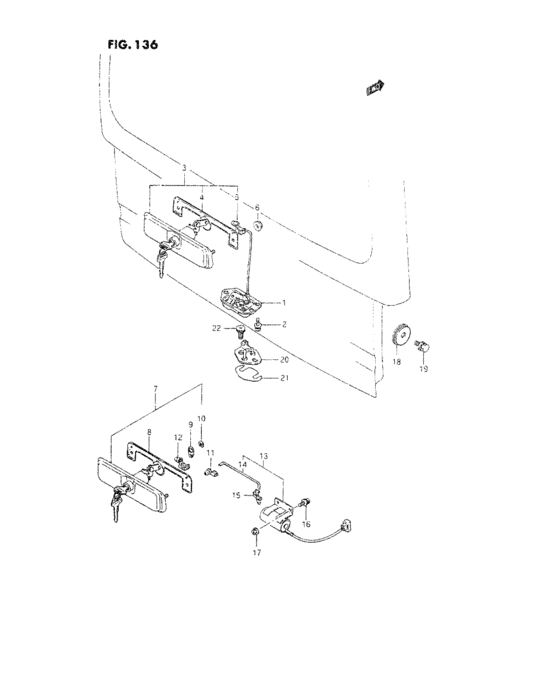

Back door lock (V) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- transmission
- 5MT
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82510-85500-000 LATCH ASSY,BACK DRLOW FLOOR |
82510-85500-000 |
US $54.40 |
||
|
1
|
1
82510-85700-000 LATCH ASSY,BACK DRFLAT FLOOR |
82510-85700-000 |
US $40.48 |
||
|
2
|
2
02112-76123-000
Screw
|
02112-76123-000 |
— | ||
| replacement | |||||
|
2
|
2
02112-7612B-000 SCREW |
02112-7612B-000 |
from US $0.96 |
||
|
3
|
3
82500-85811-0CB CYLINDER ASSY,DR LOCKBLACK |
82500-85811-0CB |
US $63.20 |
||
|
4
|
4
82586-85500-000 PACKING,BACK DOOR CYL LOCK |
82586-85500-000 |
US $6.88 |
||
|
5
|
5
09209-05016-000 PIN |
09209-05016-000 |
US $1.67 |
||
|
6
|
6
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
7
|
7
82500-85822-0CB
CYLINDER ASSY,DR LOCK
BLACK,Philippines |
82500-85822-0CB |
— | ||
|
8
|
8
82586-85500-000 PACKING,BACK DOOR CYL LOCKPhilippines |
82586-85500-000 |
US $6.88 |
||
|
9
|
9
82588-85510-000
レバー,バックドアオープナ
Philippines |
82588-85510-000 |
— | ||
|
10
|
10
82589-85510-000
Eリング,バックドアオープナ
Philippines |
82589-85510-000 |
— | ||
|
11
|
11
82593-82000-000
PIN,BACK DOOR OPENER ROD CYL
Philippines |
82593-82000-000 |
— | ||
|
12
|
12
09209-05016-000 PINPhilippines |
09209-05016-000 |
US $1.67 |
||
|
13
|
13
82550-85512-000
SOLENOID,BACK DOOR LATCH
Philippines |
82550-85512-000 |
— | ||
|
14
|
14
82558-85510-000
ロッド,バックドアオープナ
Philippines |
82558-85510-000 |
— | ||
|
15
|
15
82559-82000-000
Pin,back door opener rod
Philippines |
82559-82000-000 |
— | ||
|
16
|
16
02112-76123-000
Screw
|
02112-76123-000 |
— | ||
| replacement | |||||
|
16
|
16
02112-7612B-000 SCREW |
02112-7612B-000 |
from US $0.96 |
||
|
17
|
17
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
17
|
17
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
18
|
18
82761-85500-000 MALE,BACK DR SIDE STOP DR |
82761-85500-000 |
US $8.32 |
||
|
19
|
19
09118-08001-000
Bolt
|
09118-08001-000 |
— | ||
| replacement | |||||
|
19
|
19
09118-08128-000 BOLT(8X16)Bolt, front fender, front |
09118-08128-000 |
US $1.28 |
||
|
20
|
20
82650-85500-000 STRIKER,BACK DOOR LATCH |
82650-85500-000 |
US $20.80 |
||
|
21
|
21
78199-78000-000 SPACER,DOOR LOCK STRIKER |
78199-78000-000 |
US $1.60 |
||
|
22
|
22
09137-08006-000
Screw
|
09137-08006-000 |
— | ||
| replacements | |||||
|
22
|
22
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
US $1.44 |
||
|
22
|
22
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
from US $0.90 |
||
