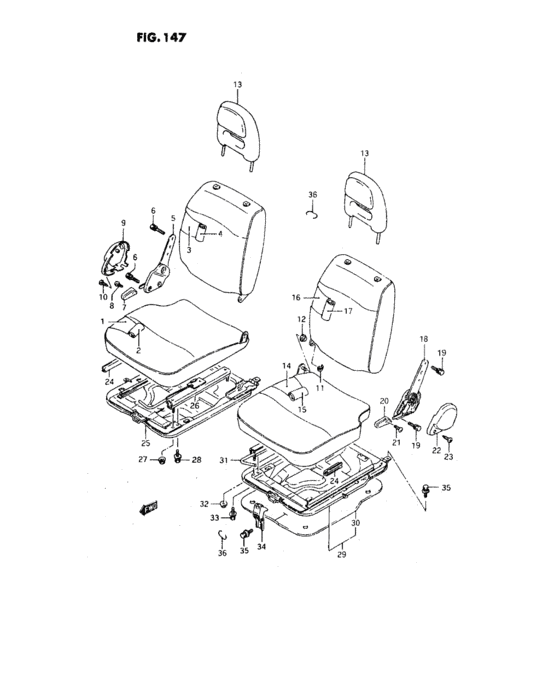

Front seat (V:TX:R/L SLIDE) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- transmission
- 5MT
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85105-85702-000
Cushion sub assy, rh
|
85105-85702-000 |
— | ||
|
2
|
2
85180-85700-3HG
Cover, cushion rh
|
85180-85700-3HG |
— | ||
|
3
|
3
85305-85701-000
Back sub assy, rh
|
85305-85701-000 |
— | ||
|
4
|
4
85380-85700-3HG
Cover, back rh
|
85380-85700-3HG |
— | ||
|
5
|
5
85210-85501-000 RECLINING ASSY,FR SEAT,R |
85210-85501-000 |
US $131.38 |
||
|
6
|
6
01137-08166-000
ボルト
|
01137-08166-000 |
— | ||
| replacement | |||||
|
6
|
6
01570-0816A-000 BOLT |
01570-0816A-000 |
from US $0.96 |
||
|
7
|
7
85211-84000-5PK KNOB,RECLININGBLACK |
85211-84000-5PK |
US $2.56 |
||
|
7
|
7
85211-84000-5RT KNOB,RECLININGGRAY |
85211-84000-5RT |
US $3.57 |
||
|
8
|
8
03211-04085-000
スクリュ
|
03211-04085-000 |
— | ||
| replacement | |||||
|
8
|
8
03211-0408A-000 SCREW |
03211-0408A-000 |
US $9.90 |
||
|
9
|
9
85221-84000-5PK COVER,RECLINING ASSY,RBLACK |
85221-84000-5PK |
US $23.20 |
||
|
9
|
9
85221-84000-5RT COVER,RECLINING ASSY,RGRAY |
85221-84000-5RT |
US $7.29 |
||
|
10
|
10
03242-05124-000
Screw
|
03242-05124-000 |
— | ||
| replacement | |||||
|
10
|
10
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
11
|
11
08332-11063-000
E ring
|
08332-11063-000 |
— | ||
| replacements | |||||
|
11
|
11
08332-1106B-000 E RINGCirclip |
08332-1106B-000 |
from US $0.90 |
||
|
11
|
11
08332-1106A-000 E RINGE ring, pinion |
08332-1106A-000 |
from US $0.77 |
||
|
12
|
12
09306-08003-000
Bush
|
09306-08003-000 |
— | ||
| replacement | |||||
|
12
|
12
09306-08016-000 BUSH |
09306-08016-000 |
from US $4.28 |
||
|
13
|
13
86401-65C10-5ZF
Headrestraint assy,front
|
86401-65C10-5ZF |
— | ||
|
14
|
14
85106-85701-000
CUSHION SUB,FR SEAT,L
|
85106-85701-000 |
— | ||
|
15
|
15
85680-85700-3HG
Cover, cushion lh
|
85680-85700-3HG |
— | ||
|
16
|
16
85306-85701-000
BACK S/ASSY,FR SEAT,L
|
85306-85701-000 |
— | ||
|
17
|
17
85880-85700-3HG
Cover, back lh
|
85880-85700-3HG |
— | ||
|
18
|
18
85710-85501-000 RECLINING ASSY,FR SEAT,L |
85710-85501-000 |
US $143.20 |
||
|
19
|
19
01137-08166-000
ボルト
|
01137-08166-000 |
— | ||
| replacement | |||||
|
19
|
19
01570-0816A-000 BOLT |
01570-0816A-000 |
from US $0.96 |
||
|
20
|
20
85211-84000-5PK KNOB,RECLININGBLACK |
85211-84000-5PK |
US $2.56 |
||
|
20
|
20
85211-84000-5RT KNOB,RECLININGGRAY |
85211-84000-5RT |
US $3.57 |
||
|
21
|
21
03211-04085-000
スクリュ
|
03211-04085-000 |
— | ||
| replacement | |||||
|
21
|
21
03211-0408A-000 SCREW |
03211-0408A-000 |
US $9.90 |
||
|
22
|
22
85721-84000-5PK COVER,RECLINING ASSY,LBLACK |
85721-84000-5PK |
US $23.20 |
||
|
22
|
22
85721-84000-5RT COVER,RECLINING ASSY,LGRAY |
85721-84000-5RT |
US $7.29 |
||
|
23
|
23
03242-05124-000
Screw
|
03242-05124-000 |
— | ||
| replacement | |||||
|
23
|
23
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
24
|
24
85292-85000-000 SPACER,FRONT SEAT SLIDE |
85292-85000-000 |
US $2.56 |
||
|
25
|
25
85410-85551-000
PANEL,FR SEAT RISER,R
|
85410-85551-000 |
— | ||
|
25
|
25
85410-85721-000
Panel, seat riser rh
Switzerland,Germany,Austria,Iceland |
85410-85721-000 |
— | ||
|
26
|
26
86610-85012-000
RAIL ASSY,FR SEAT,R
|
86610-85012-000 |
— | ||
|
27
|
27
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
27
|
27
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
28
|
28
01177-06126-000
Bolt, front
|
01177-06126-000 |
— | ||
| replacements | |||||
|
28
|
28
01580-0612B-000 Bolt |
01580-0612B-000 |
US $0.96 |
||
|
28
|
28
01580-0612A-000 Bolt |
01580-0612A-000 |
from US $0.91 |
||
|
29
|
29
85910-85551-000
PANEL,FR SEAT RISER,L
|
85910-85551-000 |
— | ||
|
29
|
29
85910-85721-000 PANEL,FR SEAT RISER,LSwitzerland,Germany,Austria,Iceland |
85910-85721-000 |
US $189.52 |
||
|
30
|
30
85927-85001-000 INSULATOR,FR SEAT RISER,L |
85927-85001-000 |
US $36.80 |
||
|
31
|
31
86810-85012-000 RAIL ASSY,FR SEAT,L |
86810-85012-000 |
US $66.61 |
||
|
32
|
32
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
32
|
32
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
33
|
33
01177-06126-000
Bolt, front
|
01177-06126-000 |
— | ||
| replacements | |||||
|
33
|
33
01580-0612B-000 Bolt |
01580-0612B-000 |
US $0.96 |
||
|
33
|
33
01580-0612A-000 Bolt |
01580-0612A-000 |
from US $0.91 |
||
|
34
|
34
86650-85000-000 LOCK,FR SEAT CUSHION |
86650-85000-000 |
US $8.46 |
||
|
34
|
34
86650-85702-000 LOCK,FR SEATSwitzerland,Germany,Austria,Iceland |
86650-85702-000 |
US $14.90 |
||
|
35
|
35
01580-06163-000
Bolt
|
01580-06163-000 |
— | ||
| replacement | |||||
|
35
|
35
01580-0616A-000 BOLT |
01580-0616A-000 |
from US $0.96 |
||
|
36
|
36
09387-19001-000 RING |
09387-19001-000 |
US $1.76 |
||
