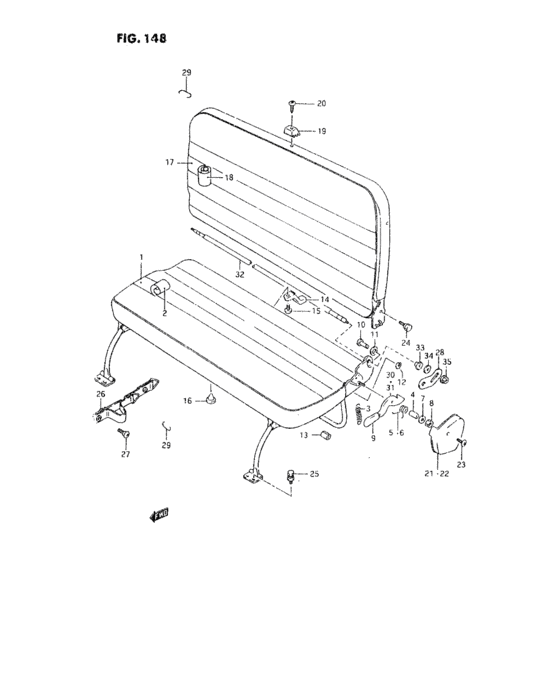

Rear seat (LOW FLOOR:BENCH TYPE) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- transmission
- 5MT
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87105-85730-000
Cushion sub assy, seat
|
87105-85730-000 |
— | ||
|
2
|
2
87180-85740-3YG
Cover, cushion
TA |
87180-85740-3YG |
— | ||
|
2
|
2
87180-85740-D37
Cover, seat cushion
TA:United Arab Emirates |
87180-85740-D37 |
— | ||
|
2
|
2
87180-85720-3HG
Cover, cushion
TX |
87180-85720-3HG |
— | ||
|
3
|
3
09443-14015-000 SPRING |
09443-14015-000 |
from US $4.57 |
||
|
4
|
4
87217-85530-000 COLLAR,RR SEAT STOPPER BAND |
87217-85530-000 |
US $2.02 |
||
|
5
|
5
87214-85720-000 SPRING,RR SEAT HINGE,R |
87214-85720-000 |
US $4.93 |
||
|
6
|
6
87215-85720-000 SPRING,RR SEAT HINGE,L |
87215-85720-000 |
US $4.93 |
||
|
7
|
7
08322-21083-000 ワッシャ |
08322-21083-000 |
US $0.54 |
||
| replacements | |||||
|
7
|
7
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
7
|
7
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
8
|
8
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
|
9
|
9
87216-85530-5PK
グリップ,リヤシートヒンジレバー(ブラック)
BLACK |
87216-85530-5PK |
— | ||
| replacements | |||||
|
9
|
9
87216-85530-5ES
KNOB,RR BACK LOCK
BLACK |
87216-85530-5ES |
— | ||
|
9
|
9
87216-85530-5RT GRIP,RR SEAT HNG LEVERBLACK |
87216-85530-5RT |
US $4.31 |
||
|
9
|
9
87216-85530-5RT GRIP,RR SEAT HNG LEVERGRAY |
87216-85530-5RT |
US $4.31 |
||
|
10
|
10
87259-85510-000 PIN |
87259-85510-000 |
from US $1.68 |
||
|
11
|
11
09164-07001-000 WASHER |
09164-07001-000 |
US $1.60 |
||
|
12
|
12
08332-11043-000
E ring
|
08332-11043-000 |
— | ||
| replacements | |||||
|
12
|
12
08332-1104B-000 E RING |
08332-1104B-000 |
from US $0.80 |
||
|
12
|
12
08332-1104A-000 E RING |
08332-1104A-000 |
from US $0.76 |
||
|
13
|
13
84354-79500-000 CUSHION,RR SEAT LEG |
84354-79500-000 |
US $2.56 |
||
|
14
|
14
87291-85720-000
CUSHION,REAR SEAT REAR
|
87291-85720-000 |
— | ||
|
15
|
15
03242-05165-000
Screw
|
03242-05165-000 |
— | ||
| replacement | |||||
|
15
|
15
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
16
|
16
09321-06016-000 CUSHION |
09321-06016-000 |
from US $1.76 |
||
|
17
|
17
87305-85720-000
Back sub assy, seat
|
87305-85720-000 |
— | ||
|
18
|
18
87380-85740-3YG
Cover, back
TA |
87380-85740-3YG |
— | ||
| replacement | |||||
|
18
|
18
87380-85450-B5S
TRIM,RR SEAT BACK
TA |
87380-85450-B5S |
— | ||
|
18
|
18
87380-85720-3HG
Cover, back
TA:United Arab Emirates |
87380-85720-3HG |
— | ||
|
19
|
19
87396-85530-000 CUSHION,REAR SEAT BACK STOPPER |
87396-85530-000 |
US $1.98 |
||
|
20
|
20
03241-05105-000
Screw
|
03241-05105-000 |
— | ||
| replacements | |||||
|
20
|
20
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
20
|
20
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
21
|
21
87221-85530-5PK
カバー,リヤシートヒンジ,ライト(ブラック)
BLACK |
87221-85530-5PK |
— | ||
|
21
|
21
87221-85530-5RT COVER,RR SEAT HINGE,RGRAY |
87221-85530-5RT |
US $10.08 |
||
|
22
|
22
87222-85530-5PK
COVER,RR SEAT HINGE,L
BLACK |
87222-85530-5PK |
— | ||
|
22
|
22
87222-85530-5RT COVER,RR SEAT HINGE,LGRAY |
87222-85530-5RT |
US $10.08 |
||
|
23
|
23
03242-05205-000
Screw, front
|
03242-05205-000 |
— | ||
| replacement | |||||
|
23
|
23
03241-0520A-000 SCREW |
03241-0520A-000 |
from US $0.80 |
||
|
24
|
24
87271-85500-000
ボルト,リヤシートバックピボット
|
87271-85500-000 |
— | ||
| replacement | |||||
|
24
|
24
09111-08044-000 BOLT(8X16) |
09111-08044-000 |
US $14.40 |
||
|
25
|
25
01580-06163-000
Bolt
|
01580-06163-000 |
— | ||
| replacement | |||||
|
25
|
25
01580-0616A-000 BOLT |
01580-0616A-000 |
from US $0.96 |
||
|
26
|
26
87880-85720-000 BAND,RR SEAT STOPPER |
87880-85720-000 |
US $15.46 |
||
|
27
|
27
09139-06040-000 SCREW(6X20) |
09139-06040-000 |
US $9.60 |
||
|
28
|
28
87211-85270-000
Stopper, seat back
United Arab Emirates |
87211-85270-000 |
— | ||
|
29
|
29
09387-19001-000 RING |
09387-19001-000 |
US $1.76 |
||
|
30
|
30
87211-85720-000
LEVER,RR SEAT HNG LOCK,R
|
87211-85720-000 |
— | ||
|
31
|
31
87218-85720-000 LEVER,RR SEAT HNG LOCK,L |
87218-85720-000 |
US $7.99 |
||
|
32
|
32
87230-85720-000
Rod
|
87230-85720-000 |
— | ||
|
33
|
33
87233-85720-000
BUSH,CONNECT ROD
|
87233-85720-000 |
— | ||
|
34
|
34
87234-85720-000
Washer
|
87234-85720-000 |
— | ||
|
35
|
35
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
35
|
35
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
