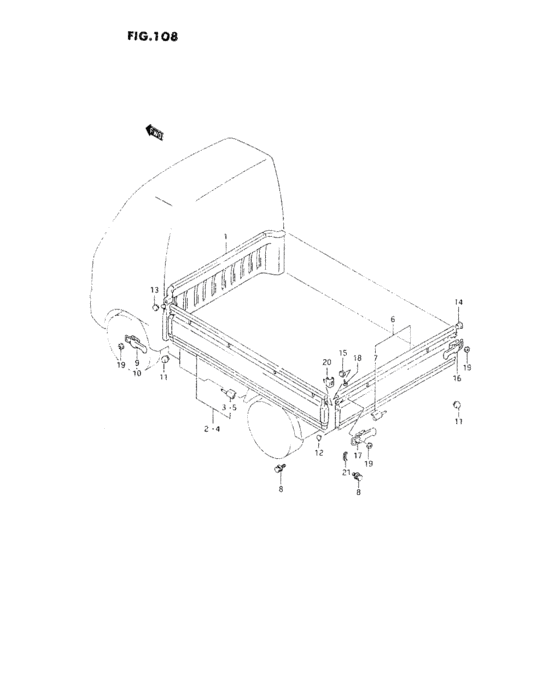

Deck gate (K) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- transmission
- 5MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66600-60C01-000 PANEL ASSY,DECK FRONT |
66600-60C01-000 |
US $279.68 |
||
|
2
|
2
67100-51F70-000
パネルアッシ,サイドゲート,ライト
|
67100-51F70-000 |
— | ||
| replacement | |||||
|
2
|
2
67100-51F71-000 PANEL ASSY,SIDE GATE,R |
67100-51F71-000 |
US $422.40 |
||
|
3
|
3
67120-60C00-000
Hinge, gate
|
67120-60C00-000 |
— | ||
| replacement | |||||
|
3
|
3
67120-60C01-000 HINGE,GATE |
67120-60C01-000 |
US $10.56 |
||
|
4
|
4
67400-51F70-000
パネルアッシ,サイドゲート,レフト
|
67400-51F70-000 |
— | ||
| replacement | |||||
|
4
|
4
67400-51F71-000 PANEL ASSY,SIDE GATE,L |
67400-51F71-000 |
US $422.40 |
||
|
5
|
5
67420-60C00-000
Hinge, gate
|
67420-60C00-000 |
— | ||
| replacement | |||||
|
5
|
5
67420-60C01-000 HINGE,GATE |
67420-60C01-000 |
US $10.03 |
||
|
6
|
6
67700-51F00-000 PANEL ASSY,REAR GATE |
67700-51F00-000 |
US $360 |
||
|
7
|
7
67120-60C00-000
Hinge, gate
|
67120-60C00-000 |
— | ||
| replacement | |||||
|
7
|
7
67120-60C01-000 HINGE,GATE |
67120-60C01-000 |
US $10.56 |
||
|
8
|
8
09103-06076-000
Bolt,6x16
|
09103-06076-000 |
— | ||
|
9
|
9
72840-60C10-000
ハンドル,サイドゲートロック,ライト
|
72840-60C10-000 |
— | ||
| replacement | |||||
|
9
|
9
72840-51F01-000 HANDLE,SIDE GATE LOCK |
72840-51F01-000 |
US $31.20 |
||
|
10
|
10
72850-60C10-000
ハンドル,サイドゲートロック,レフト
|
72850-60C10-000 |
— | ||
| replacement | |||||
|
10
|
10
72840-51F01-000 HANDLE,SIDE GATE LOCK |
72840-51F01-000 |
US $31.20 |
||
|
11
|
11
73941-79001-000
Stopper, gate open
|
73941-79001-000 |
— | ||
| replacement | |||||
|
11
|
11
73941-79010-000 STOPPER,GATE OPEN |
73941-79010-000 |
from US $5.25 |
||
|
12
|
12
72866-60C00-000 STOPPER,REAR GATE OPEN |
72866-60C00-000 |
US $5.12 |
||
|
13
|
13
09321-08005-000
CUSHION
|
09321-08005-000 |
— | ||
| replacement | |||||
|
13
|
13
09321-08025-000 Cushion |
09321-08025-000 |
from US $1.76 |
||
|
14
|
14
72861-60C00-000 CAP,GATE PANEL,R |
72861-60C00-000 |
from US $2.57 |
||
|
15
|
15
72862-60C00-000 CAP,GATE PANEL,L |
72862-60C00-000 |
from US $2.57 |
||
|
16
|
16
72870-60C10-000
ハンドル,リヤゲートロック,ライト
|
72870-60C10-000 |
— | ||
| replacement | |||||
|
16
|
16
72870-51F01-000 HANDLE,REAR GATE LOCK |
72870-51F01-000 |
US $31.20 |
||
|
17
|
17
72880-60C10-000
ハンドル,リヤゲートロック,レフト
|
72880-60C10-000 |
— | ||
| replacement | |||||
|
17
|
17
72870-51F01-000 HANDLE,REAR GATE LOCK |
72870-51F01-000 |
US $31.20 |
||
|
18
|
18
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
18
|
18
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
19
|
19
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
19
|
19
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
20
|
20
72867-60C00-000 PROTECTOR,SIDE GATE RR |
72867-60C00-000 |
US $2.08 |
||
|
21
|
21
72893-70D00-000 PROTECTOR,GATE LOCK HANDLEDA21T-124299~ |
72893-70D00-000 |
US $1.60 |
||
