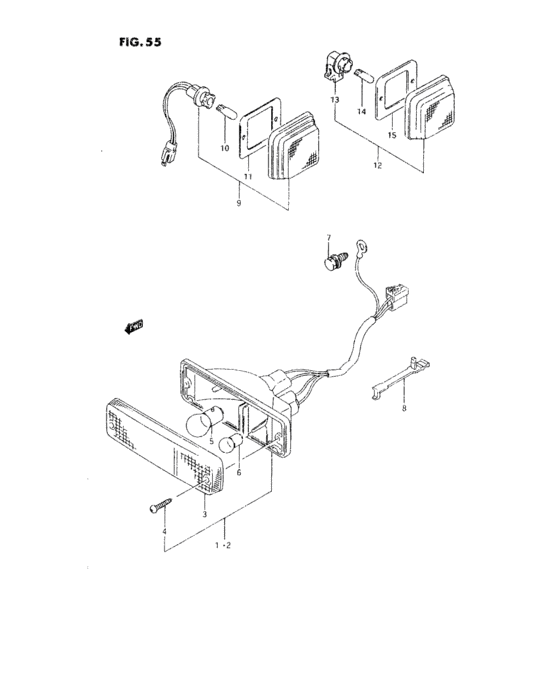

Front lamp (FRONT LAMP) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- transmission
- 5MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35601-78020-000 LAMP ASSY,FR COMB,RLENS:AMBER <-35601-60C00 |
35601-78020-000 |
US $52.62 |
||
|
1
|
1
35601-81020-000 LAMP ASSY,FR COMB,RLENS:CLEAR <-35601-60C10 |
35601-81020-000 |
US $68 |
||
|
1
|
1
35601-60C20-000
LAMP ASSY,FR COMB,R
|
35601-60C20-000 |
— | ||
|
2
|
2
35602-78020-000 LAMP ASSY,FR COMB,LLENS:AMBER <-35602-60C00 |
35602-78020-000 |
US $82.06 |
||
|
2
|
2
35602-81020-000 LAMP ASSY,FR COMB,LLENS:CLEAR <-35602-60C10 |
35602-81020-000 |
US $61.60 |
||
|
2
|
2
35602-60C20-000
Lamp assy, combination lh
|
35602-60C20-000 |
— | ||
|
3
|
3
35612-81000-000 LENS,FR COMB LAMP |
35612-81000-000 |
US $10.94 |
||
|
3
|
3
35612-81010-000 LENS |
35612-81010-000 |
US $6.08 |
||
|
3
|
3
35612-86000-000 LENS |
35612-86000-000 |
US $11.36 |
||
|
4
|
4
35625-50A00-000
Screw
IN USE LENS:AMBER |
35625-50A00-000 |
— | ||
| replacements | |||||
|
4
|
4
02112-0425B-000 SCREWIN USE LENS:AMBER |
02112-0425B-000 |
from US $0.80 |
||
|
4
|
4
02112-04253-000
Screw
IN USE LENS:AMBER |
02112-04253-000 |
— | ||
|
4
|
4
03512-04253-000
Screw
IN USE LENS:CLEAR |
03512-04253-000 |
— | ||
| replacement | |||||
|
4
|
4
03511-0425A-000 SCREWIN USE LENS:CLEAR |
03511-0425A-000 |
US $9.90 |
||
|
5
|
5
09471-12056-000
Bulb (12v, 21w)
IN USE LENS:AMBER |
09471-12056-000 |
— | ||
| replacement | |||||
|
5
|
5
09471-12045-000 BULB(12V21W)IN USE LENS:AMBER |
09471-12045-000 |
from US $2.54 |
||
|
5
|
5
09471-12045-000 BULB(12V21W)IN USE LENS:CLEAR |
09471-12045-000 |
from US $2.54 |
||
|
6
|
6
09471-12058-000
Bulb 12v5w
IN USE LENS:AMBER |
09471-12058-000 |
— | ||
| replacement | |||||
|
6
|
6
09471-12140-000 BULB(12V5W)IN USE LENS:AMBER |
09471-12140-000 |
from US $2.03 |
||
|
6
|
6
09471-12140-000 BULB(12V5W)IN USE LENS:CLEAR |
09471-12140-000 |
from US $2.03 |
||
|
7
|
7
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
7
|
7
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
8
|
8
09407-07401-000
CLAMP(L:55)
|
09407-07401-000 |
— | ||
| replacement | |||||
|
8
|
8
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
9
|
9
36410-85000-000 LAMP ASSY,SIDE TURN SIG |
36410-85000-000 |
US $79.20 |
||
|
9
|
9
36410-85010-000
LAMP ASSY,SIDE TURN SIG
,Finland,Switzerland,Belgium,Germany,Holland,New Zealand,Austria,Channel Islands,Israel,8 |
36410-85010-000 |
— | ||
|
10
|
10
09471-12081-000
Bulb (12v,5w)
|
09471-12081-000 |
— | ||
| replacement | |||||
|
10
|
10
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $2.84 |
||
|
11
|
11
36413-85000-000
ガスケット,ベース
|
36413-85000-000 |
— | ||
|
12
|
12
36410-70D00-000
ランプアッシ,サイドターンシグナル
DA21T-120830~ DA21V-133347~,JSAEDA21V00132928~ |
36410-70D00-000 |
— | ||
| replacement | |||||
|
12
|
12
36410-70D20-000 LAMP ASSY,SIDE TURN SIGDA21T-120830~ DA21V-133347~,JSAEDA21V00132928~ |
36410-70D20-000 |
US $79.20 |
||
|
12
|
12
36410-70D10-000 LAMP ASSY,SIDE TURN SIG,Finland,Switzerland,Belgium,Germany,Holland,New Zealand,Austria,Channel Islands,Israel,8 DA21V-133347~,JSAEDA21V00132928~,JSAEDA21V0B130226~ |
36410-70D10-000 |
US $19.87 |
||
|
13
|
13
36258-70C30-000 SOCKET,BULBDA21T-120830~ DA21V-133347~,JSAEDA21V00132928~,JSAEDA21V0B130226~ |
36258-70C30-000 |
US $6.40 |
||
|
14
|
14
09471-12081-000
Bulb (12v,5w)
|
09471-12081-000 |
— | ||
| replacement | |||||
|
14
|
14
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $2.84 |
||
|
15
|
15
36413-85000-000
ガスケット,ベース
|
36413-85000-000 |
— | ||
