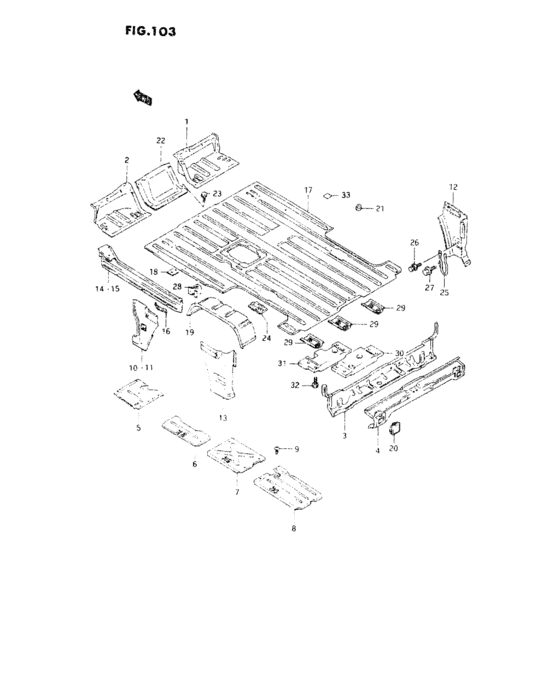

Rear floor (V:LOW FLOOR) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- transmission
- 5MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61721-75D00-000 PANEL,REAR FLOOR FR,R |
61721-75D00-000 |
US $69.55 |
||
|
2
|
2
61731-85450-000 PANEL,REAR FLOOR FR,L |
61731-85450-000 |
US $55.94 |
||
|
3
|
3
61850-85720-000
Panel, tail skrit inner
|
61850-85720-000 |
— | ||
| replacement | |||||
|
3
|
3
61850-67C00-000 PANEL,TAIL SKIRT INNER |
61850-67C00-000 |
US $108.93 |
||
|
3
|
3
61850-67C00-000 PANEL,TAIL SKIRT INNERPhilippines |
61850-67C00-000 |
US $108.93 |
||
|
4
|
4
59910-85720-000 PANEL,TAIL SKIRT OUTER |
59910-85720-000 |
US $59.20 |
||
|
5
|
5
75511-85500-000
パネル,ヒートプロテクタ,NO.1
|
75511-85500-000 |
— | ||
|
5
|
5
75511-75D00-000 PANEL,HEAT PROTECTOR NO.1DA21T-120830~ DA21V-133347~,JSAEDA21V00132928~,JSAEDA21V0B130226~ |
75511-75D00-000 |
US $7.84 |
||
|
6
|
6
75521-85500-000 PANEL,HEAT PROTECTOR NO.2 |
75521-85500-000 |
US $11.84 |
||
|
7
|
7
75531-85501-000 PANEL,HEAT PROTECTOR NO.3 |
75531-85501-000 |
US $25.60 |
||
|
8
|
8
75541-85500-000
PANEL,HEAT PROTECTOR NO.4
|
75541-85500-000 |
— | ||
| replacement | |||||
|
8
|
8
75541-85501-000 PANEL,HEAT PROTECTOR NO.4 |
75541-85501-000 |
US $25.60 |
||
|
9
|
9
03141-06123-000
Screw 6x12
|
03141-06123-000 |
— | ||
| replacement | |||||
|
9
|
9
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
10
|
10
61811-85740-000
LOCKER,RR FL SIDE FR,R
|
61811-85740-000 |
— | ||
|
10
|
10
61810-85700-000
LOCKER,RR FL SIDE FR,R
,,Chile,Finland,Switzerland,Belgium,2,5,7,Austria,6,Israel,Hungary,Ireland,Sinagpore:DA21V-141501~ 3:W/REAR SEAT,BELT Hong Kong:DA21V-149012~ |
61810-85700-000 |
— | ||
|
11
|
11
61821-85740-000
LOCKER,RR FL SIDE FR,L
|
61821-85740-000 |
— | ||
|
11
|
11
61820-85700-000
LOCKER,RR FL SIDE FR,L
,,Chile,Finland,Switzerland,Belgium,2,5,7,Austria,6,Israel,Hungary,Ireland,Sinagpore:DA21V-141501~ 3:W/REAR SEAT,BELT Hong Kong:DA21V-149012~ |
61820-85700-000 |
— | ||
|
12
|
12
61831-85720-000
ロッカ,リヤフロアサイドリヤ,ライト
|
61831-85720-000 |
— | ||
| replacements | |||||
|
12
|
12
61830-85740-000 LOCKER,RR FL SIDE RR,R |
61830-85740-000 |
US $30.40 |
||
|
12
|
12
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole |
84761-50X50-000 |
US $6.72 |
||
|
12
|
12
61830-85740-000 LOCKER,RR FL SIDE RR,R,,2,Austria,Hungary |
61830-85740-000 |
US $30.40 |
||
|
13
|
13
61841-85720-000 LOCKER,RR FL SIDE RR,L |
61841-85720-000 |
US $28.80 |
||
|
14
|
14
61870-85500-000
レール,スライドロア,ライト
|
61870-85500-000 |
— | ||
| replacement | |||||
|
14
|
14
61870-85740-000 RAIL,SLIDE LWR,R |
61870-85740-000 |
US $123.28 |
||
|
14
|
14
61870-85740-000 RAIL,SLIDE LWR,R,,Finland,Switzerland,Belgium,2,6,Austria,6,Israel,Hungary,Ireland |
61870-85740-000 |
US $123.28 |
||
|
15
|
15
61880-85500-000
レール,スライドロア,レフト
|
61880-85500-000 |
— | ||
| replacement | |||||
|
15
|
15
61880-85740-000 RAIL,SLIDE LWR,L |
61880-85740-000 |
US $123.28 |
||
|
15
|
15
61880-85740-000 RAIL,SLIDE LWR,L,,Finland,Switzerland,Belgium,2,5,Austria,6,Israel,Hungary,Ireland |
61880-85740-000 |
US $123.28 |
||
|
16
|
16
65637-79500-000 SPRING,SLIDE ROLLER STOP |
65637-79500-000 |
US $5.56 |
||
|
17
|
17
61751-85500-000 PANEL,REAR FLOOR LOW |
61751-85500-000 |
US $422.56 |
||
|
18
|
18
61761-85500-000 BRACKET,RR SEAT FR LEG |
61761-85500-000 |
US $5.92 |
||
|
19
|
19
61771-85500-000 PANEL,RR WHEEL HSG |
61771-85500-000 |
US $37.90 |
||
|
20
|
20
75441-85500-000 CAP,TAIL SKIRT OUTER |
75441-85500-000 |
US $3.46 |
||
|
21
|
21
09250-15007-000
Plug
|
09250-15007-000 |
— | ||
| replacement | |||||
|
21
|
21
09250-15010-000 PLUG(OD:19)Plug, silencer cover |
09250-15010-000 |
from US $1.60 |
||
|
22
|
22
75402-74D50-000 LID ASSY,ENGINE SERVICE |
75402-74D50-000 |
US $113.71 |
||
|
23
|
23
01550-08167-000 BoltBolt (8x16) |
01550-08167-000 |
from US $4.49 |
||
|
24
|
24
61762-85700-000 BRACKET,3RD SEATW/6 PERSONS |
61762-85700-000 |
US $10.52 |
||
|
25
|
25
72810-85720-000
Hook, rear
,,2,Austria,Hungary,Switzerland:JSAEDA21V00140712~ |
72810-85720-000 |
— | ||
|
26
|
26
01684-08206-000
ボルト
,,2,Austria,Hungary,Switzerland:JSAEDA21V00140712~ |
01684-08206-000 |
— | ||
| replacement | |||||
|
26
|
26
01580-0820A-000 Bolt,,2,Austria,Hungary,Switzerland:JSAEDA21V00140712~ |
01580-0820A-000 |
from US $0.91 |
||
|
27
|
27
01517-12206-000
Bolt
,,2,Austria,Hungary,Switzerland:JSAEDA21V00140712~ |
01517-12206-000 |
— | ||
| replacement | |||||
|
27
|
27
01550-1220B-000 Bolt,,2,Austria,Hungary,Switzerland:JSAEDA21V00140712~ |
01550-1220B-000 |
from US $6.49 |
||
|
28
|
28
59931-85700-000
Hanger, muffler catalyst
Germany,Holland:W/CATALYZER |
59931-85700-000 |
— | ||
|
28
|
28
59931-85710-000
Hanger, muffler oatalyst
Germany:W/CATALYZER: JSAEDA21V00140713~ |
59931-85710-000 |
— | ||
|
29
|
29
61752-67C30-000
Bracket, rear chassis weight
,,Finland,Belgium,2,5,Israel,Hungary,Ireland |
61752-67C30-000 |
— | ||
|
30
|
30
71911-67C50-000
Weight,rear chassis,r
,,Finland,Belgium,2,5,Israel,Hungary,Ireland |
71911-67C50-000 |
— | ||
|
31
|
31
71912-67C50-000
Weight,rear chassis,l
,,Finland,Belgium,2,5,Israel,Hungary,Ireland |
71912-67C50-000 |
— | ||
|
32
|
32
01974-10503-000
Bolt, rear chassis weight
,,Finland,Belgium,2,5,Israel,Hungary,Ireland |
01974-10503-000 |
— | ||
| replacement | |||||
|
32
|
32
01580-1050A-000 Bolt,,Finland,Belgium,2,5,Israel,Hungary,Ireland |
01580-1050A-000 |
US $21.70 |
||
|
33
|
33
72115-70000-000
シール
|
72115-70000-000 |
— | ||
| replacement | |||||
|
33
|
33
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole |
84761-50X50-000 |
US $6.72 |
||
