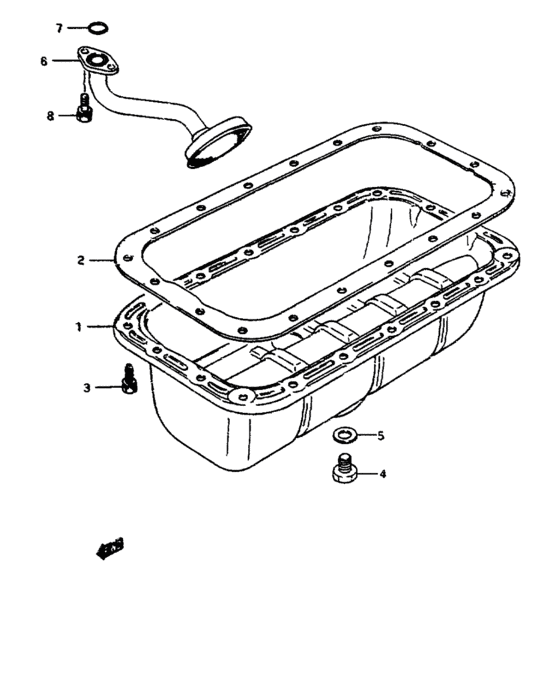

Oil pan (OIL PAN) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11510-85200-000
Pan, oil
|
11510-85200-000 |
— | ||
| replacement | |||||
|
1
|
1
11510-85202-000
PAN,OIL
|
11510-85202-000 |
— | ||
|
2
|
2
11529-73001-000 GASKET,OIL PAN |
11529-73001-000 |
US $17.60 |
||
|
3
|
3
09117-06025-000
Bolt
|
09117-06025-000 |
— | ||
| replacement | |||||
|
3
|
3
09117-06059-000 BOLT(6X16) |
09117-06059-000 |
US $0.80 |
||
|
4
|
4
09247-12101-000 BOLT |
09247-12101-000 |
US $2.24 |
||
|
5
|
5
09168-12007-000
ガスケット,12X21X2
|
09168-12007-000 |
— | ||
| replacements | |||||
|
5
|
5
09168-12016-000 GASKET(12.2X21X0.8) |
09168-12016-000 |
from US $1.12 |
||
|
5
|
5
09168-12018-000 GASKET(12X21X2) |
09168-12018-000 |
from US $1.60 |
||
|
6
|
6
16520-79101-000 STRAINER,OIL PUMP |
16520-79101-000 |
US $22.40 |
||
|
7
|
7
09280-16005-000 O RING(D:2.4,ID:15.8)O ring, exhaust pipe |
09280-16005-000 |
from US $1.31 |
||
|
8
|
8
01137-06163-000
ボルト
|
01137-06163-000 |
— | ||
| replacements | |||||
|
8
|
8
01570-0616B-000 Bolt |
01570-0616B-000 |
from US $0.80 |
||
|
8
|
8
01570-0616A-000 Bolt |
01570-0616A-000 |
from US $0.80 |
||
