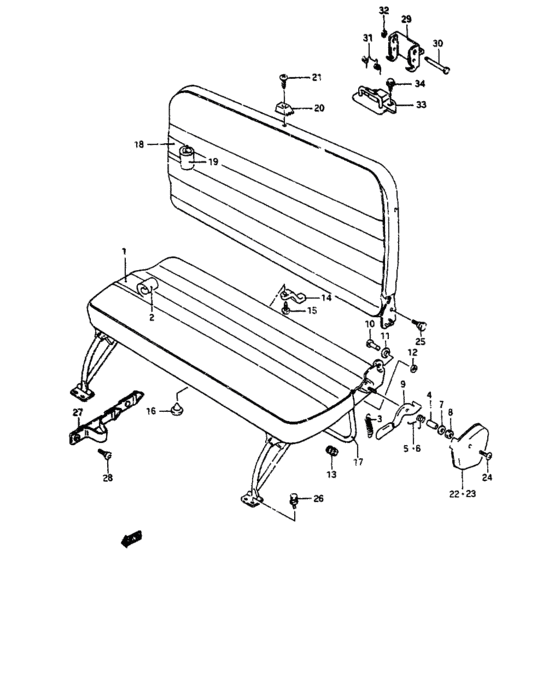

Rear seat (BENCH TYPE) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87105-85720-000
Cushion sub assy, seat
|
87105-85720-000 |
— | ||
|
2
|
2
87180-85720-3HG
Cover, cushion
|
87180-85720-3HG |
— | ||
|
3
|
3
09443-14015-000 SPRING |
09443-14015-000 |
from US $4.57 |
||
|
4
|
4
87217-85530-000 COLLAR,RR SEAT STOPPER BAND |
87217-85530-000 |
US $2.02 |
||
|
5
|
5
87214-85720-000 SPRING,RR SEAT HINGE,R |
87214-85720-000 |
US $4.93 |
||
|
6
|
6
87215-85720-000 SPRING,RR SEAT HINGE,L |
87215-85720-000 |
US $4.93 |
||
|
7
|
7
08322-21086-000
Washer 8mm
|
08322-21086-000 |
— | ||
| replacements | |||||
|
7
|
7
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
7
|
7
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
8
|
8
08310-22088-000
Nut
|
08310-22088-000 |
— | ||
| replacement | |||||
|
8
|
8
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
|
9
|
9
87216-85530-5PK
グリップ,リヤシートヒンジレバー(ブラック)
|
87216-85530-5PK |
— | ||
| replacements | |||||
|
9
|
9
87216-85530-5ES
KNOB,RR BACK LOCK
|
87216-85530-5ES |
— | ||
|
9
|
9
87216-85530-5RT GRIP,RR SEAT HNG LEVER |
87216-85530-5RT |
US $4.31 |
||
|
10
|
10
09208-06003-000 Pin |
09208-06003-000 |
US $5.93 |
||
| replacement | |||||
|
10
|
10
87259-85510-000 PIN |
87259-85510-000 |
from US $1.68 |
||
|
11
|
11
09164-07001-000 WASHER |
09164-07001-000 |
US $1.60 |
||
|
12
|
12
08332-11046-000
E ring
|
08332-11046-000 |
— | ||
| replacements | |||||
|
12
|
12
08332-1104B-000 E RING |
08332-1104B-000 |
from US $0.80 |
||
|
12
|
12
08332-1104A-000 E RING |
08332-1104A-000 |
from US $0.76 |
||
|
13
|
13
84334-79450-000
Cushion, rear leg
|
84334-79450-000 |
— | ||
|
14
|
14
87291-85720-000
CUSHION,REAR SEAT REAR
|
87291-85720-000 |
— | ||
|
15
|
15
03242-05165-000
Screw
|
03242-05165-000 |
— | ||
| replacement | |||||
|
15
|
15
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
16
|
16
09321-06016-000 CUSHION |
09321-06016-000 |
from US $1.76 |
||
|
17
|
17
87260-85720-000
Leg, seat cushion
|
87260-85720-000 |
— | ||
|
18
|
18
87305-85720-000
Back sub assy, seat
|
87305-85720-000 |
— | ||
|
19
|
19
87380-85720-3HG
Cover, back
|
87380-85720-3HG |
— | ||
|
20
|
20
87396-85530-000 CUSHION,REAR SEAT BACK STOPPER |
87396-85530-000 |
US $1.98 |
||
|
21
|
21
03241-05105-000
Screw
|
03241-05105-000 |
— | ||
| replacements | |||||
|
21
|
21
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
21
|
21
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
22
|
22
87221-85530-5PK
カバー,リヤシートヒンジ,ライト(ブラック)
|
87221-85530-5PK |
— | ||
|
23
|
23
87222-85530-5PK
COVER,RR SEAT HINGE,L
|
87222-85530-5PK |
— | ||
|
24
|
24
03242-05165-000
Screw
|
03242-05165-000 |
— | ||
| replacement | |||||
|
24
|
24
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
25
|
25
87271-85500-000
ボルト,リヤシートバックピボット
|
87271-85500-000 |
— | ||
| replacement | |||||
|
25
|
25
09111-08044-000 BOLT(8X16) |
09111-08044-000 |
US $14.40 |
||
|
26
|
26
01177-06166-000
Bolt, rear
|
01177-06166-000 |
— | ||
| replacement | |||||
|
26
|
26
01580-0616A-000 BOLT |
01580-0616A-000 |
from US $0.96 |
||
|
27
|
27
87880-85720-000 BAND,RR SEAT STOPPER |
87880-85720-000 |
US $15.46 |
||
|
28
|
28
09139-06040-000 SCREW(6X20) |
09139-06040-000 |
US $9.60 |
||
|
29
|
29
84363-79450-000 STOPPER,SEAT BELT ANCHOR |
84363-79450-000 |
US $20.61 |
||
|
30
|
30
84366-79450-000 PIN,SEAT BELT ANCHOR STOPPER |
84366-79450-000 |
US $4.53 |
||
|
31
|
31
84367-79450-000
Spring,rr seat belt
|
84367-79450-000 |
— | ||
|
32
|
32
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
32
|
32
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
32
|
32
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
33
|
33
87830-85720-000
Striker comp,rear seat lock
|
87830-85720-000 |
— | ||
|
34
|
34
09103-12020-000
ボルト
|
09103-12020-000 |
— | ||
| replacement | |||||
|
34
|
34
09103-12040-000 BOLT(12X22) |
09103-12040-000 |
US $1.92 |
||
