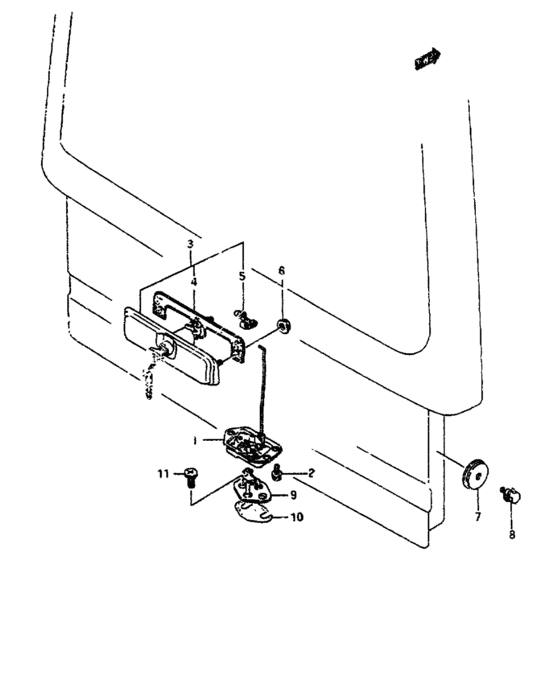

Back door lock (BACK DOOR LOCK) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- transmission
- 4MT
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82510-85500-000 LATCH ASSY,BACK DRSTD ROOF |
82510-85500-000 |
US $54.40 |
||
|
2
|
2
02112-76126-000
スクリュ
|
02112-76126-000 |
— | ||
| replacement | |||||
|
2
|
2
02112-7612B-000 SCREW |
02112-7612B-000 |
from US $0.96 |
||
|
3
|
3
82500-85811-0CB CYLINDER ASSY,DR LOCK |
82500-85811-0CB |
US $63.20 |
||
|
4
|
4
82586-85500-000 PACKING,BACK DOOR CYL LOCK |
82586-85500-000 |
US $6.88 |
||
|
5
|
5
09209-05016-000 PIN |
09209-05016-000 |
US $1.67 |
||
|
6
|
6
08316-26066-000
Nut 6mm
|
08316-26066-000 |
— | ||
| replacements | |||||
|
6
|
6
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
6
|
6
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
7
|
7
82761-85500-000 MALE,BACK DR SIDE STOP DR |
82761-85500-000 |
US $8.32 |
||
|
8
|
8
09118-08001-000
Bolt
|
09118-08001-000 |
— | ||
| replacement | |||||
|
8
|
8
09118-08128-000 BOLT(8X16)Bolt, front fender, front |
09118-08128-000 |
US $1.28 |
||
|
9
|
9
82650-85500-000 STRIKER,BACK DOOR LATCH |
82650-85500-000 |
US $20.80 |
||
|
10
|
10
78199-78000-000 SPACER,DOOR LOCK STRIKER |
78199-78000-000 |
US $1.60 |
||
|
11
|
11
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
from US $0.90 |
||
| replacement | |||||
|
11
|
11
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
US $1.44 |
||
