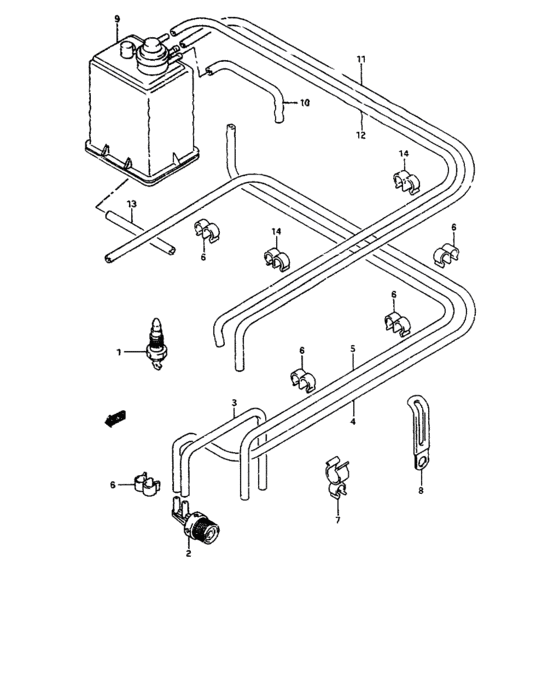

Emission control (EMISSION CONTROL) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- transmission
- 4MT
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18212-85220-000
Switch, bimetal thermel
|
18212-85220-000 |
— | ||
| replacement | |||||
|
1
|
1
18212-85200-000 SWITCH,BIMETAL THERMAL |
18212-85200-000 |
US $64.40 |
||
|
2
|
2
18550-78101-000 VALVE ASSY,BIMETAL SW BVS |
18550-78101-000 |
US $84.80 |
||
|
3
|
3
09343-03098-000
ホース,#13/3.5X7.5X195
|
09343-03098-000 |
— | ||
| replacements | |||||
|
3
|
3
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
3
|
3
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
4
|
4
09343-03082-000
ホース,#32/3.5X7.5X655
|
09343-03082-000 |
— | ||
| replacements | |||||
|
4
|
4
09355-35754-00B
HOSE(3.5X7.5X2000)
|
09355-35754-00B |
— | ||
|
4
|
4
09355-35006-00B Hose(3.5X7.5X2000) |
09355-35006-00B |
US $28.80 |
||
|
5
|
5
09343-03074-000
New Genuine Part
|
09343-03074-000 |
— | ||
| replacements | |||||
|
5
|
5
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
5
|
5
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
6
|
6
09408-00033-000 CLAMPClamp |
09408-00033-000 |
from US $1.60 |
||
|
7
|
7
09408-00060-000 CLAMP |
09408-00060-000 |
US $13.20 |
||
|
8
|
8
09404-08402-000
Clamp
|
09404-08402-000 |
— | ||
| replacement | |||||
|
8
|
8
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
9
|
9
18560-86500-000 CANISTER |
18560-86500-000 |
US $98.62 |
||
|
10
|
10
09359-40801-300
Hose
L:300->145 |
09359-40801-300 |
— | ||
| replacement | |||||
|
10
|
10
09359-40801-600 HOSEHose, w/g cont inlet L:300->145 |
09359-40801-600 |
US $16.04 |
||
|
11
|
11
09354-40006-600
Hose, canister purge
L:600->570 |
09354-40006-600 |
— | ||
|
12
|
12
09343-03064-000
ホース,3.5X7.5X550
|
09343-03064-000 |
— | ||
| replacements | |||||
|
12
|
12
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
12
|
12
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
13
|
13
09351-70113-300
ホース,7X11X300
L:300->110 |
09351-70113-300 |
— | ||
| replacement | |||||
|
13
|
13
09351-70113-600 HOSE(7X11X600)L:300->110 |
09351-70113-600 |
US $3.52 |
||
|
14
|
14
09408-00033-000 CLAMPClamp |
09408-00033-000 |
from US $1.60 |
||
