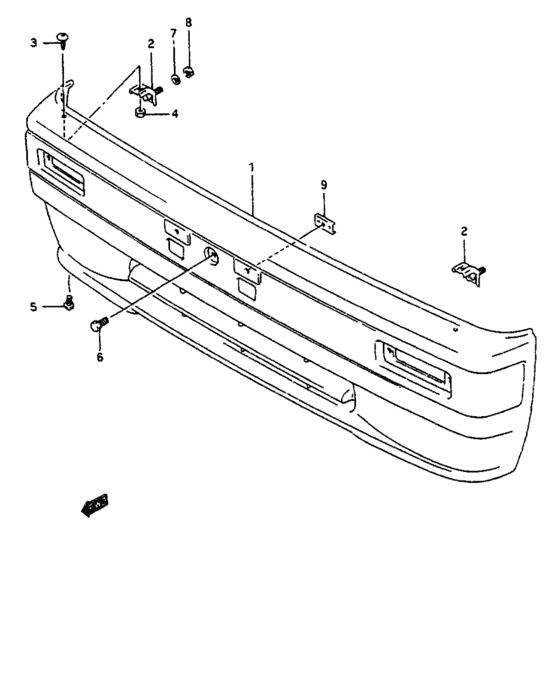

Front bumper (FRONT BUMPER) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- transmission
- 4MT
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71711-62C00-5PK
BAR,FR BUMPER(BLACK)
|
71711-62C00-5PK |
— | ||
|
2
|
2
71721-60C00-000 STAY,FRONT BUMPER |
71721-60C00-000 |
US $4.32 |
||
|
3
|
3
57439-79001-000
ボルト,バンパ
|
57439-79001-000 |
— | ||
| replacement | |||||
|
3
|
3
57439-79003-000 BOLT,FR BUMPER |
57439-79003-000 |
US $1.92 |
||
|
4
|
4
08310-11068-000
Nut
|
08310-11068-000 |
— | ||
| replacement | |||||
|
4
|
4
08310-00067-000 NUT |
08310-00067-000 |
from US $0.76 |
||
|
5
|
5
02142-06125-000
Screw
|
02142-06125-000 |
— | ||
| replacements | |||||
|
5
|
5
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
5
|
5
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
6
|
6
01184-08166-000
ボルト
|
01184-08166-000 |
— | ||
| replacement | |||||
|
6
|
6
01580-0816A-000 Bolt |
01580-0816A-000 |
from US $0.96 |
||
|
7
|
7
09161-07008-000 WASHER(7.5X22X1) |
09161-07008-000 |
US $11.80 |
||
|
8
|
8
08316-16086-000
Nut, reverse lever pivot
|
08316-16086-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
9
|
9
71724-60C00-000 RETAINER,FR LICENSE PLATE |
71724-60C00-000 |
US $1.60 |
||
