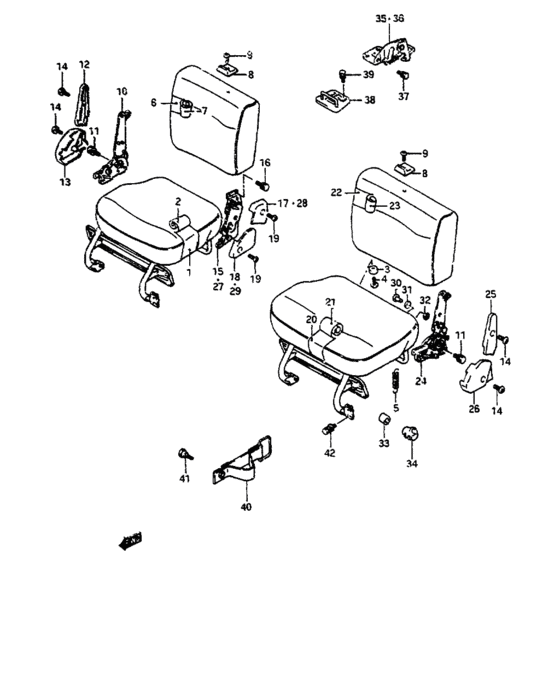

Rear seat (SEPARATE TYPE) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- transmission
- 4MT
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87105-85700-000
Cushion sub assy, seat rh
|
87105-85700-000 |
— | ||
|
2
|
2
87180-85700-3HG
Cover, seat cushion rh
|
87180-85700-3HG |
— | ||
|
3
|
3
09320-06003-000 CUSHION |
09320-06003-000 |
US $11.40 |
||
|
4
|
4
03242-05165-000
Screw
|
03242-05165-000 |
— | ||
| replacement | |||||
|
4
|
4
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
5
|
5
09443-14015-000 SPRING |
09443-14015-000 |
from US $4.57 |
||
|
6
|
6
87305-85700-000
Back sub assy, seat rh
|
87305-85700-000 |
— | ||
|
7
|
7
87380-85700-3HG
Cover, back rh
|
87380-85700-3HG |
— | ||
|
8
|
8
87396-85500-000
クッション
|
87396-85500-000 |
— | ||
|
9
|
9
03242-05165-000
Screw
|
03242-05165-000 |
— | ||
| replacement | |||||
|
9
|
9
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
10
|
10
87210-85701-5PK
Reclining assy, rh
|
87210-85701-5PK |
— | ||
|
11
|
11
01137-08166-000
ボルト
|
01137-08166-000 |
— | ||
| replacement | |||||
|
11
|
11
01570-0816A-000 BOLT |
01570-0816A-000 |
from US $0.96 |
||
|
12
|
12
87222-85500-5PK
カバー,リクライニングアッシアッパ,ライト(ブラック
|
87222-85500-5PK |
— | ||
|
13
|
13
87221-85500-5PK
COVER,RECLINING ASSY,LOWER,R
|
87221-85500-5PK |
— | ||
|
14
|
14
03241-05125-000
Screw
|
03241-05125-000 |
— | ||
| replacement | |||||
|
14
|
14
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
15
|
15
87280-85501-000
ヒンジ,リヤシートバック,ライト
|
87280-85501-000 |
— | ||
|
16
|
16
01137-08166-000
ボルト
|
01137-08166-000 |
— | ||
| replacement | |||||
|
16
|
16
01570-0816A-000 BOLT |
01570-0816A-000 |
from US $0.96 |
||
|
17
|
17
87297-85500-5PK
カバー,リヤシートヒンジアッパ,ライト(ブラック)
|
87297-85500-5PK |
— | ||
|
18
|
18
87296-85700-5PK
Cover, hinge lower rh
|
87296-85700-5PK |
— | ||
|
19
|
19
03241-05125-000
Screw
|
03241-05125-000 |
— | ||
| replacement | |||||
|
19
|
19
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
20
|
20
87106-85700-000
Cushion sub assy, seat lh
|
87106-85700-000 |
— | ||
|
21
|
21
87580-85700-3HG
Cover, seat cushion lh
|
87580-85700-3HG |
— | ||
|
22
|
22
87306-85700-000
Back sub assy, seat lh
|
87306-85700-000 |
— | ||
|
23
|
23
87780-85700-3HG
Cover, seat back lh
|
87780-85700-3HG |
— | ||
|
24
|
24
87610-85701-5PK
Reclining assy, lh
|
87610-85701-5PK |
— | ||
|
25
|
25
87622-85500-5PK
COVER,RECLINING ASSY UPPER,L
|
87622-85500-5PK |
— | ||
|
26
|
26
87621-85500-5PK
COVER,RECLINING ASSY LOWER,L
|
87621-85500-5PK |
— | ||
|
27
|
27
87680-85501-000
ヒンジ,リヤシートバック,レフト
|
87680-85501-000 |
— | ||
|
28
|
28
87697-05500-5PK
Cover, hinge upper lh
|
87697-05500-5PK |
— | ||
|
29
|
29
87696-85700-5PK
Cover, hinge lower lh
|
87696-85700-5PK |
— | ||
|
30
|
30
09208-06003-000 Pin |
09208-06003-000 |
US $5.93 |
||
| replacement | |||||
|
30
|
30
87259-85510-000 PIN |
87259-85510-000 |
from US $1.68 |
||
|
31
|
31
09164-07001-000 WASHER |
09164-07001-000 |
US $1.60 |
||
|
32
|
32
08332-11046-000
E ring
|
08332-11046-000 |
— | ||
| replacements | |||||
|
32
|
32
08332-1104B-000 E RING |
08332-1104B-000 |
from US $0.80 |
||
|
32
|
32
08332-1104A-000 E RING |
08332-1104A-000 |
from US $0.76 |
||
|
33
|
33
84354-79450-000
Cushion
|
84354-79450-000 |
— | ||
|
34
|
34
87296-80470-000
クッション,リヤシートリヤレッグ
|
87296-80470-000 |
— | ||
| replacement | |||||
|
34
|
34
87296-80471-000
CUSHION,RR SEAT REAR LEG
|
87296-80471-000 |
— | ||
|
35
|
35
87850-85700-000
Lock, rear seat rh
|
87850-85700-000 |
— | ||
|
36
|
36
87950-85700-000
Lock, rear seat lh
|
87950-85700-000 |
— | ||
|
37
|
37
01137-08165-000
Bolt
|
01137-08165-000 |
— | ||
| replacement | |||||
|
37
|
37
01570-0816A-000 BOLT |
01570-0816A-000 |
from US $0.96 |
||
|
38
|
38
87830-85700-000
Striker, seat lock
|
87830-85700-000 |
— | ||
|
39
|
39
09103-12020-000
ボルト
|
09103-12020-000 |
— | ||
| replacement | |||||
|
39
|
39
09103-12040-000 BOLT(12X22) |
09103-12040-000 |
US $1.92 |
||
|
40
|
40
87880-85500-000
BAND,RR SEAT STOPPER
|
87880-85500-000 |
— | ||
|
41
|
41
09139-06040-000 SCREW(6X20) |
09139-06040-000 |
US $9.60 |
||
|
42
|
42
01517-08166-000
Bolt 8x16
|
01517-08166-000 |
— | ||
| replacement | |||||
|
42
|
42
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
