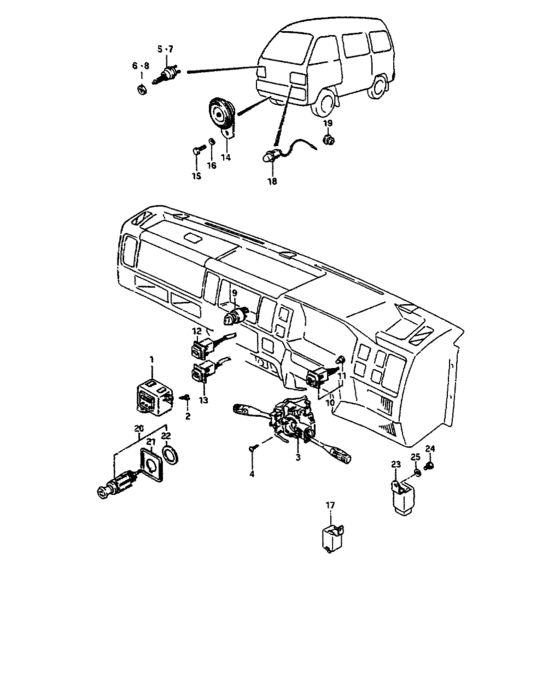

Switch (SWITCH) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- transmission
- 4MT
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34600-85000-000
Clock assy
|
34600-85000-000 |
— | ||
|
2
|
2
03541-05166-000
スクリュ
|
03541-05166-000 |
— | ||
| replacement | |||||
|
2
|
2
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
3
|
3
37400-83200-000
Switch assy, combination
TA |
37400-83200-000 |
— | ||
| replacement | |||||
|
3
|
3
37400-83201-000
SWITCH ASSY,COMB
TA |
37400-83201-000 |
— | ||
|
3
|
3
37400-83210-000
スイッチアッシ,コンビネーション
TX |
37400-83210-000 |
— | ||
| replacement | |||||
|
3
|
3
37400-77510-000 SWITCH ASSY,COMBTX |
37400-77510-000 |
US $545.60 |
||
|
4
|
4
03211-05166-000
Screw, l:16
|
03211-05166-000 |
— | ||
| replacement | |||||
|
4
|
4
03211-0516A-000 SCREW |
03211-0516A-000 |
US $0.80 |
||
|
5
|
5
37740-66010-000 SWITCH ASSY,BRAKE LAMP |
37740-66010-000 |
US $19.20 |
||
|
6
|
6
08310-22106-000
Nut
|
08310-22106-000 |
— | ||
| replacements | |||||
|
6
|
6
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
6
|
6
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
7
|
7
37740-66010-000 SWITCH ASSY,BRAKE LAMP |
37740-66010-000 |
US $19.20 |
||
|
8
|
8
08310-22106-000
Nut
|
08310-22106-000 |
— | ||
| replacements | |||||
|
8
|
8
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
8
|
8
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
9
|
9
37870-85000-000 SWITCH ASSY,HTR FAN MOTOR |
37870-85000-000 |
US $32.02 |
||
|
10
|
10
37860-80000-000 SWITCH ASSY,RR DEFOGGERW/REAR DEFOGGER |
37860-80000-000 |
US $37.90 |
||
|
11
|
11
37281-80000-000 BULB,INDICATORW/REAR DEFOGGER |
37281-80000-000 |
US $3.83 |
||
|
12
|
12
37370-84000-000 SWITCH ASSY,RR WIPERW/REAR WIPER |
37370-84000-000 |
US $58.40 |
||
|
13
|
13
37380-84000-000 SWITCH ASSY,RR WASHERW/REAR WIPER |
37380-84000-000 |
US $32.38 |
||
|
14
|
14
38500-78010-000
ホーンアッシ
|
38500-78010-000 |
— | ||
| replacement | |||||
|
14
|
14
38500-84101-000 HORN ASSY |
38500-84101-000 |
US $53.73 |
||
|
15
|
15
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
15
|
15
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
16
|
16
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
16
|
16
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
16
|
16
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
17
|
17
38610-50A00-000
リレーアッシ,ターンシグナル/4ウェイ
|
38610-50A00-000 |
— | ||
| replacement | |||||
|
17
|
17
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way |
38610-76G00-000 |
US $56.80 |
||
|
18
|
18
37940-79000-000
スイッチアッシ,パーキングブレーキ
|
37940-79000-000 |
— | ||
| replacement | |||||
|
18
|
18
37940-50A00-000 SWITCH ASSY,PARKING BRAKE |
37940-50A00-000 |
US $7.73 |
||
|
19
|
19
09308-03005-000 GROMMET |
09308-03005-000 |
US $12.90 |
||
|
20
|
20
39400-83810-000
ライタアッシ,シガレット
TX |
39400-83810-000 |
— | ||
| replacement | |||||
|
20
|
20
39400-83811-000 LIGHTER ASSY,CIGARETTETX |
39400-83811-000 |
US $14.40 |
||
|
21
|
21
39471-78001-000 RIM,CIGARETTE LIGHTERTX |
39471-78001-000 |
US $4.31 |
||
|
22
|
22
09160-23007-000 WASHER(23X34X1)TX |
09160-23007-000 |
US $15.50 |
||
|
23
|
23
38850-85710-000
CONTROLLER ASSY,FUEL SOLENOID
|
38850-85710-000 |
— | ||
|
24
|
24
01107-06106-000
Bolt, plate
|
01107-06106-000 |
— | ||
| replacement | |||||
|
24
|
24
01500-0610B-000 BOLTBolt |
01500-0610B-000 |
from US $0.80 |
||
|
25
|
25
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
25
|
25
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
