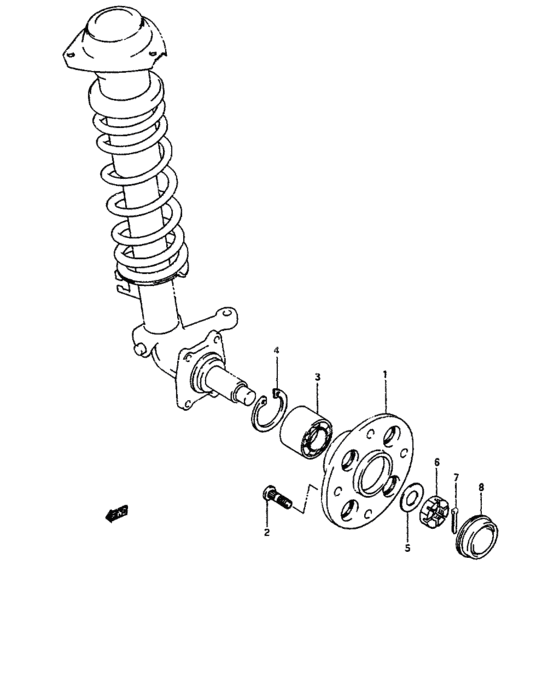

Front axle (FRONT AXLE) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- transmission
- 5MT
- grade
- TA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43421-85200-000
HUB,FR WHL
|
43421-85200-000 |
— | ||
|
2
|
2
09119-12007-000 BOLT |
09119-12007-000 |
from US $1.19 |
||
|
3
|
3
09267-28002-000
BEARING(28X58X42)
|
09267-28002-000 |
— | ||
|
4
|
4
08331-41589-000
Circlip
|
08331-41589-000 |
— | ||
| replacement | |||||
|
4
|
4
08331-4158A-000 CIRCLIP |
08331-4158A-000 |
from US $2.56 |
||
|
5
|
5
09160-21013-000
Washer
|
09160-21013-000 |
— | ||
| replacement | |||||
|
5
|
5
09160-21021-000 WASHER(20.5X39X4) |
09160-21021-000 |
US $1.92 |
||
|
6
|
6
09141-20002-000 NUT |
09141-20002-000 |
from US $2.56 |
||
|
7
|
7
04111-40306-000
Cotter pin
|
04111-40306-000 |
— | ||
| replacement | |||||
|
7
|
7
04111-4030A-000 PINCotter pin |
04111-4030A-000 |
from US $0.80 |
||
|
8
|
8
43241-85001-000 CAP,SPINDLE |
43241-85001-000 |
US $6.56 |
||
