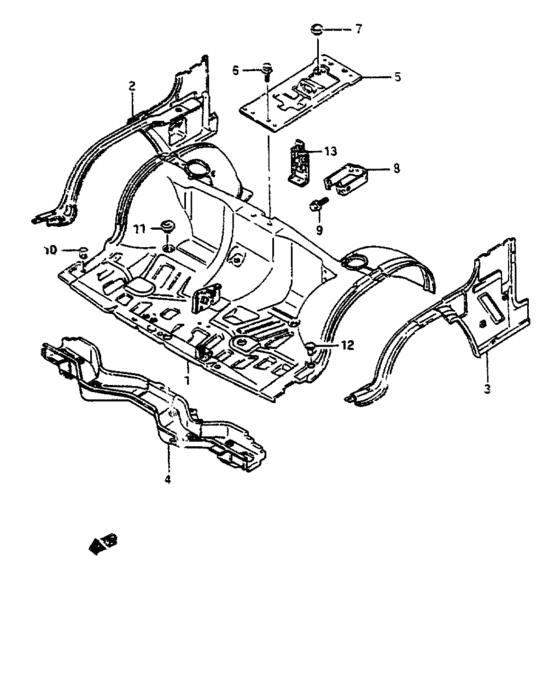

Front floor (FRONT FLOOR) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- transmission
- 5MT
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61100-67030-000
Panel assy, front floor
|
61100-67030-000 |
— | ||
|
2
|
2
61140-85721-000 LOCKER,FR FLOOR SIDE,R |
61140-85721-000 |
US $87.58 |
||
|
3
|
3
61150-85721-000
ロッカ,フロントフロアサイド,レフト
|
61150-85721-000 |
— | ||
| replacement | |||||
|
3
|
3
61150-85722-000 LOCKER,FR FLOOR SIDE,L |
61150-85722-000 |
US $95.76 |
||
|
4
|
4
59710-85230-000
クロスメンバ,フロア,フロント
|
59710-85230-000 |
— | ||
| replacement | |||||
|
4
|
4
59710-75D50-000
Crossmember comp,floor,front
|
59710-75D50-000 |
— | ||
|
5
|
5
75410-85200-000
Member, engine room center
|
75410-85200-000 |
— | ||
| replacements | |||||
|
5
|
5
09250-17001-000 CAP(OD:25.5) |
09250-17001-000 |
US $1.06 |
||
|
5
|
5
75410-85720-000
MEMBER,ENG ROOM CTR
|
75410-85720-000 |
— | ||
|
6
|
6
01517-06128-000
Bolt
|
01517-06128-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-06127-000 BOLTBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
7
|
7
09250-20002-000
キャップ,OD:30
|
09250-20002-000 |
— | ||
| replacements | |||||
|
7
|
7
09250-20009-000
CAP(OD:30)
|
09250-20009-000 |
— | ||
|
7
|
7
09250-20034-000 Cap(Od:30) |
09250-20034-000 |
US $11.40 |
||
|
8
|
8
75421-85000-000 BRACKET,JACK |
75421-85000-000 |
US $6.66 |
||
|
9
|
9
01114-06126-000
Bolt
|
01114-06126-000 |
— | ||
| replacement | |||||
|
9
|
9
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
10
|
10
09250-10005-000 CAP(OD:15) |
09250-10005-000 |
US $14.70 |
||
|
11
|
11
09250-30015-000
Cap
|
09250-30015-000 |
— | ||
| replacement | |||||
|
11
|
11
72999-67H00-000 CAP,OD:40 |
72999-67H00-000 |
from US $4.32 |
||
|
12
|
12
09250-10017-000 PLUG(OD:22) |
09250-10017-000 |
US $17.70 |
||
|
13
|
13
59920-85741-000
Bracket, canister
|
59920-85741-000 |
— | ||
| replacement | |||||
|
13
|
13
59920-65C00-000 BRACKET,CANISTER |
59920-65C00-000 |
US $16.38 |
||
