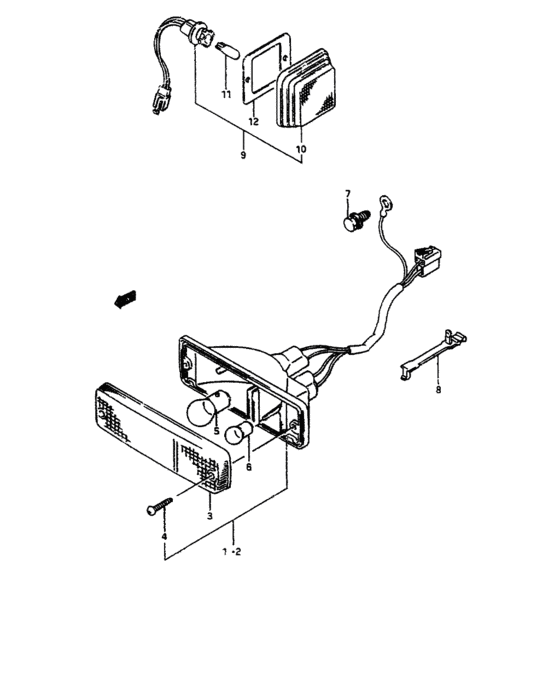

Front lamp (FRONT LAMP) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- transmission
- 5MT
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35601-60C10-000
Lamp assy, combination rh
|
35601-60C10-000 |
— | ||
| replacement | |||||
|
1
|
1
35601-81020-000 LAMP ASSY,FR COMB,R |
35601-81020-000 |
US $68 |
||
|
2
|
2
35602-60C10-000
Lamp assy, combination lh
|
35602-60C10-000 |
— | ||
| replacement | |||||
|
2
|
2
35602-81020-000 LAMP ASSY,FR COMB,L |
35602-81020-000 |
US $61.60 |
||
|
3
|
3
35612-81010-000 LENS |
35612-81010-000 |
US $6.08 |
||
|
4
|
4
03512-04259-000
スクリュ
|
03512-04259-000 |
— | ||
| replacement | |||||
|
4
|
4
03511-0425A-000 SCREW |
03511-0425A-000 |
US $9.90 |
||
|
5
|
5
09471-12045-000 BULB(12V21W) |
09471-12045-000 |
from US $2.54 |
||
|
6
|
6
09471-12140-000 BULB(12V5W) |
09471-12140-000 |
from US $2.03 |
||
|
7
|
7
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
7
|
7
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
8
|
8
09407-07401-000
CLAMP(L:55)
|
09407-07401-000 |
— | ||
| replacement | |||||
|
8
|
8
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
9
|
9
36410-85010-000
LAMP ASSY,SIDE TURN SIG
|
36410-85010-000 |
— | ||
|
10
|
10
36420-85010-000
Unit, turn signal lamp
|
36420-85010-000 |
— | ||
|
11
|
11
09471-12081-000
Bulb (12v,5w)
|
09471-12081-000 |
— | ||
| replacement | |||||
|
11
|
11
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $2.84 |
||
|
12
|
12
36413-85000-000
ガスケット,ベース
|
36413-85000-000 |
— | ||
