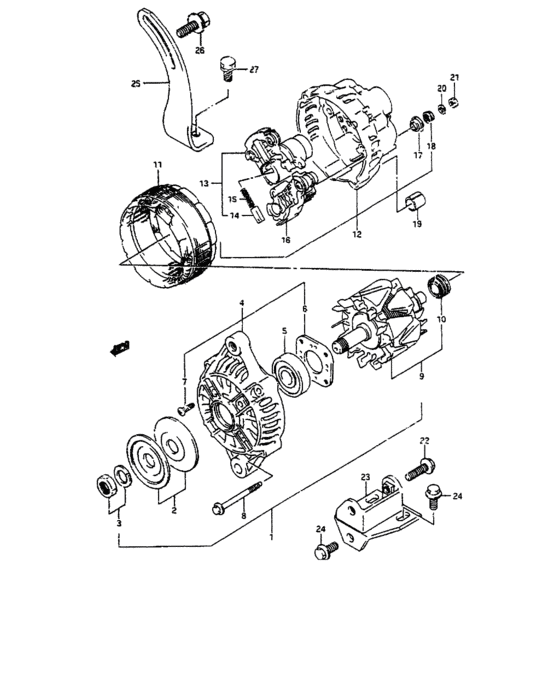

Generator (GENERATOR) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- transmission
- 5MT
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31400-60C10-000
ジェネレータアッシ
|
31400-60C10-000 |
— | ||
| replacements | |||||
|
1
|
1
31400-60C13-000
GENERATOR ASSY
|
31400-60C13-000 |
— | ||
|
1
|
1
31400-60C14-000 Generator Assy |
31400-60C14-000 |
US $436.48 |
||
|
2
|
2
31171-82131-000 PULLEY |
31171-82131-000 |
US $17.37 |
||
|
3
|
3
31775-70030-000
ナットアッシ
|
31775-70030-000 |
— | ||
| replacements | |||||
|
3
|
3
31775-50F20-000 NUT |
31775-50F20-000 |
US $2.72 |
||
|
3
|
3
31775-60C10-000 NUT,PULLEY |
31775-60C10-000 |
US $4.31 |
||
|
4
|
4
31580-60C10-000
ブラケットアッシ,フロント
|
31580-60C10-000 |
— | ||
|
5
|
5
31582-60A21-000 BEARING |
31582-60A21-000 |
US $48.21 |
||
|
6
|
6
31585-60A10-000 RETAINER,BEARING |
31585-60A10-000 |
US $6.66 |
||
|
7
|
7
31586-60A10-000 SCREW SET |
31586-60A10-000 |
US $5.56 |
||
|
8
|
8
31651-86520-000 SCREW SET |
31651-86520-000 |
US $5.78 |
||
|
9
|
9
31710-60A10-000
ROTOR ASSY
|
31710-60A10-000 |
— | ||
|
10
|
10
31612-60A10-000
Bearing,rr
|
31612-60A10-000 |
— | ||
| replacement | |||||
|
10
|
10
31612-60A11-000 BEARING,REAR |
31612-60A11-000 |
US $24 |
||
|
11
|
11
31410-85320-000 STATOR ASSY |
31410-85320-000 |
US $364.32 |
||
|
12
|
12
31611-60C10-000
ハウジングアッシ,リヤ
|
31611-60C10-000 |
— | ||
|
13
|
13
32500-60C10-000
レギュレータアッシ
|
32500-60C10-000 |
— | ||
|
14
|
14
31631-60A10-000
ブラシ
|
31631-60A10-000 |
— | ||
| replacement | |||||
|
14
|
14
31631-60F30-000 BRUSH SET |
31631-60F30-000 |
US $13.28 |
||
|
15
|
15
31653-86520-000
スプリング,ブラシ
|
31653-86520-000 |
— | ||
| replacement | |||||
|
15
|
15
31631-60F30-000 BRUSH SET |
31631-60F30-000 |
US $13.28 |
||
|
16
|
16
31621-60C10-000
レクチファイヤアッシ
|
31621-60C10-000 |
— | ||
|
17
|
17
31514-60C10-000
インシュレータ
|
31514-60C10-000 |
— | ||
| replacement | |||||
|
17
|
17
31514-82630-000 INSULATOR |
31514-82630-000 |
US $2.88 |
||
|
18
|
18
31456-86030-000
ナット
|
31456-86030-000 |
— | ||
| replacements | |||||
|
18
|
18
08316-1006A-000 NUT |
08316-1006A-000 |
from US $0.80 |
||
|
18
|
18
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
18
|
18
08319-31067-000 NUTNut, center |
08319-31067-000 |
from US $1.44 |
||
|
18
|
18
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
|
19
|
19
31616-82131-000 BUSH |
31616-82131-000 |
US $5.30 |
||
| replacement | |||||
|
19
|
19
31616-82C20-000 BUSH |
31616-82C20-000 |
US $4.97 |
||
|
20
|
20
08321-21067-000
Lock washer
|
08321-21067-000 |
— | ||
| replacement | |||||
|
20
|
20
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
21
|
21
08310-12066-000
Nut
|
08310-12066-000 |
— | ||
| replacements | |||||
|
21
|
21
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
21
|
21
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
22
|
22
01517-08306-000
Bolt
|
01517-08306-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
22
|
22
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
23
|
23
11550-79100-000 BRACKET |
11550-79100-000 |
US $14.56 |
||
|
24
|
24
01517-08163-000
Bolt 8 x 16
|
01517-08163-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
24
|
24
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
25
|
25
11561-85200-000 ARM,ADJUSTER |
11561-85200-000 |
US $14.08 |
||
|
26
|
26
09118-08057-000
ボルト,8X25
|
09118-08057-000 |
— | ||
| replacement | |||||
|
26
|
26
09118-08107-000 BOLT(8X25) |
09118-08107-000 |
US $1.12 |
||
|
27
|
27
01137-08203-000
Bolt, brace front
|
01137-08203-000 |
— | ||
| replacements | |||||
|
27
|
27
01570-0820B-000 Bolt |
01570-0820B-000 |
US $17.30 |
||
|
27
|
27
01570-0820A-000 BOLT |
01570-0820A-000 |
from US $0.96 |
||
