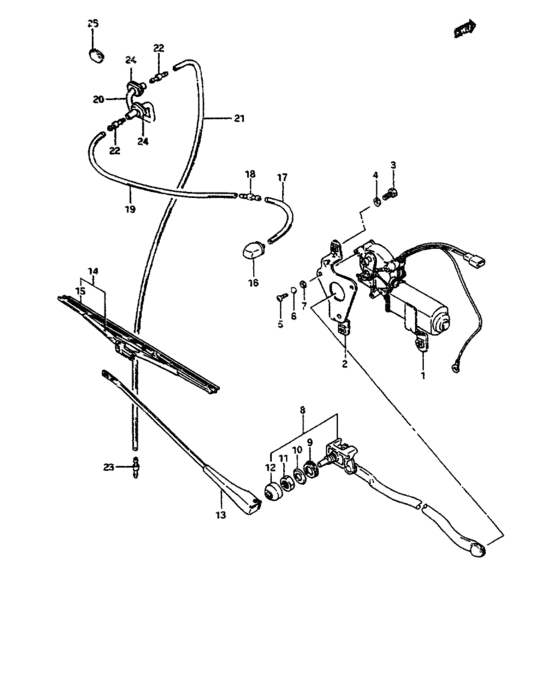

Rear window wiper and washer (TX) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- transmission
- 5MT
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38811-85500-000
MOTOR ASSY,RR WIPER
|
38811-85500-000 |
— | ||
|
2
|
2
38812-85500-000 BRACKET,WIPER |
38812-85500-000 |
US $23 |
||
|
3
|
3
01104-05088-000
Bolt
|
01104-05088-000 |
— | ||
| replacement | |||||
|
3
|
3
01500-05087-000 BOLT |
01500-05087-000 |
from US $11.40 |
||
|
4
|
4
08321-21057-000 Washer lockLock washer |
08321-21057-000 |
US $2.59 |
||
| replacement | |||||
|
4
|
4
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
5
|
5
02112-06128-000
Screw
|
02112-06128-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-06127-000 SCREW |
02112-06127-000 |
from US $0.76 |
||
|
6
|
6
08321-21067-000
Lock washer
|
08321-21067-000 |
— | ||
| replacement | |||||
|
6
|
6
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
7
|
7
08322-21067-000
Washer
|
08322-21067-000 |
— | ||
| replacement | |||||
|
7
|
7
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
8
|
8
38813-85500-000
Link assy,rear wiper
|
38813-85500-000 |
— | ||
|
9
|
9
38272-71310-000
パッキン
|
38272-71310-000 |
— | ||
| replacements | |||||
|
9
|
9
38272-82C00-000 PACKING,WIPER PIVOT |
38272-82C00-000 |
US $2.24 |
||
|
9
|
9
38271-82C00-000 WASHER,WIPER PIVOT |
38271-82C00-000 |
US $2.56 |
||
|
10
|
10
38271-71310-000
ワッシャ
|
38271-71310-000 |
— | ||
| replacements | |||||
|
10
|
10
38271-82C00-000 WASHER,WIPER PIVOT |
38271-82C00-000 |
US $2.56 |
||
|
10
|
10
38272-82C00-000 PACKING,WIPER PIVOT |
38272-82C00-000 |
US $2.24 |
||
|
11
|
11
38278-67011-000 NUT |
38278-67011-000 |
US $1.60 |
||
|
12
|
12
38274-78000-000 CAP |
38274-78000-000 |
US $1.76 |
||
|
13
|
13
38821-85500-000
Arm assy,rear wiper
|
38821-85500-000 |
— | ||
|
14
|
14
38340-71701-000
ブレードアッシ,ワイパ
|
38340-71701-000 |
— | ||
| replacement | |||||
|
14
|
14
38340-71B00-000 BLADE ASSY,WIPER |
38340-71B00-000 |
US $23.55 |
||
|
15
|
15
38346-71700-000
Blade
|
38346-71700-000 |
— | ||
|
16
|
16
38841-85500-000
NOZZLE ASSY,RR WASHER
|
38841-85500-000 |
— | ||
|
17
|
17
38491-61010-000
Hose, washer
|
38491-61010-000 |
— | ||
| replacement | |||||
|
17
|
17
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) |
38491-61A00-000 |
US $5.12 |
||
|
18
|
18
38833-79500-000
バルブ
|
38833-79500-000 |
— | ||
| replacement | |||||
|
18
|
18
38496-61A00-000 VALVE,CHECK |
38496-61A00-000 |
from US $1.71 |
||
|
19
|
19
38492-85500-000
ホース
|
38492-85500-000 |
— | ||
| replacement | |||||
|
19
|
19
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) |
38491-61A00-000 |
US $5.12 |
||
|
20
|
20
38835-85500-000
ホース
HIGH ROOF |
38835-85500-000 |
— | ||
|
20
|
20
38835-85510-000
Hose, washer
STD ROOF |
38835-85510-000 |
— | ||
|
21
|
21
38491-85500-000
Hose, washer
HIGH ROOF |
38491-85500-000 |
— | ||
| replacement | |||||
|
21
|
21
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) HIGH ROOF |
38491-61A00-000 |
US $5.12 |
||
|
21
|
21
38491-52010-000
Hose, washer
STD ROOF |
38491-52010-000 |
— | ||
| replacement | |||||
|
21
|
21
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) STD ROOF |
38491-61A00-000 |
US $5.12 |
||
|
22
|
22
38838-82000-000 CONNECTOR |
38838-82000-000 |
US $1.32 |
||
|
23
|
23
38496-66010-000
コネクタ
|
38496-66010-000 |
— | ||
| replacement | |||||
|
23
|
23
38496-56B00-000 CONNECTOR |
38496-56B00-000 |
from US $1.60 |
||
|
24
|
24
38839-82000-000 GROMMET |
38839-82000-000 |
US $8.83 |
||
|
25
|
25
09250-20017-000 PLUG(OD:20)Plug, lower cover N/REAR WIPER |
09250-20017-000 |
US $11.40 |
||
