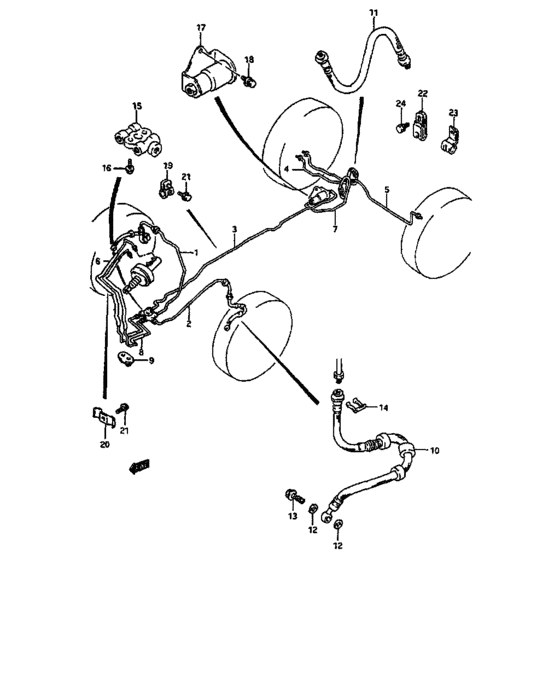

Bk pipe?? (, 0, 1, New Zealand, Philippines, Hong Kong, Saudi Arabia, Egypt, Vietnam) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51420-85400-000 PIPE,BRAKE NO.2 |
51420-85400-000 |
US $13.92 |
||
|
2
|
2
51430-85400-000 PIPE,BRAKE NO.3 |
51430-85400-000 |
US $15.20 |
||
|
3
|
3
51460-85230-000 PIPE,BRAKE 5WAY JOINT TO GPV |
51460-85230-000 |
US $20.98 |
||
|
3
|
3
51460-85730-000
Pipe,brake 5 way joint to gpv
|
51460-85730-000 |
— | ||
|
4
|
4
51470-85700-000 PIPE,RR BK HOSE TO WHL CYL |
51470-85700-000 |
US $11.37 |
||
|
5
|
5
51480-85700-000 PIPE,R BK ASSY TO L BK ASSY |
51480-85700-000 |
US $17.63 |
||
|
6
|
6
51510-85401-000
Pipe,brake no.12
RHD |
51510-85401-000 |
— | ||
|
6
|
6
51510-85700-000 PIPE,BRAKE NO.12LHD |
51510-85700-000 |
US $26.50 |
||
|
7
|
7
51350-85230-000 PIPE,BRAKE GPV TO REAR HOSE |
51350-85230-000 |
US $17.66 |
||
|
7
|
7
51350-85530-000 PIPE,BRAKE GPV TO REAR HOSE |
51350-85530-000 |
US $9.64 |
||
|
8
|
8
51410-85401-000
Pipe,brake no.1
RHD |
51410-85401-000 |
— | ||
|
8
|
8
51410-85700-000 PIPE,BRAKE NO.1LHD |
51410-85700-000 |
US $26.50 |
||
|
9
|
9
51751-85000-000 GROMMET,BRAKE PIPE |
51751-85000-000 |
US $2.24 |
||
|
10
|
10
51540-85752-000 HOSE,FR BRAKE FLEXIBLE |
51540-85752-000 |
US $54.10 |
||
|
11
|
11
51560-70F00-000 HOSE,RR BRAKE FLEXIBLE |
51560-70F00-000 |
US $29.99 |
||
|
12
|
12
09161-10009-000 WASHER(10X15X1.5)Lock washer |
09161-10009-000 |
from US $1.06 |
||
|
13
|
13
09360-10026-000 Union bolt |
09360-10026-000 |
US $2.08 |
||
|
14
|
14
09383-13001-000 E RING |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
14
|
14
09383-13003-000 E-RING |
09383-13003-000 |
from US $1.60 |
||
|
15
|
15
51640-85030-000 JOINT,5WAY BRAKE |
51640-85030-000 |
US $45.60 |
||
|
16
|
16
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
16
|
16
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
17
|
17
51940-85050-000
Valve assy, g.p.
|
51940-85050-000 |
— | ||
| replacement | |||||
|
17
|
17
51940-85051-000
VALVE ASSY,G.P.
|
51940-85051-000 |
— | ||
|
17
|
17
51940-85151-000
VALVE ASSY,G.P.
|
51940-85151-000 |
— | ||
|
18
|
18
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
18
|
18
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
18
|
18
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
19
|
19
09403-06401-000 CLAMP |
09403-06401-000 |
from US $2.08 |
||
|
20
|
20
09403-07312-000 CLAMP |
09403-07312-000 |
from US $0.90 |
||
|
21
|
21
09132-06006-000 SCREW(6X12) |
09132-06006-000 |
US $1.60 |
||
|
22
|
22
09403-06404-000 CLAMP |
09403-06404-000 |
US $2.72 |
||
|
23
|
23
09403-06407-000 CLAMP |
09403-06407-000 |
US $16.20 |
||
|
24
|
24
01570-06123-000
Bolt
|
01570-06123-000 |
— | ||
| replacements | |||||
|
24
|
24
01570-0612B-000 BOLTBolt, upper |
01570-0612B-000 |
US $0.80 |
||
|
24
|
24
01570-0612A-000 BOLTBolt |
01570-0612A-000 |
from US $0.80 |
||
