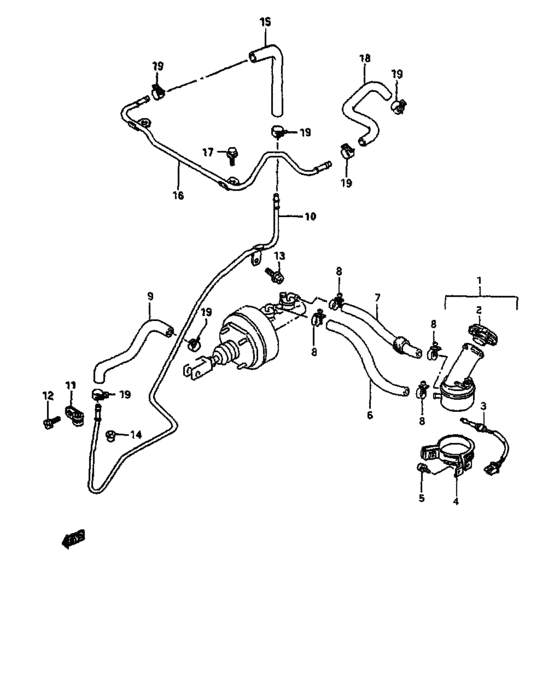

Bk reservoir (LHD) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51200-85600-000 RESERVOIR ASSY,BRAKE MASTER |
51200-85600-000 |
US $59.62 |
||
|
2
|
2
51220-79210-000
キャップ,リザーバ
|
51220-79210-000 |
— | ||
| replacement | |||||
|
2
|
2
51220-77M00-000 CAP,RESERVOIR |
51220-77M00-000 |
from US $17.89 |
||
|
3
|
3
51212-85010-000 SWITCH,CYLINDER RSVR |
51212-85010-000 |
US $31.65 |
||
|
4
|
4
51250-85100-000 BRACKET,BRAKE RESERVOIR |
51250-85100-000 |
US $9.20 |
||
|
5
|
5
02112-36203-000
Screw
|
02112-36203-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-3620A-000 SCREW |
02112-3620A-000 |
from US $0.80 |
||
|
6
|
6
51241-85X50-000 HOSE,BRAKE RESERVOIRL:1000->240 |
51241-85X50-000 |
from US $20.61 |
||
|
7
|
7
51242-85330-000 HOSE,BRAKE RESERVOIR SECONDARY |
51242-85330-000 |
US $6.15 |
||
|
8
|
8
09400-15303-000 CLAMP |
09400-15303-000 |
US $17.30 |
||
|
9
|
9
51010-85251-000 HOSE,BRAKE VACUUM NO.1 |
51010-85251-000 |
US $24.29 |
||
|
10
|
10
51380-85200-000 PIPE,BRAKE VACUUM NO.1 |
51380-85200-000 |
US $36.43 |
||
|
11
|
11
51252-85400-000 CLAMP,VACUUM PIPE |
51252-85400-000 |
US $2.98 |
||
|
12
|
12
09128-08005-000 BOLT(8X11) |
09128-08005-000 |
US $9.20 |
||
|
13
|
13
09132-06006-000 SCREW(6X12) |
09132-06006-000 |
US $1.60 |
||
|
14
|
14
09308-09016-000 GROMMET |
09308-09016-000 |
US $23.90 |
||
|
15
|
15
51020-85061-000 HOSE,BRAKE VACUUM |
51020-85061-000 |
US $40.11 |
||
|
16
|
16
51380-85210-000 PIPE,BRAKE VACUUM NO.2 |
51380-85210-000 |
US $34.04 |
||
|
17
|
17
01570-06123-000
Bolt
|
01570-06123-000 |
— | ||
| replacements | |||||
|
17
|
17
01570-0612B-000 BOLTBolt, upper |
01570-0612B-000 |
US $0.80 |
||
|
17
|
17
01570-0612A-000 BOLTBolt |
01570-0612A-000 |
from US $0.80 |
||
|
18
|
18
51030-85051-000 HOSE,BRAKE VACUUM NO.3 |
51030-85051-000 |
US $26.40 |
||
|
19
|
19
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.06 |
||
